PCIEcan 4xHS

High speed CAN network card with 4 high speed CAN channels
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
* NA
Discontinued product
Please contact us for availability or replacement options


  • CAN FD ready
  • Supports High Speed CAN (ISO 11898-2)
  • Low profile card (86 x 69 mm) allows ultra-compact systems
  • Wide operating temperature of 0°C to +85°C

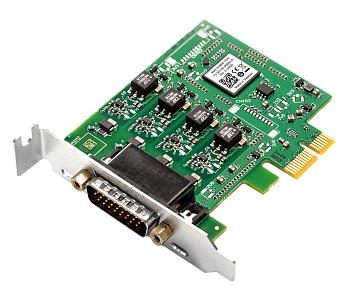

Kvaser PCIEcan 4xHS is a highly integrated, high speed CAN network card that adds four high speed controller area network (CAN) channels to any standard computer board with PCI Express capability. Offering silent mode, error frame detection and an on-board buffer, this small form factor add-on board fits many embedded data acquisition systems and is CAN-FD ready.

Features:
  • CAN FD ready
  • Quick and easy plug-and-play installation
  • Supports High Speed CAN (ISO 11898-2)
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Low profile card (86×69mm) allows ultra-compact systems
  • Implements Kvaser's CAN IP in an FPGA, resulting in high max message rate

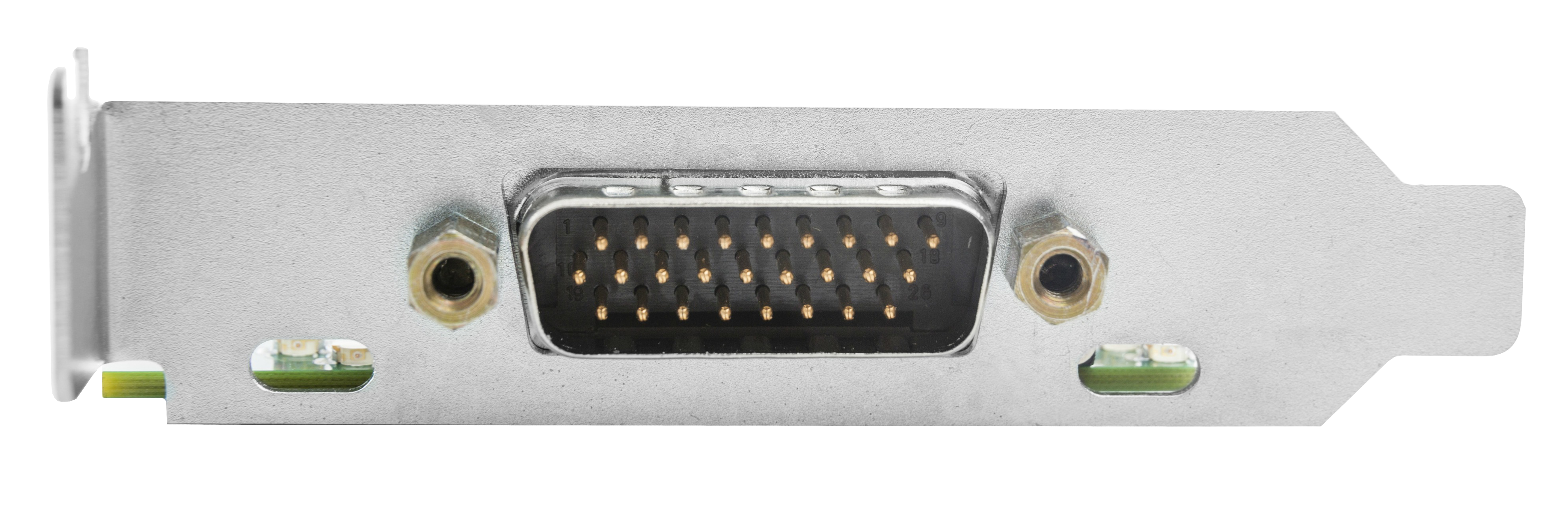

  • Four CAN Hi-Speed channels in a single 26-pin HDD-SUB CAN connector

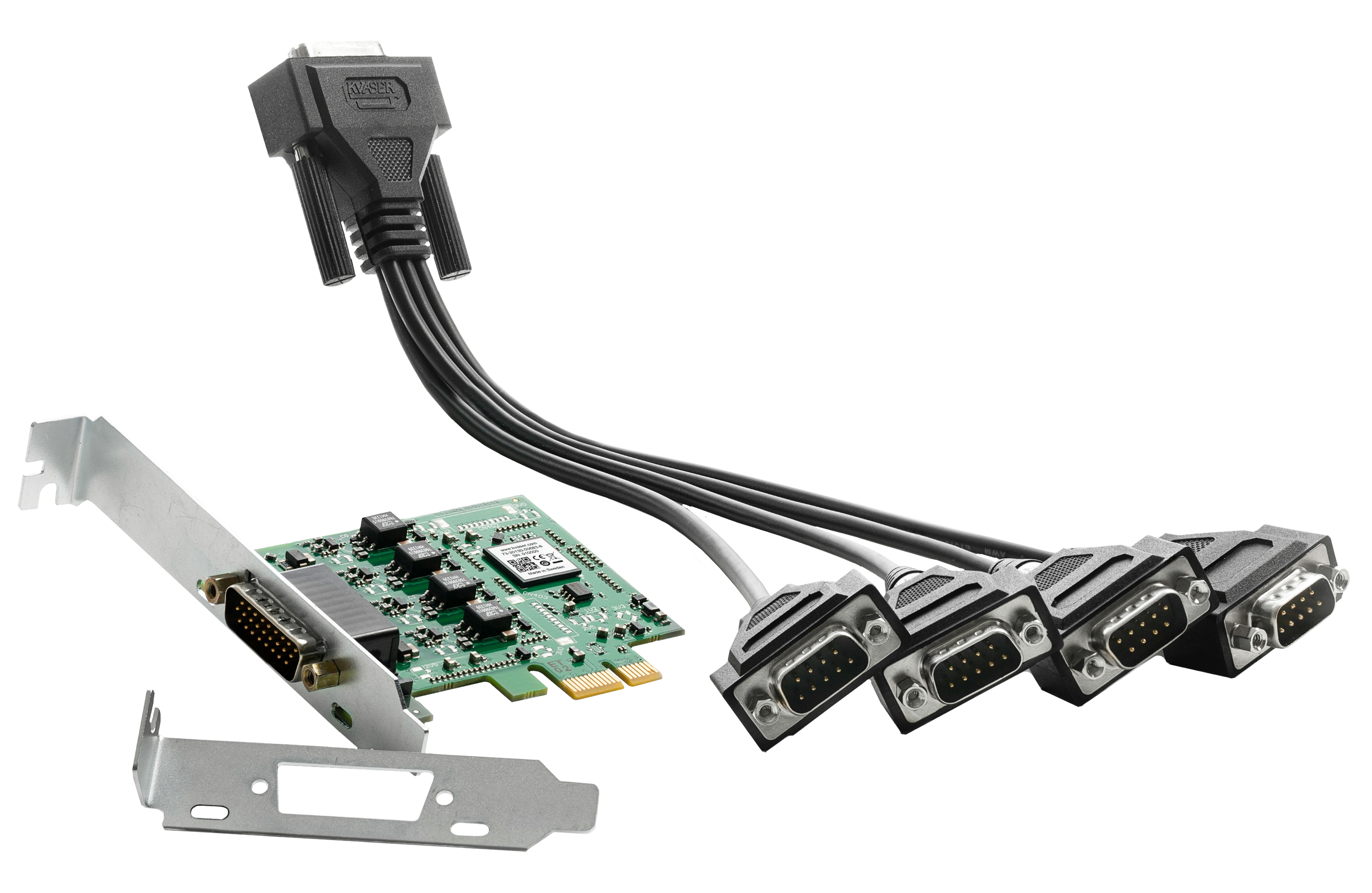

  • The HD26 splitter connects tothe CAN bus via four 9-pin DSUB connectors

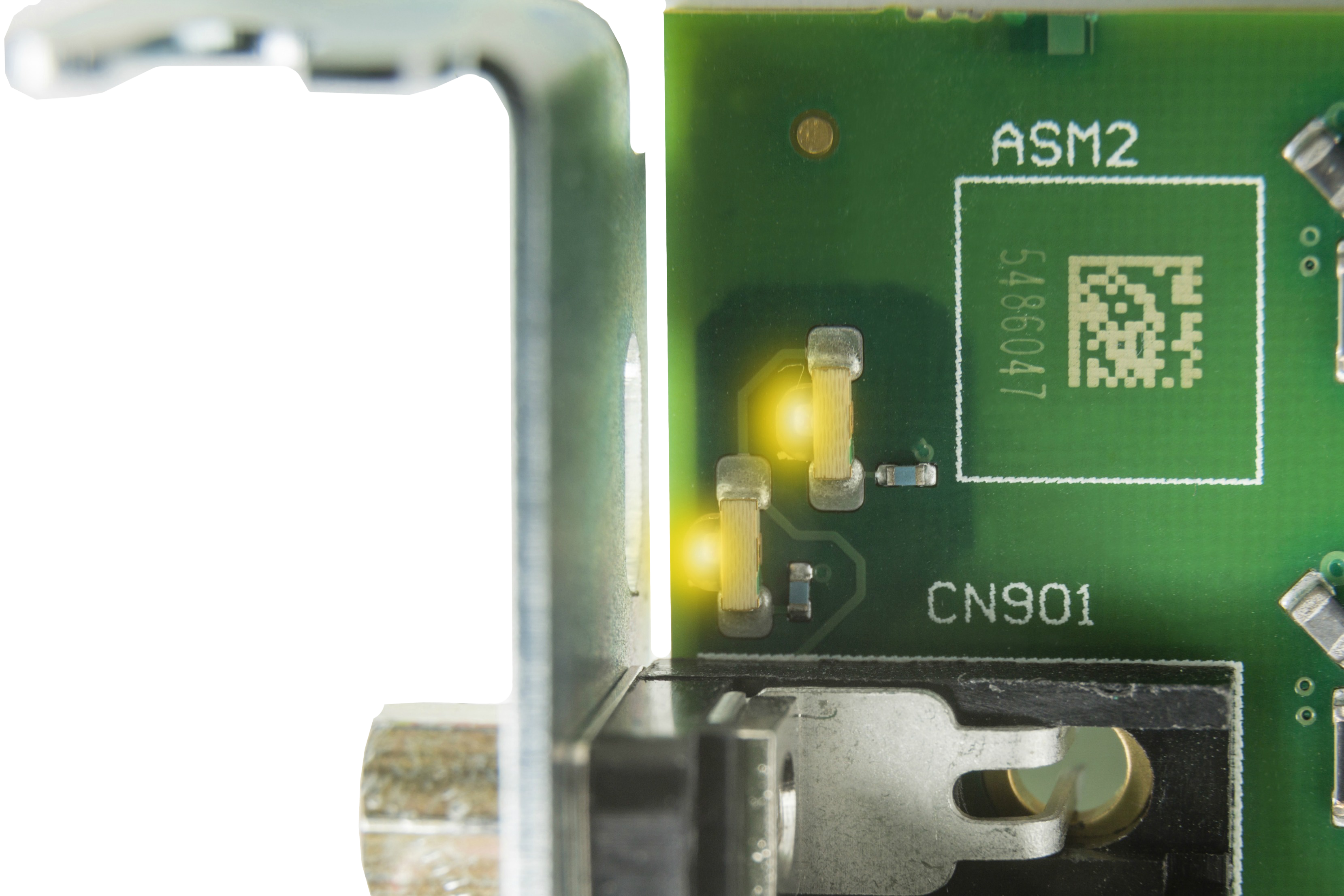

  • Four yellow LEDs that indicate when a CAN message was received orsent
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
  • Supports silent mode for analysis tools listens to the bus without interfering
  • Detection and generation of error frames and remote frames
  • Designed for standard and industrial computers
  • Galvanically isolated CAN bus drivers
  • Wide operating temperature of 0°C to +85°C
  • Supports the Kvaser Linx

Software:
  • Documentation, software and drivers can bedownloaded for free atwww.kvaser.com/downloads
  • Kvaser CANLIB SDK isafree resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic
  • All Kvaser CAN interface boards share acommon software API. Programs written for one interface type will run without modifications onthe other interface types!
  • J2534 Application Programming Interface available
  • RP1210A Application Programming Interface available
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format

Technical specifications
CategoriesCAN, Interfaces, PC Interfaces
Messages Per Second Receive20000 mps
Messages Per Second Sending20000 mps
Channels4
InterfacesPCI Express
ConnectorsDSUB 9
Length90 mm
Height20 mm
Weight100 g
OSLinux, Win Vista, Win 8, Win 7, DIAdem, Windows CE, Win XP, WindowsNT
Error Frame GenerationYes
Silent modeYes

Environmental and physical specifications

Temp range-40 - 85 °C
Galvanic IsolationYes
CertificatesRoHS
Model Description
73-30130-00683-6 Kvaser PCIEcan 4xHS
