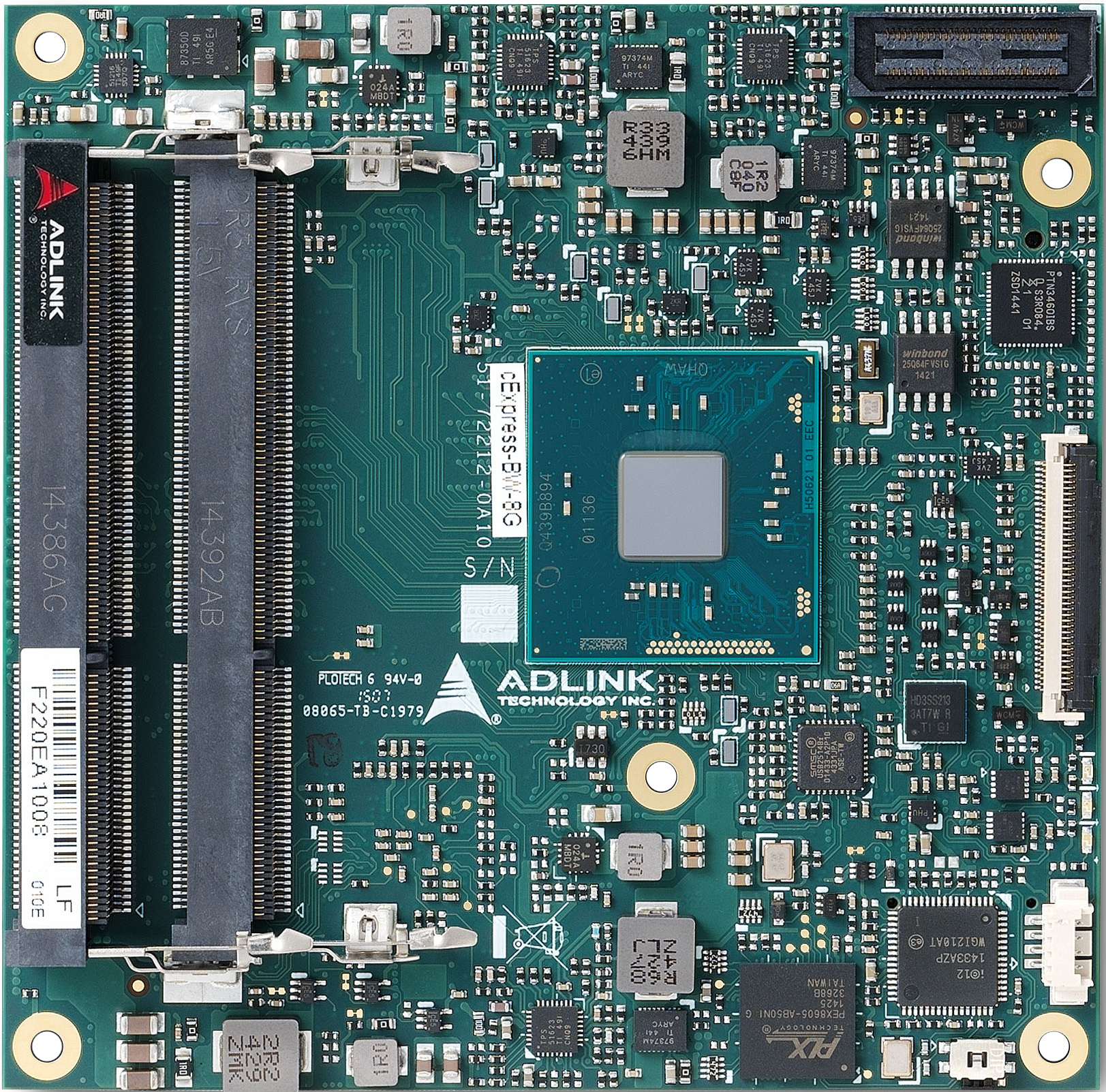

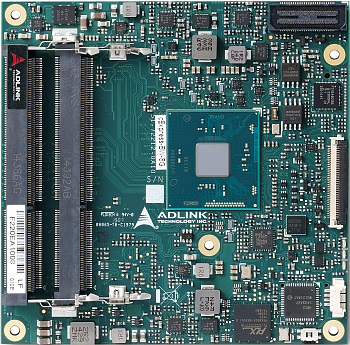

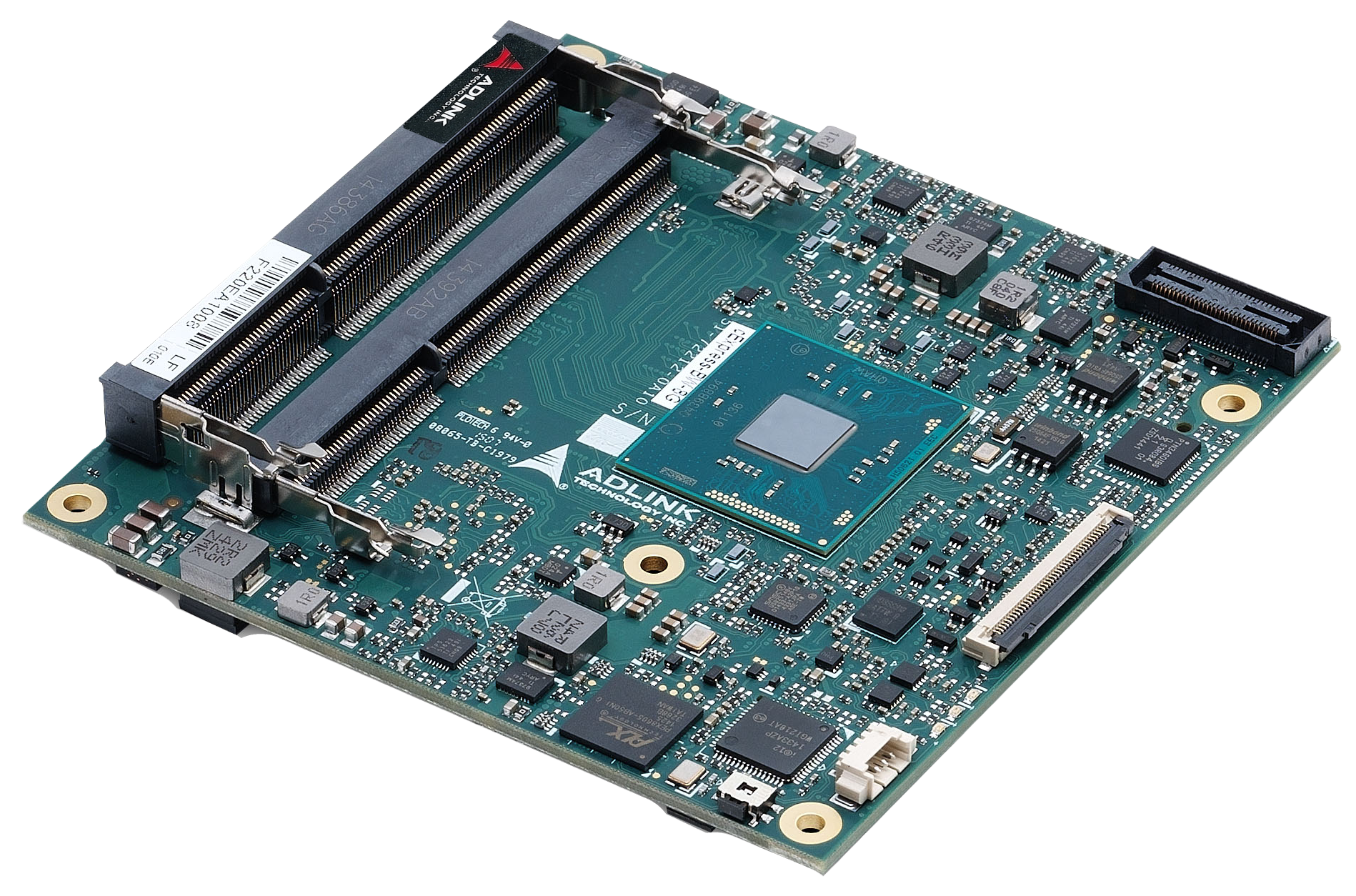

cExpress-BW

COM Express Compact Size Type 6 Module
  • Details
  • Specification
  • Order information
  • Intel Atom X5 E8000, Pentium N3710 and Celeron N3160/N3060/N3010 Series System-on-Chip (codename: Braswell)
  • Up to 8 GB dual channel DDR3L at 1600 MHz
  • GbE, three PCIe x1 (opt. five PCIe x1 with bridge)
  • Operating Temperature Standard: 0°C to 60°C

ADLINK cExpress-BW provides two DDI channels (with up to 4K resolution) and one LVDS or DDI3 channel supporting three independent displays, enabling it to drive multiple HD screens without the need for a discrete graphics card. In addition, Embedded DisplayPort (eDP) is optionally available to support next generation displays. The cExpress-BW also offers optional on-board SSD support and up to five PCI Express lanes x1. A wide range of operating systems are supported, including Linux, Windows 7 and 8.1u, Windows Embedded Standard 7, Windows Embedded Industry 8.1 and VxWorks.

The ADLINK cExpress-BW computer-on-module with built-in SEMA Cloud functionality is ready-made for Internet of Things (IoT) applications. The cExpress-BW is able to connect legacy industrial devices and other IoT systems to the cloud, extract raw data from these devices, determine which data to save locally and which to send to the cloud for further analysis. The results these analyses can provide valuable information for policy decision making and generate innovative business opportunities.

Technical specifications

Core System

CPU Dual or quad-core Intel® Pentium®, Celeron® N3000 Series and Atom™ SoC, 14nm process (formerly “Braswell”)
Intel® Pentium® N3710, 1.6/2.56 (Burst) GHz, 400/700 (Turbo), 6W (4C)
Intel® Celeron® N3160, 1.6/2.24 (Burst) GHz, 320/640 (Turbo), 6W (4C)
Intel® Celeron® N3060, 1.6/2.48 (Burst) GHz, 320/600 (Turbo), 6W (2C)
Intel® Celeron® N3010, 1.04/2.24 (Burst) GHz, 320/600 (Turbo), 4W (2C)
Intel® Atom™ X5-E8000, 1.04/2.0 (Burst) GHz, 320 (no Turbo), 5W (4C)
Memory Dual channel non-ECC 1600/1333 MHz DDR3L memory up to 8GB in dual SODIMM socket
Embedded BIOS AMI EFI with CMOS backup in 8MB SPI BIOS
Cache 2MB for Pentium®, Celeron® and Atom™
Expansion Busses 3x PCIe x1: Lanes 0/1/2 (build option 5x PCIe x1 with bridge), LPC bus, SMBus (system), I2C (user)
SEMA Board Controller Supports: Voltage/Current monitoring, Power Sequence debug support, AT/ATX mode control, Logistics and Forensic information, Flat Panel Control, General Purpose I2C, Failsafe BIOS (dual BIOS), Watchdog Timer and Fan Control
Debug Headers 40-pin multipurpose flat cable connector for DB-40 debug module providing BIOS POST code LEDs, BMC access, SPI BIOS flashing, power testpoints, debug LEDs
60-pin XDP header for ICE debug of CPU

Video

Supports 3 independent and simultaneous display combinations of DisplayPort/HDMI/eDP monitors (optional LVDS in place of eDP)
GPU Feature Support Encode/transcode of HD video content
Supports 3D rendering, media compositing and video encoding
Full hardware acceleration for decode of HEVC, H.264, SVC, VP8, VP9, MPEG4, AVS, H.263
Full hardware acceleration for encode of H.264, SVC, VP8, VP9, AVS, H.263
Supports content protection using PAVP2.0, HDCP 1.4/2.1 and Media Vault DRM
DirectX 11.1 support
OpenGL 4.2, ES 3.0 and OpenCL 1.2 support
Note: Availability of features dependent on operating system
LVDS/eDP eDP support (shared with DDI3)
Single/dual channel 18/24-bit LVDS (optional in place of eDP)
Digital Display Interface DDI1 supporting DisplayPort/HDMI
DDI2 supporting DisplayPort/HDMI
DDI3 supporting DisplayPort/HDMI (shared with LVDS/eDP BOM option)
Note: Only two simultaneous HDMI outputs supported.

Audio

Chipset Intel® HD Audio integrated in SoC
Audio Codec On Express-BASE6 carrier (ALC886 standard support)

Ethernet

MAC/PHY Intel® Ethernet Controller i211AT
Interface 10/100/1000 GbE connection

I/O Interfaces

USB 4x USB 1.1/2.0/3.0 (USB 0,1,2,3) and 4x USB 1.1/2.0 (USB 4,5,6,7, port 4-7 from USB hub)
SATA 2x SATA 6Gb/s (SATA0, SATA1)
Optional onboard SSD (8/16/32GB) in place of SATA1 port
Serial 2 UART ports COM 1/2 (COM 1 supports console redirection)
GPIO/SD 4 GPO and 4 GPI
SD muxed with GPIO, switched by BIOS setting
Super I/O Supported on carrier if needed (standard support for W83627DHG-P)

TPM (optional)

Chipset Atmel AT97SC3204
Type TPM 1.2

Power

Standard Input ATX: 12V±5%/5Vsb ±5%, or AT: 12V±5%
Wide Input ATX: 5-20 V/5Vsb ±5%, or AT: 5-20V
Management ACPI 5.0 compliant, Smart Battery support
Power States C1-C6, S0, S3, S4, S5 , S5 ECO mode (Wake on USB S3/S4, WOL S3/S4/S5)
ECO mode Supports deep S5 mode for power saving

Other

Form Factor PICMG COM.0 Rev 2.1 Type 6
Dimension Compact size: 95 mm x 95 mm
Operating Systems Standard Support: Windows 10 64-bit, Windows 7/8.1 32/64-bit, Linux 32/64-bit
Extended Support (BSP): WES7 32/64-bit, Linux 32/64-bit, VxWorks 32-bit

Environmental and physical specifications

Operating Temperature Standard: 0°C to 60°C
Humidity 5-90% RH operating, non-condensing
5-95% RH storage (and operating with conformal coating)
Shock and Vibration IEC 60068-2-64 and IEC-60068-2-27
MIL-STD-202F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D
HALT Thermal Stress, Vibration Stress, Thermal Shock and Combined Test
Model Description
cExpress-BW-N3710 COM Express Compact size Type 6 module with Intel Pentium N3710 at 1.6/2.56 (Burst) GHz
cExpress-BW-N3160 COM Express Compact size Type 6 module with Intel Celeron N3160 at 1.6/2.24 (Burst) GHz
cExpress-BW-N3060 COM Express Compact size Type 6 module with Intel Celeron N3060 at 1.6/2.48 (Burst) GHz
cExpress-BW-N3010 COM Express Compact size Type 6 module with Intel Celeron N3010 at 1.04/2.24 (Burst) GHz
cExpress‑BW‑x5‑E8000 COM Express Compact size Type 6 module with Intel Atom x5-E8000 at 1.04/2.0 (Burst) GHz
Accessory
HTS-cBW-B Heatspreader for cExpress-BW with threaded standoffs for bottom mounting
HTS-cBW-BT Heatspreader for cExpress-BW with through hole standoffs for top mounting
THS-cBW-B Low profile heatsink for cExpress-BW with threaded standoffs for bottom mounting
THS-cBW-BT Low profile heatsink for cExpress-BW with through hole standoffs for top mounting
THSH-cBW-B High profile heatsink for cExpress-BW with threaded standoffs for bottom mounting
THSF-cBW-B High profile heatsink with Fan for cExpress-BW with threaded standoffs for bottom mounting
Type 6 Starter Kit plus Starter kit for cExpress-BW
