PC104-T
16 bit AC termination modules for the PC/104 bus
Vendor:Tri-M Technologies Inc.
- Details
- Specification
- Order information
- Enhance signal quality on PC/104 bus
- Plugs onto any PC/104 or can be built into modules
- Highly compact: 3.55" x 1.15"
- Operating temperature: -40 to +85°C (all boards)
AC termination provides increased noise immunity for mobile PC/104 applications. Vehicle environments are notoriously noisy. EMI, voltage spikes, and other noise sources can interfere with proper bus operation and corrupt data transfers.

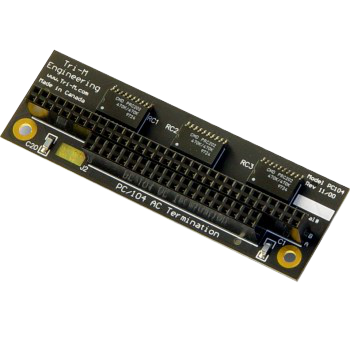

The AC termination board shown here plugs onto the end of the PC/104 stack to quiet the bus signals and increase system integrity more effectively than simple resistive termination. It can be used with any PC/104 system, with or without a PC/104 power supply module.
When ordering the HE104 power supply modules, order option-T, and the bus termination components will be mounted right on the circuit board module without taking up additional height on the PC/104 stack.
| Technical specifications | |
| Input voltage |
Plugs onto any PC/104 or installed onto modules PC/104 Bus Signal Terminated with 47R and 47P RC Network Signals are terminated with discrete components: TC C1 (330pF), Reset C20 (330pF) |
| Dimensions | 3.550" x 1.15" |
| Weight | 28.15g |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | -40°C to +85°C (-40°F to 185°F) (all boards) |
| Operating humidity | 5% to 95% (non-condensing) |
| ROHS | Compliant |
| Model | Description |
| PC104‑T8‑PBF | 8-bit 'AC' bus termination, stackthrough |
| PC104‑T8‑NS‑PBF | 8-bit 'AC' bus termination, non-stackthrough |
| PC104‑T16‑PBF | 16-bit 'AC' bus termination, stackthrough |
| PC104‑T16‑NS‑PBF | 16-bit 'AC' bus termination, non-stackthrough |
