Onyx-MM-DIO

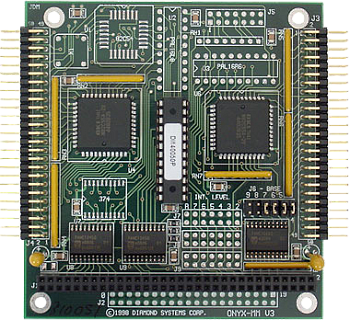

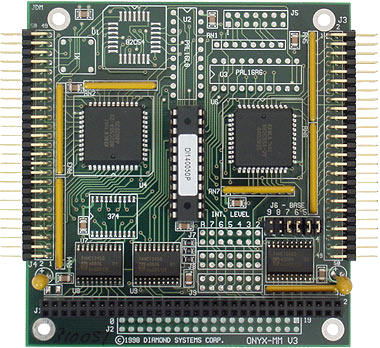

Low-Cost 48-Line Digital I/O PC/104 Module
  • Details
  • 48 digital I/O lines
  • Programmable port directions
  • 10KΩ pull-up resistors on each line
  • Dual 50-pin I/O headers

If you are looking for a basic 48-line digital I/O PC/104 module, then Onyx-MM-DIO is what you need. This module is the same as our Onyx-MM digital & counter/timer module but without the counter/timer and interrupt circuitry. This board still has the quality and attention to detail of our other modules, such as: 10K Ohm pull-up resistors on all I/O lines; all ports reset to 0 on power-up or system reset; connector pinouts compatible with our other digital I/O boards; and free software.

The 48 digital I/O lines on Onyx-MM-DIO are based on 2 82C55 ICs. They can be programmed for input or output in groups of 8 lines. Direct as well as strobed (latched) I/O modes are supported, and all I/O lines are connected to 10K Ohm pull-up resistors.

  • Show more
