HE104

60W Rugged PC/104 Power Supply
  • Details
  • Specification
  • Order information
  • 6 to 40VDC input voltages
  • Outputs: +5V @ 12A, +12V @ 2.5A, -5V @ 0.4A, -12V @ 0.5A
  • Efficiency up to 95%
  • Operating temperature: -40°C to +85°C

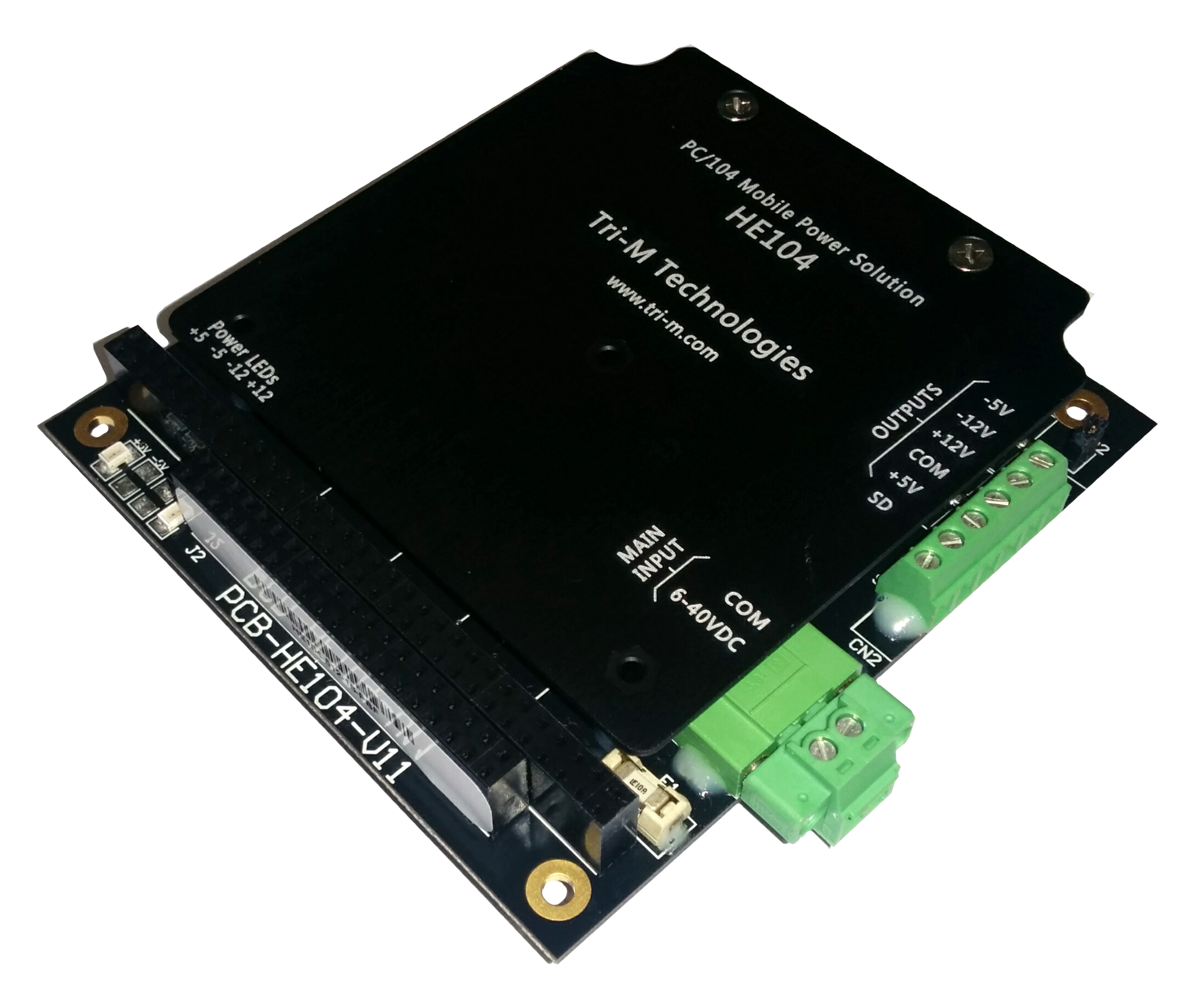

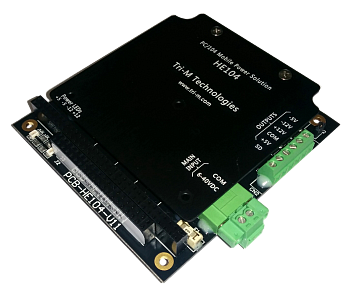

The HE104 is a high efficiency, high performance DC to DC 60 watt converter that supplies 5V, 12V, −12V (optional), −5V (optional) outputs. The HE104 is specifically designed for vehicular applications requiring low noise, has an ultrawide input range of 6-40V and is ideal for battery and unregulated input applications.

The input protection circuit includes an input filter, three heavy duty transient suppressors (5000W), Mosfet reverse polarity protection and an active circuit surge stopper with Mosfet.

The HE104 5V output is a synchronous buck regulator design that provides outstanding line and load regulation and ripple noise below 20mV. The low noise design makes the HE104 ideal for use on aircraft and military applications or wherever EMI or RFI must be minimized.

The HE104 12V output is a synchronous boost regulator that converts the 5V rail up to 12V. This allows the main input to range from a low of 6V up to 40V while maintaining both 5V and 12V output within their specified levels.

The HE104 has a opto-isolated on/off input (SD), allowing for remote signal between 6 and 40V to control the On/Off operation of the outputs. When jumper shunt JP2 is intalled (default) the outputs will automatically turn on when main power is applied to CN1.

The HE104 is PC/104 compliant with a 16-bit PC/104 bus. All generated voltages are provided to the auxilliary power connector block CN2. A removable main input power plug allows the HE104 to be easily installed.

Technical specifications
Input Voltage Range +6V to +40V DC
Output Voltages +5V @ 12A
+12V @ 2.5A
-5V @ 0.4A
-12V @ 0.5A
Output power Up to 60W
Load Regulation < 60mV
Line Regulation < 40mV
Output temp. drift < 40mV
Peak to Peak ripple <20mV
Output Ripple < 20mV
Efficiency Up to 95%
Form Factor: PC/104
Dimensions 90.17mm x 95.25mm x 15.24mm (3.55”W x 3.75”L x 0.6”H)
Weight: 6.08 oz/172.37 grams

Environmental and physical specifications

Operating Temperature: -40°C to +85°C (-40°F to 185°F)
Model Description
HE104‑512‑16‑PBF PC/104, In 6-40VDC, Out 60 Watt, +5V@12A, +12V@2.5A, (-40 to +85°C), PC/104 Bus
HE104-512-N-PBF PC/104, In 6-40VDC, Out 60 Watt, +5V@12A, +12V@2.5A, (-40 to +85°C), No Bus
CON-HE104-KIT Replacement Connector Kit for HE104 power supplies
