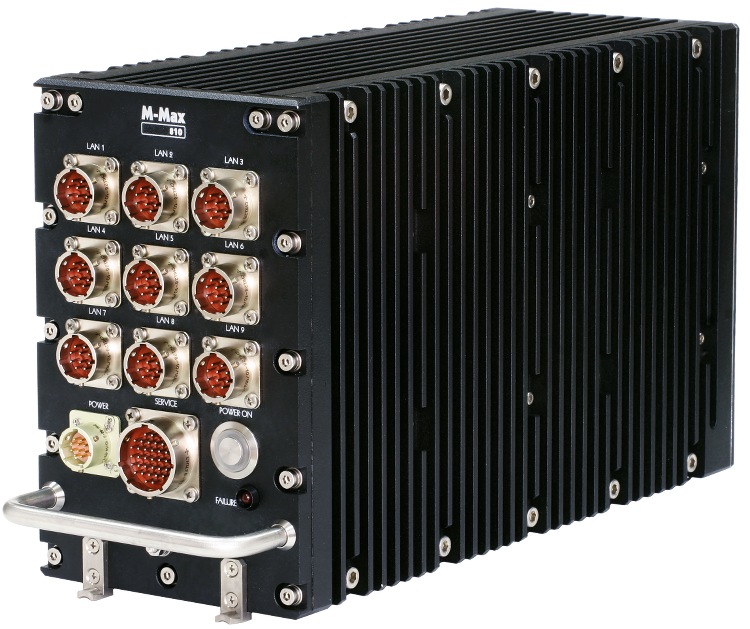

M-Max 810 EP2/MS3

Rugged ATR-system
  • Details
  • Specification
  • Intel Core i7
  • Shock up to 40g, vibration up to 2.5g
  • IP65 rated
  • Operating temperature from -40 to +65 °C

M-Max 810 EP2/MS3 is a high-performance rugged industrial computer based on Intel Core i7 CPU. It is designed to provide reliable operation in harsh environments for critical applications such as transportation (ground, air and marine). The fully-ruggedized ATR-type aluminum chassis is fanless and uses natural convection and conduction cooling in accordance with MIL-STD-810 standards.

This unique fanless ATR enclosure is especially designed to house PC/104 form-factor boards. The possibility of using COTS components makes it easy to configure the system to fit the specific technical requirements of the customer. Providing shock and vibration protection, the M-Max 810 EP2/MS3 can operate under extreme temperatures (-40..+65 °C), dust, and humidity.

Delivering excellent performance thanks to Intel Core i7 CPU, it also features excellent graphics capabilities via integrated Intel HD Graphics 4000 controller. Storage system consists of industrial SSDs with RAID functionality (hardware and software).

MicroMax, as a manufacturer of industrial computers, takes a customized approach to each client and is able to develop and produce even one-off systems.

  • Show more
Technical specifications
CPU Intel Core i7-3517UE (1,7-2,8 GHz, 4 MB L3 cache)
Chipset Mobile Intel QM67 Express
RAM 2 GB DDR3 1600 MHz (soldered on board)
Expandable to 4 GB at the time of order
Data storage SSD up to 1 TB
Optional 2x SSD as RAID0/1
Video Integrated controller: Intel HD Graphics 4000, MPEG2 hardware coding and JPEG & MPEG decoding
Supports analog displays with resolution up to 2048 x 1536 @ 75 Hz
Connectors 1x ONC-BS-2-10 (Power)
9x SNC28-10 (Ethernet)
Optional: Ceelok FAS-T
1x SNC-28-32 (VGA, 2x USB 2.0, RS-232)
All connectors are IP66 or higher
LAN 2x 10/100/1000 Base-T
7x 10/100 Base-T
Optional: 9x 10/100/1000Base-T
Serial ports 1x (2x) RS232
USB 2x USB 2.0
Keyboard and mouse USB
Special features Watchdog timer
Power +9 to +33 V DC (isolated)
AC adapter ~100 to 240 V (optional)
Power Consumption 30 W
Indication Power ON & Failure indicators
Controls Power ON button
Enclosure Aluminum enclosure
Passive cooling system (no fans)
Mechanical (W x H x L) 124 x 198 x 358 mm
Environmental and physical specifications
Operating Temperature -40 to +65 °C, Complies with MIL-STD-810G (High temp. method 501.5, A1; Low temp. method 502.5, C1, Expandable to C2/C3)
Humidity Operating: 5 to 95 % at +25 °C, non-condensing
Vibration Operating acceleration amplitude up to 2.5g, Complies with MIL-STD-810G (Method 514.6 for Ground vehicles and Aircraft)
Shock Maximum peak shock acceleration up to 40g (15 ms), Complies with MIL-STD-810G (Method 516.6 for Ground equipment and Aircraft)
Dust/Moisture IP65
