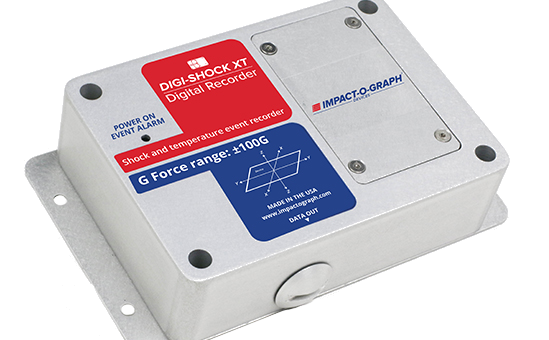

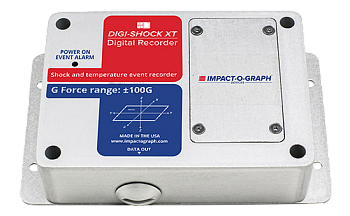

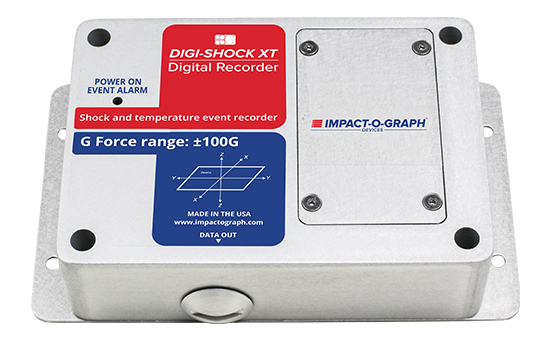

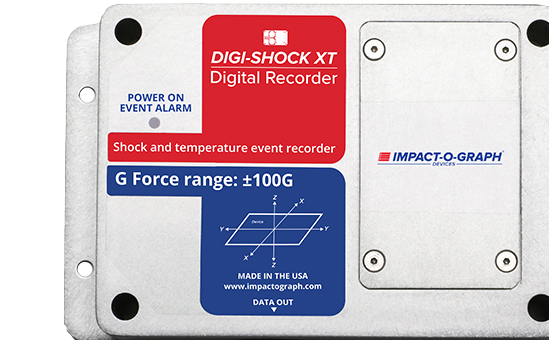

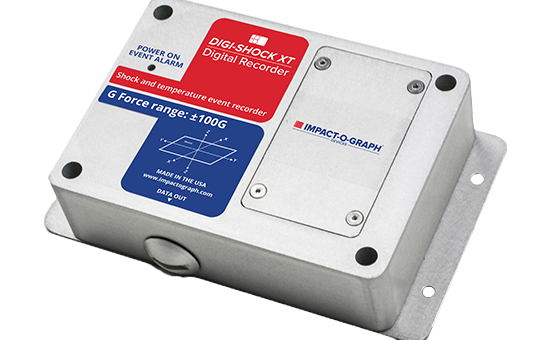

Digi-Shock XT

Impact & Temperature Recorder
  • Details
  • Specification
  • Order information
  • ± 25g or ± 100g on the X, Y and Z axis lines
  • Battery Life (Lithium): 6 months
  • Flash memory capable of more than 1 million events. Retain data in event of power loss.
  • Aluminum case, IP 67. Operating Temperature: -40°F to 140°F

The Digi-Shock XT will monitor and record impact and temperature for goods in transit or storage and on equipment and structures. Records impacts up to 25g or up to 100g.* The XT is fully reusable, robust construction and IP67-specified.

mission control software (included) is easy-to-use and allows for quick and simple set-up of mission parameters. A mission summary provides the start and end date of the mission, highest and lowest temperature, with the largest impacts on each axis during a journey.

An LED visual indication displays when user defined alarm parameters are exceeded at any time, advising users that the monitored product may have been damaged and should be inspected immediately.

Features:

  • Fully reusable long-life device
  • Records X, Y and Z axes and temperature
  • User-defined alarm levels
  • LED for normal operation & alarm
  • Simple Windows based software for quick and easy set up and evaluation
  • Mission data can be e-mailed or downloaded directly into the software for evaluation
  • Software not required to retrieve encrypted data file at destination
  • 25g model has higher data resolution
  • Impact Duration (25g model only)
  • Functional update every 8 hours
  • Serialized identification for security
  • Complete data analysis of the transportation with acceleration values on all axes and temperature
  • Zoom feature for specific time slot evaluation
  • Data export and print capability
  • Heavy Duty aluminum IP67 specs
Mission Software:
  • Mission Summary provides the start and end date of the mission, plus the largest impacts on each axis during a journey.
  • Mission graphs provide a detailed report of each mission. This enables customers to view every single event during a journey.
  • An encrypted mission file can be downloaded and emailed without the software installed. Enables user to view the mission file (requires software) immediately without waiting for the device to be returned.
  • Mission Control software language in English, German, Spanish, Chinese and Portuguese.
  • Optional Parameters:
    Set start and stop for date and time of mission.
    Set alarm levels for each axis individually.
    Set Alarm Levels for both high and low temperatures.
    Set g level threshold for storing data (i.e. set at 3g to record 3g or higher events).
    Set delta level for temperature data storage.

*Device can be ordered with g force level up to 25g or up to 100g. The 25g provides higher data resolution.

Technical specifications
Power: A single C-Cell Lithium Primary 3.6v or USB cable. Automatic battery disconnect when USB cable is plugged in. Protection Circuit to prevent device damage if batteries are installed backwards
Battery Life: 6 months life (Lithium Ion Battery)
Memory: Retain data in event of power loss. Flash memory capable of more than 1 million events
Accelerometer: ±25g or ±100g on the X, Y, and Z axis lines. Samples 250 times per second
Temperature: Read 1/minute
Connectivity: Standard A-B USB cable for connection to a PC computer. No special cable required to retrieve data. Encrypted data file can be emailed directly back to sender for review
Status: High Efficiency LED provides device status in real time
Dimensions: 5 ⅛" x 3 ⅝" x 1 ⅜" aluminum case
Weight: 1.4 lbs. with battery installed
Optional: Metal mounting plate,
replacement lithium battery,
waterproof pelican case and
magnetic mount plate

Environmental and physical specifications

Operating Temperature: -40°F to 140°F (battery operating range).
Certification: TUV, CE & CB
Model Description
1700-100XT Digi-Shock XT Impact & Temperature Recorder, 100g
1700-25XT Digi-Shock XT Impact & Temperature Recorder, 25g
