All-in-One CAN to Cloud datalogging solution
ODOS Vendor:
  • Details
  • Specification
  • Order information
  • Rugged waterproof (IP67) field deployable enclosure
  • Native Kvaser Leaf Interface and API
  • Real-time CAN data streaming over 4G to Cloud data storage
  • GPS tracking and 3-axis Accelerometer

ODOSOLUTIONS AB (ODOS) and Kvaser AB have brought together a fresh perspective, unique collaboration, and advanced technology, in order to deliver next generation cloud connectivity and data logging for CAN (controller area network).

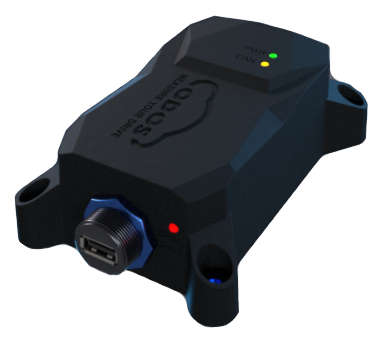

ODOS’ CloudCommander is a 4G-enabled data logger that integrates Kvaser’s well-known CAN interface hardware. ODOS’ Cloudsoft software platform, plus dashboard makes this a comprehensive CAN-to-Cloud data logging solution.

CloudCommander Features
The CloudCommander data logger combines the scale of Kvaser’s most popular CAN interface — the Kvaser Leaf Light — with the power of ODOS’ industry leading IoT Cloud Platform, to bring you a comprehensive CAN-to-Cloud datalogging solution:
  • Real-time CAN data streaming over 4G cellular connectivity to Cloud data storage
  • GPS tracking and 3-axis Accelerometer
  • Onboard UPS and memory buffer in the event of power and cellular connectivity outages
  • Native Kvaser Leaf (CANlib SDK) Interface and API
  • Rugged waterproof (IP67) field deployable enclosure with secure mounting location
CloudSoft Features
The tight vertical integration with award-winning CloudSoft platform and dashboard offers:
  • Remote real-time CAN data monitoring and analysis software
  • Over-The-Air (OTA) data-logger configuration updates
  • OTA Diagnostic Protocols on CAN (OBD2 & UDS)
  • Event based triggering to stream data, capture CAN traces and email alerts/reports
  • Virtual calculated CAN channels
  • Distributed team collaboration and data sharing platform
  • Plugins and REST API service
  • ASAM file formats
  • Certified to the most rigorous IT security and privacy (GDPR) legislation

What’s more, the CloudCommander incorporates a Kvaser USB-CAN interface to support your existing PC Applications whilst simultaneously streaming data to the cloud for remote fleet monitoring and diagnostics support.

Technical specifications
CAN 1x CAN 2.0B Kvaser Leaf Light
USB 1x USB 2.0 supporting Kvaser API
SIM 1x EU / US / Asia
Modem LTE cat4
GPS Ublox M8030-KT GPS/A-GPS
Accelerometer 3 axis
Processor Arm Cortex
RAM 256 MB
Onboard Flash 512 MB
Device Key Management, Secure Boot, Vehicle Bus Firewall
System CISCO Certified, GDPR
Measures 60.5 x 26.5 x 49.5 mm / 2.4 x 1 x 1.9 inch
Weight 0.5 kg / 1.1 lbs
Connectors USB Type-A (female) and DB9 (male)
Cables IP67 1x USB 0.5m / 19.7 inch and 1x CAN 0.3m / 11.8 inch
LEDs 1x CAN Power (Green), 1x CAN Comms (Amber), 1x Cloud Comms (Red)
Cloud Dashboard Visualization and Analysis
Configuration Remote Configuration of data logger
Data File Formats MAT, CSV, MDF4, MDF3, ASC
Plugin library CAN Monitoring, UDS, J1939, Calc, OBD2, Routing, Acc..
Data Pipeline AWS S3,Google Cloud,Azure, S-FTP, REST API
Alerts and Notification Center Mail Alerts, Dashboard, API
Administration Create Users

Environmental and physical specifications

IP rating IP67
Model Description
CC-1001 EU/CC-1001 US CloudCommander
