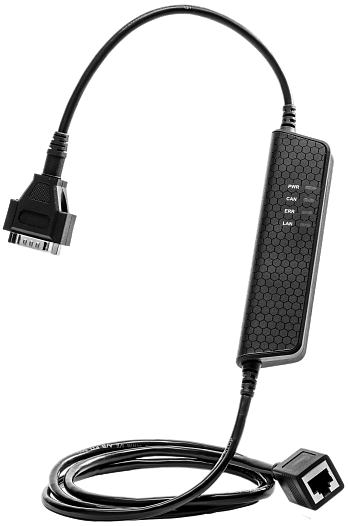

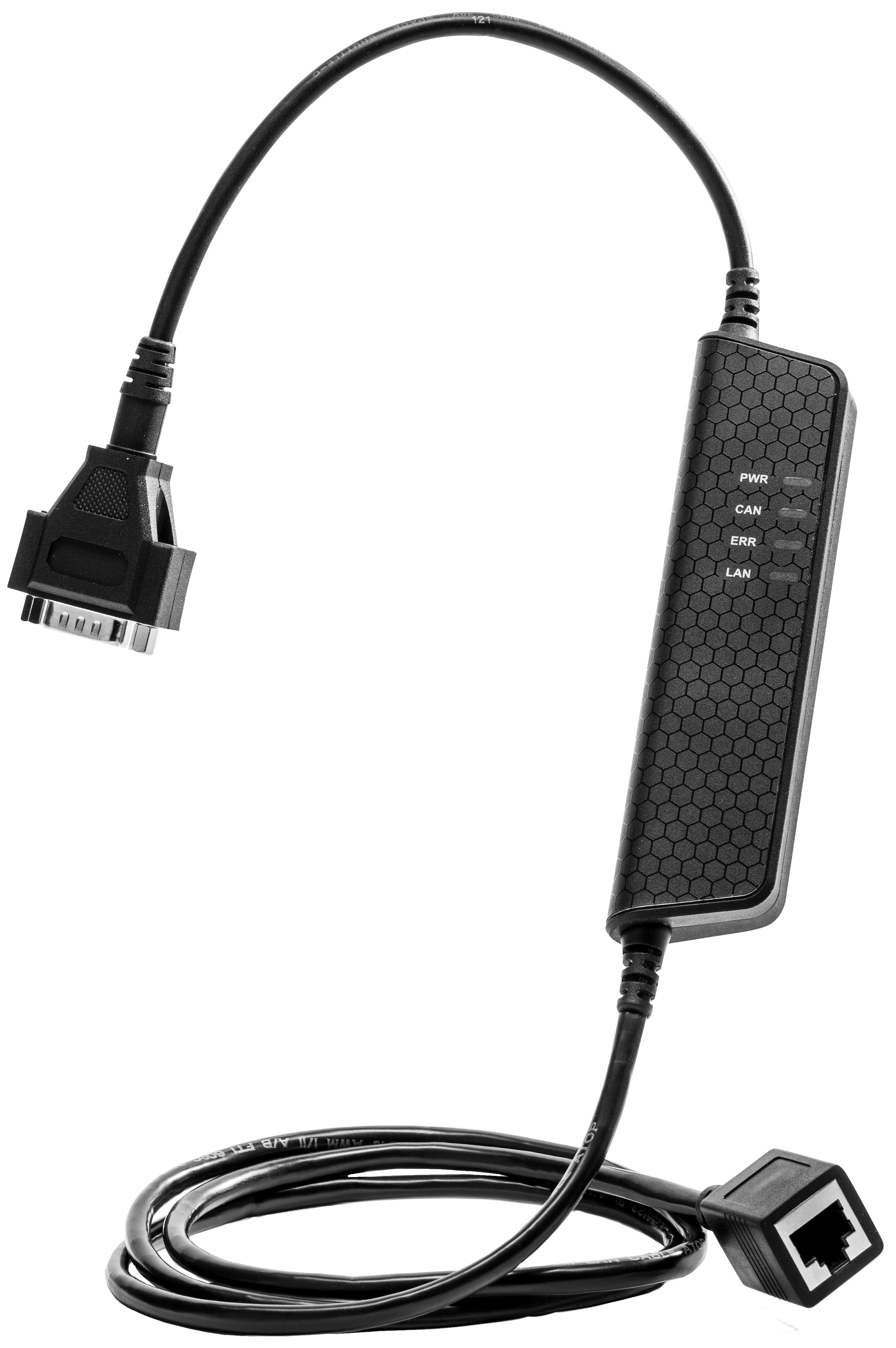

Ethercan HS

Powerful, real-time Ethernet to CAN interface
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • Channels: 1
  • Bitrate: 40-1000 kbps
  • Built-in Power over Ethernet (PoE)
  • Operating temperature: -20 to +70°C

The Kvaser Ethercan HS is a powerful, real-time Ethernet to CAN interface that, when linked over the Internet to an Ethernet-equipped PC, allows CAN data to be remotely accessed from anywhere in the world. Built-in Power over Ethernet (PoE) eliminates the need for a separate power cable when you can’t power the device from the CAN bus.

Kvaser’s Ethercan product range makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or WAN, using the standard Kvaser CANlib API. Users of the Kvaser Ethercan HS can also choose to connect to the device using the built-in REST API for web-enabled devices, such as smartphones.

As a programmable interface, the Kvaser Ethercan HS is suited to advanced applications, such as ECU reflashing. For example, a t program could be created to process CAN messages locally in the device, removing the latency of WiFi and/or Ethernet.

Technical specifications
Channels 1
Bitrate 40-1000 kbps
Messages per second receive 20 000
Messages per second sending 20 000
Error counters reading No
Error frame generation No
Current consumption PoE (Power over Ethernet) IEEE 802.3af or CAN +9V to +35V DC
Interface Ethernet RJ45
Connector DSUB 9
Silent mode No
Sound No
Timestamp (µ) 25 µs
Galvanic isolation Yes
OS Win 7, Win Vista, Win 10, Win 8
Material PA66
Length 165 mm
Height 17 mm
Weight 120 g

Environmental and physical specifications

Operating Temperature -20 to +70°C
Certificates CE, RoHS
Model Description
73-30130-00976-9 Kvaser Ethercan HS
