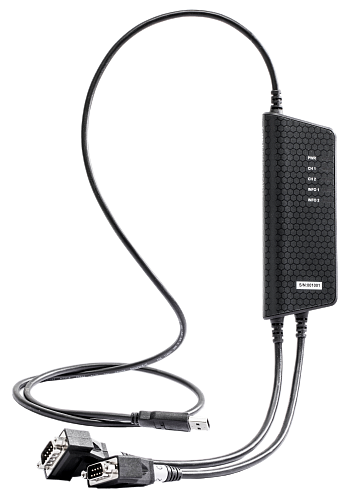

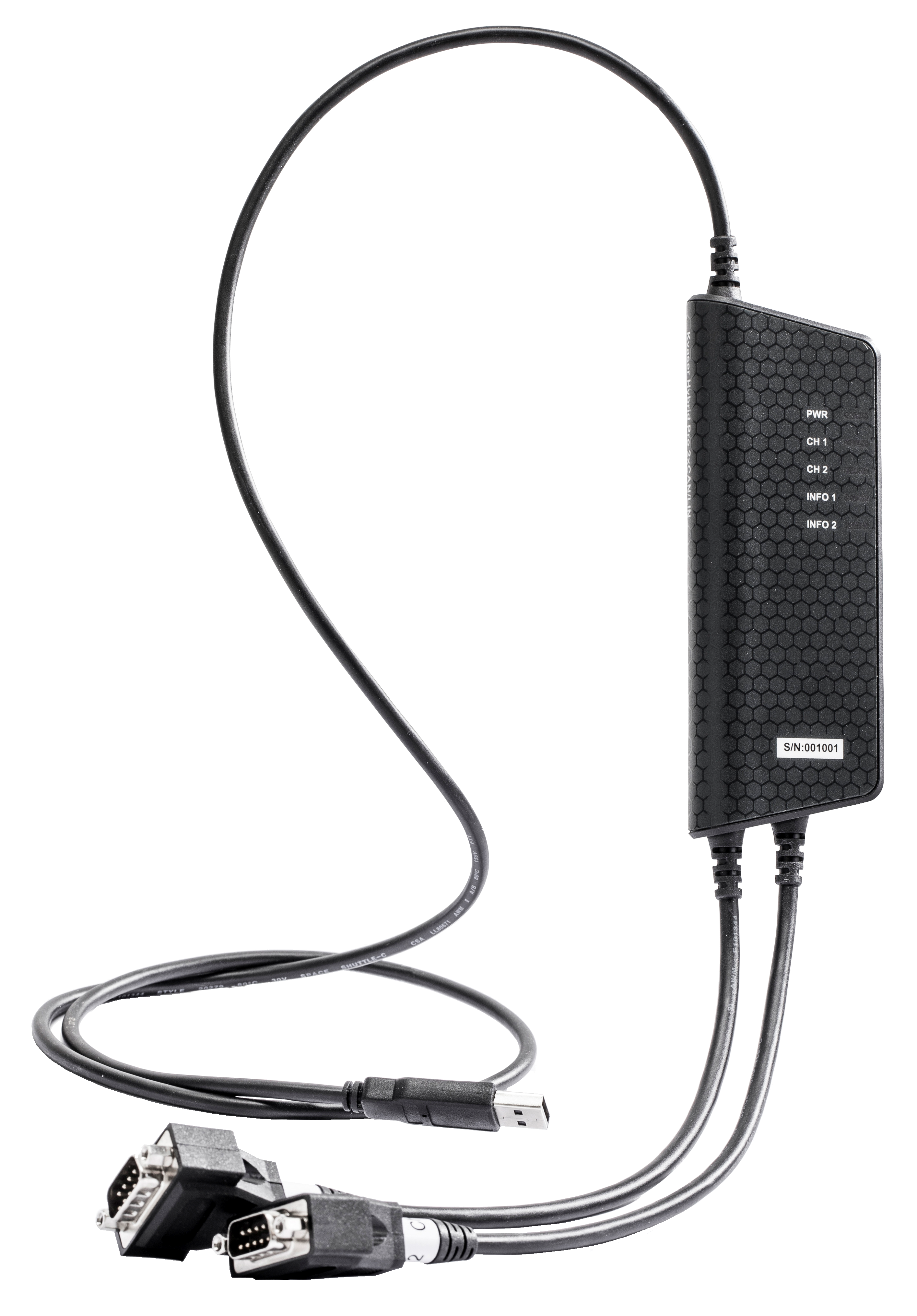

Hybrid Pro 2xCAN/LIN

Dual channel USB-CAN/LIN interface with CAN FD support
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • Bitrate: 50-1000 kbps
  • CAN FD Bitrate: 5 Mbit/s
  • Lin Bitrate: 1-20 kbit/s
  • Operating temperature: -40 to +85 °C

Kvaser Hybrid Pro 2xCAN/LIN is a flexible, dual channel interface that allows each channel to be assigned independently as CAN, CAN FD or LIN. This makes the Kvaser Hybrid Pro 2xCAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!

The Kvaser Hybrid Pro 2xCAN/LIN offers advanced features such as support for CAN FD, Silent Mode, Single Shot, Error Frame Generation and Kvaser MagiSync automatic clock synchronization. As a Pro-level device, this interface can host user-developed programs, created using resources provided within Kvaser’s free CANlib SDK. These can be designed to accomplish a range of advanced tasks, such as CAN node simulation and CAN flashing, or create a LIN to CAN gateway. Guidance and code examples are provided.

Main Features:

  • Hybrid USB CAN/LIN two channel interface with two separate 9-pin D-SUBs
  • t programs allow users to customise the Hybrid Pro 2xCAN/LIN’s behaviour
  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s
  • Supports CAN FD (ISO 11898-1) up to 5 Mbit/s (with correct physical layer implementation)
  • Capable of sending up to 20000 messages per second, per CAN channel, time-stamped with a 1 microsecond accuracy
  • USB powered (bus V+ reference required for LIN)
  • Kvaser MagiSync — automatic time synchronization between MagiSync-enabled Kvaser interfaces connected to the same PC
  • Single shot function ensures that failed CAN transmissions will not retry
  • CAN Error Frame Generation and Error Counters
  • LED lights indicate device status
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
  • Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast
  • Extended operating temperature range from −40 to 85 °C
  • Support for SocketCAN, see for details
  • Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at
  • Kvaser CANlib SDK is a free resource that includes everything you need to develop software for the Kvaser CAN and LIN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Visual Basic, Python, as well as Kvaser’s t Programming language
  • All Kvaser CAN interface boards share the common software API, CANlib SDK. Programs written for one interface type will run without modifications on the other interface types
  • J2534 Application Programming Interface available
  • RP1210A Application Programming Interface available
  • HTML-Help and online documentation in Windows and Linux

Technical specifications
Channels 2
Bitrate 50-1000 kbps
CAN FD bitrate 5 Mbit/s
LIN bitrate 1-20 kbit/s
Messages per second sending 20 000
Messages per second receive 20 000
Galvanic Isolation Yes
Error Frame Generation Yes
Error Counters Reading Yes
Silent mode Yes
Time Stamp Resolution 1 µs
Current Consumption Max 280 mA
Sound No
Interfaces USB
Connectors DSUB 9
Height 20 mm
Length 170 mm
Weight 170 g
Material PA66
Operating system Linux, Win 7, Win Vista, Win 10, Win 8

Environmental and physical specifications

Operating Temperature -40 to +85 °C
Certificates CE, RoHS
Model Description
73-30130-01042-0 Kvaser Hybrid Pro 2xCAN/LIN
