PC104+ HS/HS IDC

2-channel PC/104+ compatible CAN interface with IDC Header CAN connectors
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • High-speed ISO 11898 compliant
  • Stack-through connector
  • On-board 16-bit microcontroller
  • Operating temperature -40 to 85°C

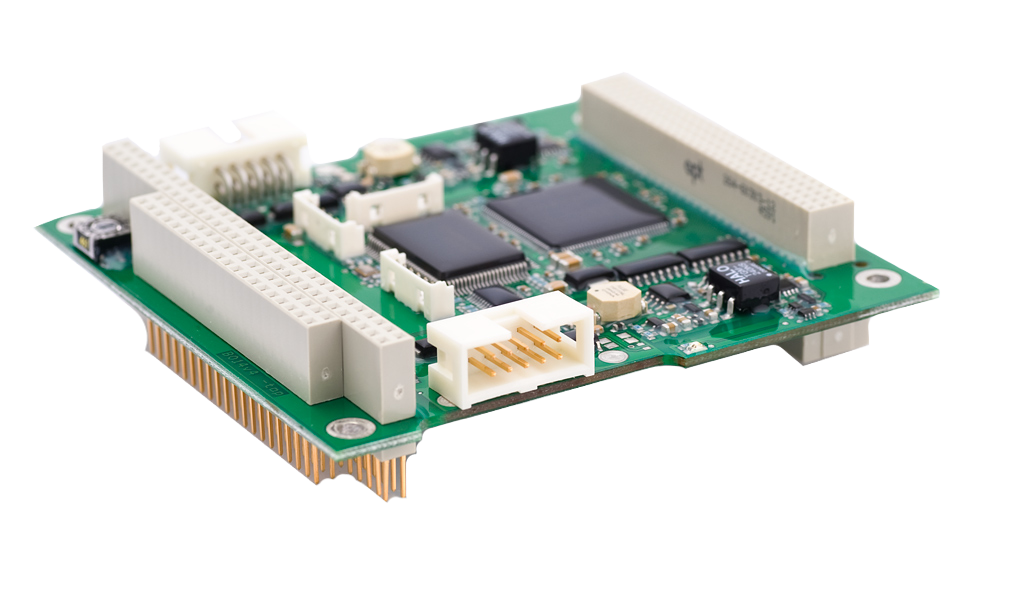

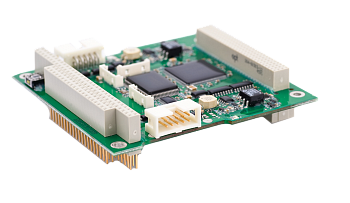

Kvaser PC104+ HS/HS IDC is a two channel, PC/104+ compatible CAN (controller area network) interface with IDC Header CAN connectors. It includes a high-performance, on-board microcontroller for CPU offloading, ensuring fast response times.

Major Features:

  • Quick and easy plug-and-play installation.
  • High-speed ISO 11898 compliant driver circuits, supports bit rates up to 1 Mbit/s.
  • Compliant with the PC/104-Plus specification.
  • Stack-through connector.
  • On-board 16-bit microcontroller.
  • Communicates with the PC through a fast DPRAM.
  • Supports CAN 2.0 A and 2.0 B (active).
  • CAN oscillator frequency of 16 MHz.
  • Interfaces the CAN bus with IDC Header connectors.
  • Wide temperature range, −40°C — +85°C.
Software:
  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Technical specifications
Channels 2
Bitrate 5-1000 kbps
Messages per second receive 14000 mps
Messages per second sending 8000 mps
Error counters reading Yes
Error frame generation Yes
Interfaces PC 104+
Connectors IDC 10
Current consumption Approximately 1W @ 200mA
Timestamp resolution 1 µs
Silent mode Yes
Sound No
Galvanic isolation Yes
Length 96 mm
Height 20 mm
Weight 100 g
OS Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Environmental and physical specifications

Operating Temperature -40 to 85 °C
Certifications CE, RoHS
Model Description
73-30130-00336-1 Kvaser PC104+ HS/HS IDC
