The PCI-7841/cPCI-7841 is a Controller Area Network (CAN) interface card. It supports a dual-port CAN’s interface that can run independently or bridged at the same time.
The built-in CAN controller of this card is Philips SJA1000, which provides bus arbitration and error detection with auto correction and re-transmission function.
Technical specifications | |
CAN channels | 2x CAN channels (V2.0 A, B) |
CAN Controller | SJA1000 |
CAN Transceiver | 82C250/251 |
Transfer rate | Up to 1 Mbps programmable transfer rate |
Controller frequency | 16 MHz CAN controller frequency |
Memory mapping | Direct memory mapping to the CAN controllers |
Isolation Voltage | 2500 VRMS |
Connectors |
Dual DB9 male connectors for PCI-7841 5-pin screw terminal for cPCI-7841 |
Power Consumption | +5 V @ 400 mA typical, @ 900 mA max. |
Software Support | Dos, Windows NT/2000/XP/7, Linux |
Dimensions |
PCI-7841: 132 mm x 107 mm (H x L) cPCI-7841: 100 mm x 160 mm (H x L) |
Environmental and physical specifications |
|
---|---|
Operating temperature | 0˚C to 60˚C |
Storage temperature | -20˚C to 80˚C |
Humidity | 5 to 95%, non-condensing |
Model | Description |
PCI‑7841 | Dual-port isolated CAN interface card |

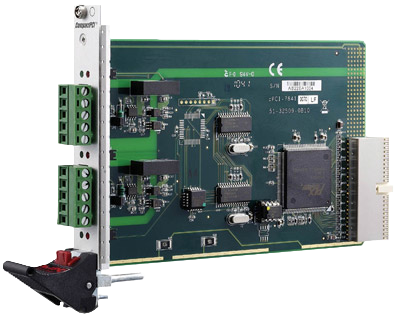

cPCI‑7841 | Dual-port isolated CAN interface card in 3U CompactPCI form factor |
cPCI‑7841R | Dual-port isolated CAN interface card in 3U CompactPCI form factor with rear I/O support |
