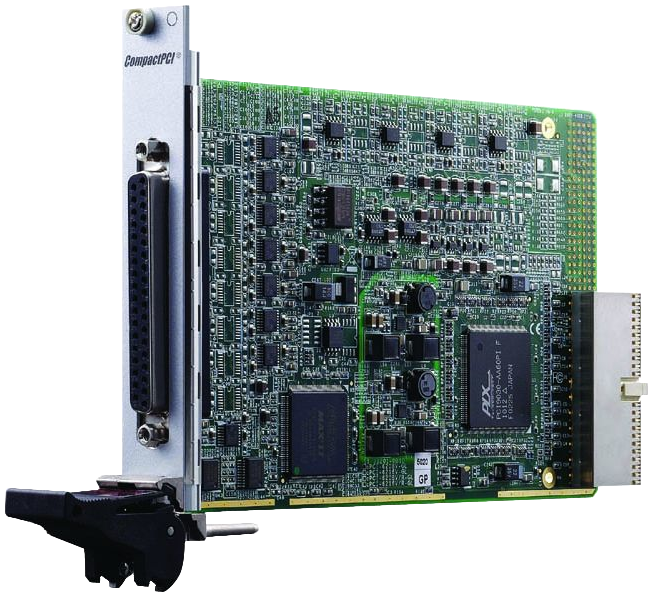

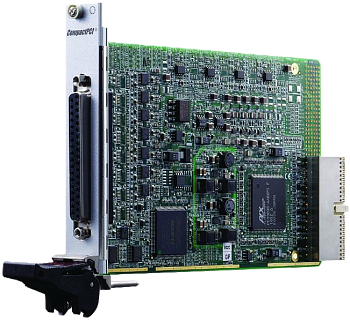

cPCI-6208/6216
8/16-CH 16-Bit Analog Output Modules
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- PICMG 2.0 Rev 2.1
- 16-bit D/A resolution
- Rear I/O available
- Operating temperature: 0°C to +50°C
ADLINK 6208/6216-GL Series are 8-ch or 16-ch, 16-bit analog output cards. They each offer ±10 V output ranges and 25 V/µs slew rates.
Each channel is equipped with a dedicated digital to analog converter, and the output value of each channel can be updated individually.
These devices provide high resolution, high density analog output functionalities and are suitable for automation test equipment, signal generation, industrial process control, servo control, and several other industrial control applications.
| Technical specifications | |
|
Voltage Output |
|
|---|---|
| Number of channels |
8 voltage outputs (PCI/PCIe/cPCI-6208V-GL & PCI-6208A) 16 voltage outputs (PCI/cPCI-6216V-GL) |
| Resolution | 16 Bit |
| Monotonicity | 15 Bit typical |
| Output ranges | ±10 V |
| Slew rate | 26 V/µs typical |
| Settling time | 130 µs typical (20 V step) |
| Gain Error | ±0.2% maximum |
| DNL | ±1 LSB typical |
| Output driving capacity | ±5 mA maximum |
| Output initial status | 0 V |
| Data transfer | programmed I/O |
|
Current Output |
|
| Number of channels | 8 current outputs (PCI-6208A) |
| Resolution | 15 Bit |
| Monotonicity | 14 Bit typical |
| Output ranges | 0-20 mA, 4-20 mA, 5-25 mA (Software programmable) |
| Slew rate | 1.3 mA/µs typical |
| Settling time | 17 µs typical (20 mA step) |
| Span Error | ±0.3% typical |
| Output initial status | 4 mA (after RESET or POWER-ON) |
| Data transfer | programmed I/O |
|
Digital I/O |
|
| Number of channels | 4 inputs and 4 outputs |
| Compatibility | 5 V/TTL |
| Data transfer | programmed I/O |
|
General Specifications |
|
| I/O connector | One 37-pin D-sub female |
| Power requirements |
PCI-6208V-GL +5 V, 650 mA typical +12 V, 170 mA typical PCI-6216V-GL +5 V, 1.2 A typical +12 V, 280 mA typical PCI-6208A +5 V, 670 mA typical +12 V, 380 mA typical cPCI-6208V +5 V, 500 mA typical +12 V, 200 mA typical cPCI-6216V +5 V, 1 A typical +12 V, 300 mA typical PCIe-6208V-GL +3.3 V, 310 mA typical +12 V, 380 mA typical |
| Dimensions (not including connectors) |
175 mm x 107 mm (6.82” x 4.17”) (PCI-6208/6216) 168 mm x 112 mm (6.55” x 4.36”) (PCIe-6208) 160 mm x 100 mm (6.24” x 3.9”) (cPCI-6208/6216) |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage temperature | -20˚C to 80˚C (-4˚F to 176˚F) |
| Relative humidity | 5% to 95%, non-condensing |
| Model | Description |
| cPCI‑6208V‑GL | 8-CH 16-Bit Voltage Output Module |
| cPCI‑6216V‑GL | 16-CH 16-Bit Voltage Output Module |
