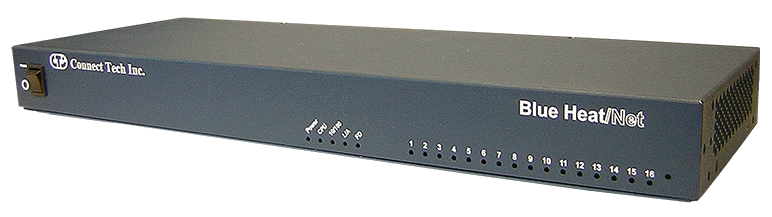

Blue Heat/Net 16
Vendor:Connect Tech
- Details
- Specification
- Order information
- 16x software selectable RS-232/422/485
- CPU: ColdFire 32 bit, 166MHz CPU
- Memory: 32MB SDRAM, 8MB Flash
- Operating temperature: -40°C to +60°C (-40°F to +140°F)
Remotely access devices with the Blue Heat/Net 16 Ethernet-to-serial device. Directly connect devices to your Ethernet LAN via 16 software selectable RS‑232/422/485 ports.
Remote access not only frees your devices from a physical connection increasing location flexibility, but also simplifies future installations or upgrades and reduces cabling costs. All Blue Heat/Net Ethernet-to-serial devices can be configured and controlled via serial interface, or remotely via Telnet or web-based HTTP.
Blue Heat/Net includes an auto-sensing 10/100 Ethernet interface and can achieve data speeds up to 460.8 Kbps per port. Ports are independently configurable and software customization is a breeze. Based on the uClinux embedded operating system, this Ethernet-to-serial device offers programmers a familiar Linux API. Connect Tech includes a full range of open source development tools via its free Software Development Kit. You can create customized protocols and download them directly to the on-board Flash memory, making the Blue Heat/Net one of the most flexible Ethernet-to-serial products on the market.
Industrial protocol, Power over Ethernet (PoE) and industrial temperature grade Ethernet-to-serial options also available on select models.
| Technical specifications | |
| Ports | 16 ports |
| Electrical Interfaces | Software selectable RS-232/422/485 |
| LAN interface | 10Base-T, 100Base-TX Ethernet (auto-sensing) |

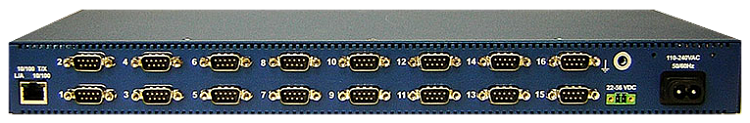

| Connectors | LAN: RJ-45 connector, RS-232/422/485: DB-9 connector |
| Control Signals |
RS-232: DTR, DSR, RTS, CTS, TxD, RxD, RI*, DCD, GND, RS-422/485: TxD +/- , RxD +/- , RTS +/- , CTS +/-, SR |
| Baud Rate | 50 bps to 460.8 Kbps (custom baud rates available) |
| Protocols | ARP, BootP, DHCP, HTTP, ICMP, IP, PPP, RARP, TCP, Telnet, TFTP, UDP |
| CPU | ColdFire 32 bit, 166MHz CPU features 32MB SDRAM, 8MB Flash |
| Memory | 32MB SDRAM, 8MB Flash |
| Configuration | Web browser (HTTP), Telnet console or serial utility |
| Software Compatibility |
Windows 2000/XP/XP x64/Server 2003 Vista, QNX 4.X/6.X and Linux (Contact us for most recent list) |
| Surge Suppression | EN61000-4-2, ESD EN61000-4-3, EMC EN61000-4-4 EFT |
| Power Requirements | 110/240V AC, 24-56 V DC, 50/60 Hz |
| Rack Mount | 1U, 19” rack kit included |
| Dimensions | Length: 43.7 cm/17.25" Width: 16 cm/6.25” Height: 4.4 cm/1.74" |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Regulatory Approvals |
EN 55022, EN 55024 FCC Class A, Part 15 ICES-003 |
| Model | Description |
| BNG022 | Blue Heat/Net, RS-232/422/485 with 16 ports. Includes surge suppression |
| BNG022‑01 | Blue Heat/Net bundle includes one of: BNG022, CBG006 |
| Cables/Accessories | |
| CB004 | RJ-45 to DB-25 Female adapter |
| CB005 | RJ-45 to DB-9 Female adapter |
| CB006 | Straight through CAT 5 Ethernet Cable 1.8 m (6 ft). Can be used with CB004 and CB005 |
| CBG005 | RJ-45 to DB-9F converter |
| CBG006 | Straight through CAT 5 Ethernet Cable 1.8 m (6 ft). Can be used with CBG004 and CBG005. RoHS compliant |
| MS003 | 1A 5V unregulated power supply for North America |
| MSG003 | 1A 5V unregulated power supply for North America. RoHS compliant |
| MS004 | 1A 5V unregulated power supply for United Kingdom |
| MSG004 | 1A 5V unregulated power supply for United Kingdom. RoHS compliant |
| MS005 | 1A 5V unregulated power supply for European Union |
| MSG005 | 1A 5V unregulated power supply for European Union. RoHS compliant |
| MS006 | 1A 5V unregulated power supply for Australia/New Zealand |
| MSG006 | 1A 5V unregulated power supply for Australia/New Zealand. RoHS compliant |
| MS007 | 3.0A 5V regulated universal power supply with North American line cord |
| MSG007 | 3.0A 5V regulated universal power supply with North American line cord. RoHS compliant |
| MS008 | 3.0A 5V regulated universal power supply, no line cord |
| MSG008 | 3.0A 5V regulated universal power supply, no line cord. RoHS compliant |
| MS009 | DIN Rail Mount option |
| MS010 | DIN rail mount clips |
