BlueStorm/Express LP
Vendor:Connect Tech
- Details
- Specification
- Order information
- 8x hardware selectable RS-232/422/485 ports
- DB-25 cables, DB-9 cables, DB-9 external I/O box
- PCI Express bus
- Operating temperature: 0°C to +70°C (+32°F to +158°F)
The BlueStorm/Express family offers reliable, high speed data transfer for your PCI Express system.

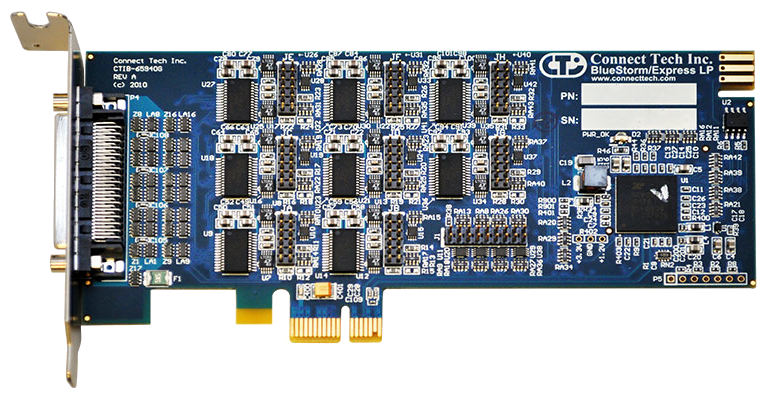

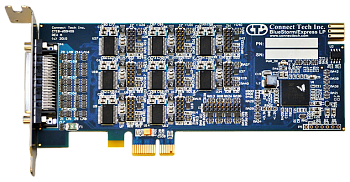

The BlueStorm/Express LP is a low profile x1 lane, PCI Express serial card offering eight ports of RS-232/422/485 connectivity, compatible with any PCI Express slot. Bi-directional data speeds up to 7.8 Mbps (RS-422/485) ensure your data acquisition, office automation, POS, self-service kiosk or scientific/instrumentation applications communicate in a reliable, cost-effective manner.
BlueStorm/Express LP is compatible with x1, x4, x8 and x16 lane PCI Express slots. Upgrading a PCI system to the more efficient PCI Express requires a hardware change only — your new PCI Express system is backwards compatible with PCI software.
All Connect Tech PCI Express cards are FCC certified and CE marked.
| Technical specifications | |
| Ports | 8 ports |
| Electrical Interfaces | Hardware selectable RS-232/422/485 |
| Connectors | DB-25 cables, DB-9 cables, DB-9 external I/O box |
| Control Signals |
RS-232: TxD, RxD, RTS, CTS, RI, DTR, DSR, DCD, RS-422/485: TxD+/-, RxD+/-, RTS+/-, CTS+/- |
| Baud Rate | RS-232: 50 bps to 1 Mbps, RS-422/485: 50 bps to 7.8 Mbps |
| Interrupts | Assigned by Plug and Play resources |
| Memory Addresses | Assigned by Plug and Play resources |
| UART Type | PCIe octal UART with up to 254 bytes transmit and receive FIFO buffers for each port |
| Bus | PCI Express |
| Operating System | Linux, QNX, SCO Unix, Solaris, Windows |
| Surge Supression | IEC 1000-4 compatible on all signals, all ports |
| System Interfaces | One PCI Express x1 card edge |
| Power Requirements | +3.3V DC @ 675mA (max), 100mA (min) |
| Dimensions | 146.99 mm x 68.91 mm (5.787” x 2.713") |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | 0°C to +70°C (+32°F to +158°F) |
| Storage Temperature | -40º C to 105º C (-40º F to 221º F) |
| Humidity | 5 to 95% non-condensing |
| Regulatory Approvals |
FCC Class A ICES-003 Class A |
| Model | Description |
| BFG002 | BlueStorm/Express LP, 8 ports. Designed and built for installation in a low profile chassis. |
| BFG002-01 | BlueStorm/Express LP, 8 ports with CBG009 cable. Designed and built for installation in a low profile chassis. |
| BFG002-02 | BlueStorm/Express LP, 8 ports with CBG026 cable. Designed and built for installation in a low profile chassis. |
| BFG002-03 | BlueStorm/Express LP, 8 ports with external DB-9 I/O box - RoHS compliant. |
| BFG002-04 | BlueStorm/Express LP, 8 ports with CBG033 cable. Designed and built for installation in a low profile chassis. |
| BFG005 | BlueStorm/Express LP, 8 ports. Designed and built for installation in a standard height chassis. |
| BFG005-02 | BlueStorm/Express LP, 8 ports with CBG026 cable. Designed and built for installation in a standard height chassis. |
| BFG005-03 | BlueStorm/Express LP, 8 ports with IOBG08BLV1 I/O box. Designed and built for installation in a standard height chassis. |
| Cables/Accessories | |
| CBG009 | 8x DB-9 Male |
| CBG026 | 8x DB-25 Male, 0.3m length |
| IOBG08DB9V1 | 8x DB-9 Male I/O Box, Provides Universal DB9M, 1.220 length |
| CBG033 | 8x DB-9 Male, 1.220 length |
| IOBG08BLV1 | 8x DB-9 Male I/O Box, 1.220m length |
