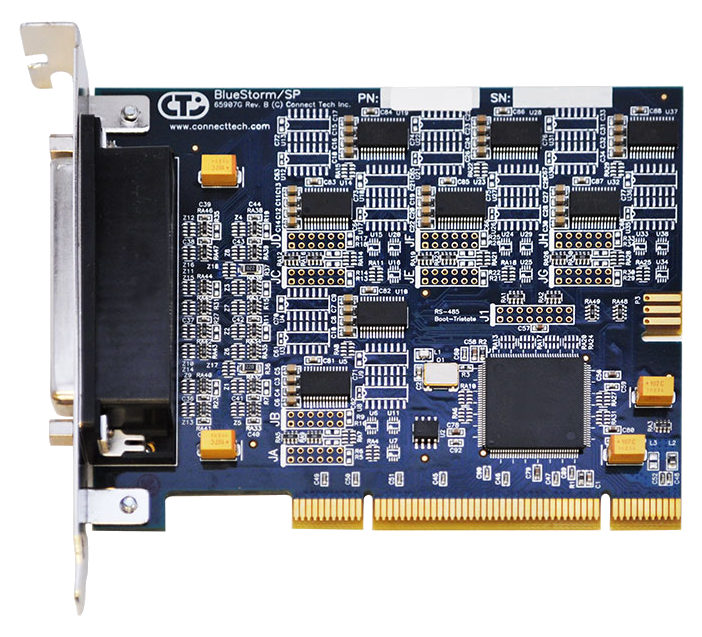

BlueStorm/SP
Serial communications board
Vendor:Connect Tech
- Details
- Specification
- Order information
- 8 ports
- Hardware selectable RS-232/422/485
- DB-9 and DB-25 fan out cables, DB-9 external I/O box
- Operating temperature: 0°C to +70°C (+32°F to +158°F)
Connect Tech’s standard profile BlueStorm/SP is the ideal choice for your PCI applications. Fully PCI 2.3 compliant, the BlueStorm/SP can be installed in any 3.3V or 5V system.
Available with eight ports, the BlueStorm/SP offers RS-232/422/485 connectivity and is jumper selectable on each individual port.
Dependability, high speed data transfer rates and multi-strike surge suppression make these cards ideal for many environments including; industrial or office automation, POS, scientific or instrumentation applications, to name a few.
All BlueStorm/SP products are FCC certified and CE marked.
| Technical specifications | |
| Ports | 8 ports |
| Electrical Interfaces | Hardware selectable RS-232/422/485 |
| Connectors | DB-25 fan out cable, DB-9 external I/O box, DB-9 fan out cable |
| Control Signals | RS-232: TxD, RxD, RTS, CTS, SG, RI, DTR, DSR, DCD, RS-422/485: TxD +/- , RxD +/- , RTS +/- , CTS +/-, SR |
| Baud Rate | RS-232: 50 bps to 921.6 Kbps, RS-422/485: 50 bps to 1.8432 Mbps |
| Interrupts | Assigned by Plug and Play resources |
| Memory Addresses | Assigned by Plug and Play resources |
| UART Type | Octal PCI UART with up to 64 byte transmit and receive FIFO buffer |
| Dimensions | 147.02mm x 106.05mm (5.788” x 4.175”) |
| Bus | 32-bit Universal PCI |
| Operating System | Linux, QNX 4.X/6.X, Windows 2000/CE/XP/XP x64/XPe/Server 2003/ Server 2003 x64/Vista |
| Surge Suppression | Multi-strike surge suppression on all ports – 0.05J protection |
| System Interfaces | Any available 3.3V or 5V PCI slot |
| Power Requirements | 5V @ 875 mA max., 100 mA min. |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | 0°C to +70°C (+32°F to +158°F) |
| Storage Temperature | -55°C to +105°C (-67°F to +221°F) |
| Humidity | 5 to 95% non-condensing |
| Regulatory Approvals |
FCC Class A ICES-003 Class A EN50082-2 EN 55022 Class A EN 55024 |
| Model | Description |
| BTG001 | BlueStorm/SP, 8 ports for RS-232/422/485. RoHS compliant. |
| BTG001-01 | BlueStorm/SP, 8 ports for RS-232/422/485 with CAG08FXDX cable. RoHS compliant. |
| BTG001-02 | BlueStorm/SP, 8 ports for RS-232/422/485 with CAG08DB25 cable. RoHS compliant. |
| BTG001-03 | BlueStorm/SP, 8 ports for RS-232/422/485 with IOBG08DB9V1 I/O box. RoHS compliant. |
| BTG007 | BlueStorm/SP, 8 ports for RS-232 |
| BTG007-01 | BlueStorm/SP, 8 ports RS-232, DB-9 cables - RoHS compliant |
| CAG08FXDX | 8x DB-9 Male Cable |
| CAG08DB25 | 8x DB-25 Male Cable |
| IOBG08DB9V1 | 8x DB-9 Male External I/O Box |
