E104-MPE
Vendor:Diamond Systems Corporation
- Details
- Specification
- Order information
- Up to 4 PCIe MiniCard sockets
- Full and half size cards supported
- 2 sockets support SIM cards
- Operating Temperature: -40°C to +85°C

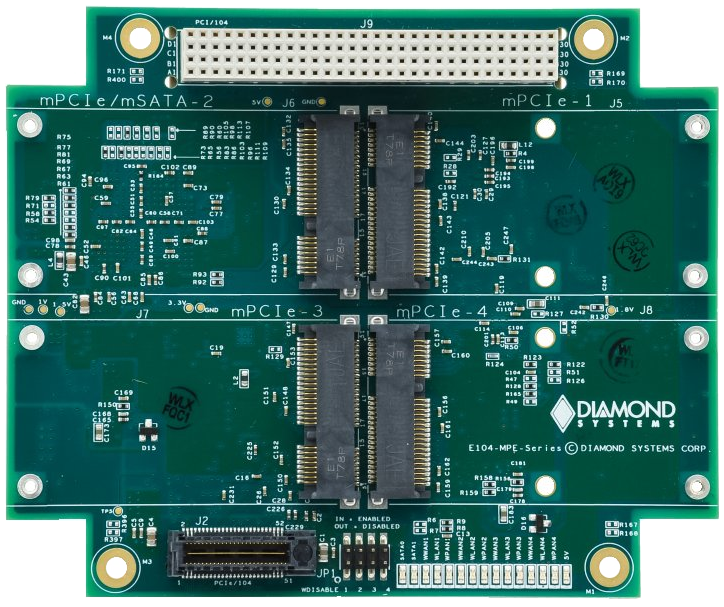

The PCIe MiniCard carrier provides up to four PCIe MiniCard sockets on a PCI/104-Express form factor board. All four sockets have PCIe x 1 and USB interfaces and support full size and half size PCIe MiniCard modules.
The module provides full support to all sockets while consuming only a single lane of host SBC resources. SIM card support is provided for two sockets.
All power is derived from the PCIe/104 connector 5V power tab. The PCI-104 connector provides a pass through connection and is not used by the module.
Extended temperature capability (-40°C to +85°C) enables the board to operate in environments with extreme temperature swings, such as vehicles or outdoor installations. For further enhanced ruggedness, zero ohm resistors can replace jumpers.
| Technical specifications | |
| Number of PCIe MiniCard sockets | 4 |
| Card Size | Full and half size cards supported |
| SIM support | 2 sockets support SIM cards |
| Interfaces | PCIe x1 and USB |
| Host interface | PCI-104 pass through |
| LEDs | LEDs provided for all 4 sockets |
| Form Factor/Dimensions |
PCI/104-Express form factor with wings: 4.5" x 3.775" (114mm x 96mm) |
| Power supply | +5VDC ±5% |
| Weight | 2.5oz (71g) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | -40°C to +85°C |
| Operating humidity | 5% to 95% non-condensing |
| Shock | MIL-STD-202G compatible |
| Vibration | MIL-STD202G compatible |
| RoHS | Compliant |
| Model | Description |
| E104‑MPE‑04 | PCI/104-Express Quad PCIe MiniCard Carrier |
| E104‑MPE‑02 | PCI/104-Express Dual PCIe MiniCard Carrier |
