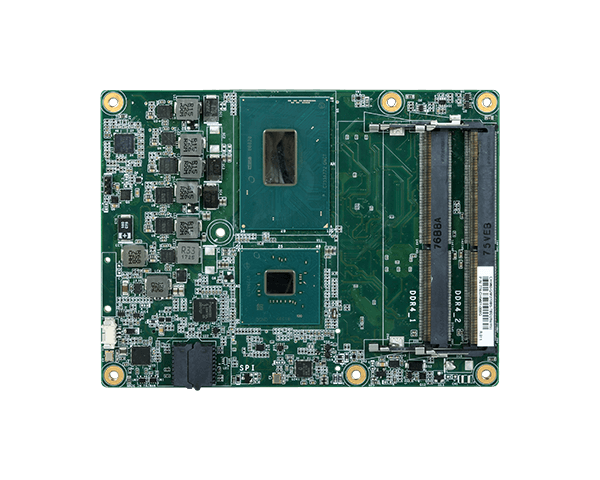

CH960-CM246/QM370

COM Express Basic module
DFI Vendor:
DFI
  • Details
  • Specification
  • Order information
  • Celeron to Xeon prosessor options
  • Dual channel DDR4 2666MHz SODIMM up to 64GB
  • 4 display ports, 3 independent displays
  • Operating temperature: up to -40°C to +85°C

COM Express Basic module provides high-level processing performance and high-speed interfaces for a wide range of computing-demand applications such as medical and industrial automation. DFI’s Basic modules are compatible with COM Express pin-out Type 2, Type 6, and Type 7.

Technical specifications
Processor 8th/9th Generation Intel Core Processors, BGA 1440
Intel Core i7-8850H, 6 Cores, 12M Cache, 2.6GHz (4.3GHz), 45W (CM246/QM370)
Intel Core i5-8400H, 4 Cores, 8M Cache, 2.5GHz (4.2GHz), 45W (CM246/QM370)
Intel Core i3-8100H, 4 Cores, 6M Cache, 3.0GHz, 45W (QM370)
Intel Core i7-9850HL, 6 Cores, 9M Cache, 1.9GHz (4.1GHz), 25W (QM370)
Intel Core i7-9850HE, 6 Cores, 9M Cache, 2.7GHz (4.4GHz), 45W (QM370)
Intel Xeon E-2176M, 6 Cores, 12M Cache, 2.7GHz (4.4GHz), 45W (CM246/QM370)
Intel Xeon E-2276ML, 6 Cores, 12M Cache, 2.0GHz (4.2GHz), 25W (CM246)
Intel Xeon E-2276ME, 6 Cores, 12M Cache, 2.8GHz (4.5GHz), 45W (CM246)
Intel Xeon E-2254ML, 4 Cores, 8M Cache, 1.7GHz (3.5GHz), 25W (CM246)
Intel Xeon E-2254ME, 4 Cores, 8M Cache, 2.6GHz (3.8GHz), 45W (CM246)
Intel Celeron G4930E, 2 Cores, 2M Cache, 2.4GHz (2.4GHz), 35W (CM246)
Chipset Intel CM246 Chipset (Support ECC)
Intel QM370 Chipset
Memory Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 2666MHz
BIOS AMI SPI 128Mbit
Graphics controller Intel HD Graphics

OpenGL up to 4.5, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display 1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
2 x DDI (HDMI/DVI/DP++)
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz 24bpp
DVI: resolution up to 1920x1200 @ 60Hz
DP++/eDP: resolution up to 4096x2304 @ 60Hz
Triple Displays VGA + LVDS + DDI or VGA + DDI 1 + DDI 2
eDP + 2 DDI (available upon request)
Expansion 1 x PCIe x16 or 2 x PCIe x8 or 1 PCIe x8 + 2 PCIe x4 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
Audio HD Audio
Ethernet controller 1 x Intel I219LM with iAMT12.0 PCIe (10/100/1000Mbps)
USB 4 x USB 3.1
8 x USB 2.0
SATA 4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO 1 x 8-bit DIO (Default 4 inputs and 4 outputs)
Watchdog timer System Reset, programmable via Software from 1 to 255 Seconds
TPM Available Upon Request
Power type 12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Power consumption Typical: 12V @ 0.85A (13.07Watt)
Max.: 12V @ 5.75A (74.084Watt)
OS support Windows 10 IoT Enterprise 64-bit
Linux
Compliance PICMG COM Express R2.1, Type 6
Dimensions (W x H x D) COM Express Basic
95mm (3.74") x 125mm (4.9")

Environmental and physical specifications

Temperature Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF 1,360,171 hrs @ 25°C; 892,642 hrs @ 45°C; 624,277 hrs @ 60°C excluding accessories
Calculation Model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Certifications CE, FCC, RoHS
Model Description
770-CH9601-000G CH960-QM370TS-8850H. Cooler, Intel Core i7-8850H, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C
770-CH9601-100G CH960-CM246BS-2176M. Cooler, Intel Xeon E-2176M, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
770-CH9601-200G CH960-QM370BS-8850H. Cooler, Intel Core i7-8850H, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
770-CH9601-500G CH960-QM370BS-8400H. Cooler, Intel Core i5-8400H, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
770-CH9601-700G CH960-QM370BS-8100H. Cooler, Intel Core i3-8100H, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
770-CH9601-800G CH960-CM246BS-2276ML. Cooler, Intel Xeon E-2276ML, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
770-CH9601-900G CH960-CM246TS-2276ME. Cooler, Intel Xeon E-2276ME, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C
770‑CH9601‑A00G CH960‑CM246BS‑2254ML. Cooler, Intel Xeon E-2254ML, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
770-CH9601-B00G CH960-CM246TS-2254ME. Cooler, Intel Xeon E-2254ME, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C
770-CH9601-C00G CH960-QM370BS-9850HL. Cooler, Intel Core i7-9850HL, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
770-CH9601-D00G CH960-QM370TS-9850HE. Cooler, Intel Core i7-9850HE, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C
770-CH9601-G00G CH960-CM246BS-G4930E. Cooler, Intel Celeron G4930E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
770-CM3321-000G COM332-B carrier board kit
A71-808316-000G Heat spreader, height: 11mm
