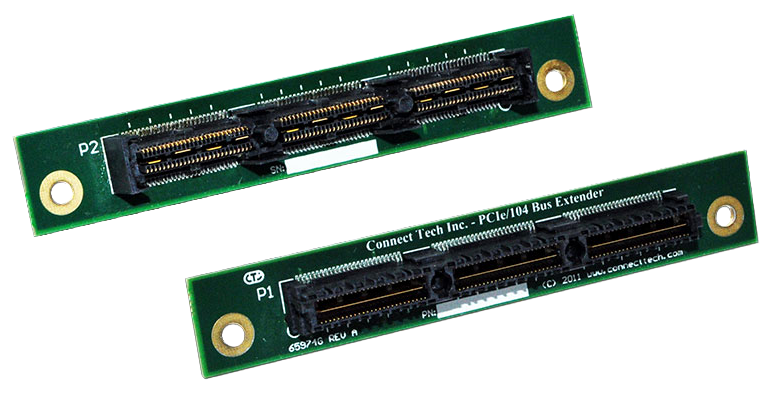

PCIe104 Bus Extender
Expand the height clearance between SBCs and PCIe/104 or PCI/104-Express Peripherals
Vendor:Connect Tech
- Details
- Specification
- Order information
- PCIe/104 (PC/104-Express)
- Electrical Interface: PC/104-Express
- Bus Connectors: PCIe/104 x 16
- Operating temperature: -40°C to +85°C
Connect Tech’s PCIe/104 Bus Extender can be used to allow one additional card height spacing between peripherals in a PCIe/104 or PCI/104-Express stack.
The PCIe/104 Bus Extender can be used to allow the additional space required for objects such as heatsinks, I/O connectors, cables or other components that can cause clearance issues in your PCI/104-Express stack.
| Technical specifications | |
| Bus Connectors | PCIe/104 x 16 |
| System Interfaces | PCIe/104 or PC/104-Express Stack |
| Dimensions | Length: 90.2mm/3.55” Height: 14.605mm/0.575” |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG038 | PCIe/104 Bus Extender |
