ADLMES9200

3- and 5-card rugged chassis systems
  • Details
  • Specification
  • Order information
  • Two sizes available to reduce time to market
  • Compatible with all ADL PC/104 and 3.5 Single Board Computers and Power Supplies
  • EMC-Compliance Gasket Kit for IP67
  • Estimated operating temperature: -40°C to +85°C

The rugged ADLMES9200 IP67 chassis is a successor to ADL’s popular ADLMES8200 IP65 chassis system. Improvements include lower weight, lower cost, quick and reliable IP67 integration for rugged military and industrial applications. Design features for military / defense system include MIL-STD 810 tolerance and MIL-STD 461/704/1275 compliance capability.

The ADLMES9200 is compatible with all ADL’s full range of Intel-based PC/104 and 3.5″ SBC’s which range from low-power ATOM to the latest Intel Core i5/i7 processors. Power supply options include ADL’s range of long-life (MTBF>500,000 hrs) with options for MIL-STD 461/704/1275 compliant filtering.

The uni-body design, with minimal, reliable EMC-compliant gasketing makes for better IP67 Ingress protection as well as assembly. Full design and development services are available for chassis customization, cabling, integration and modeling support.

Applications

Rugged: Ground Vehicles, Mission / Payload Computing, Secure Communications, SWaP-constrained systems for mobile, airborne and vehicle

Rugged Industrial: Oil and Gas, Road Construction and Inspection, Mining, Agriculture

Technical specifications

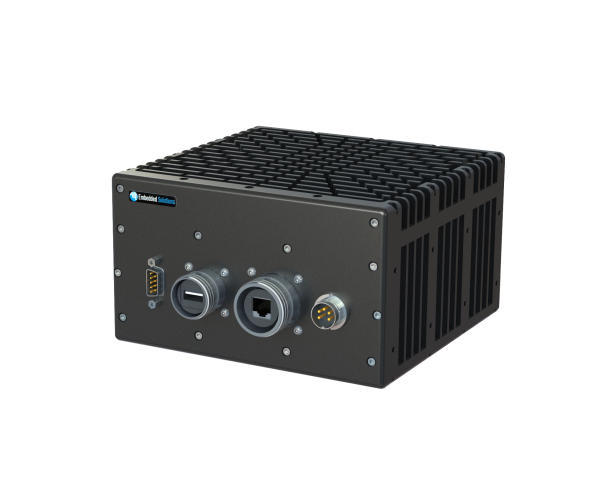

Dimensions (Conductive/Passive) LPP = 3.3”/4.0” x 6.9” x 6.7” (83.82/101.6 x 175.26 x 170.18 mm) (3 Card Capacity)

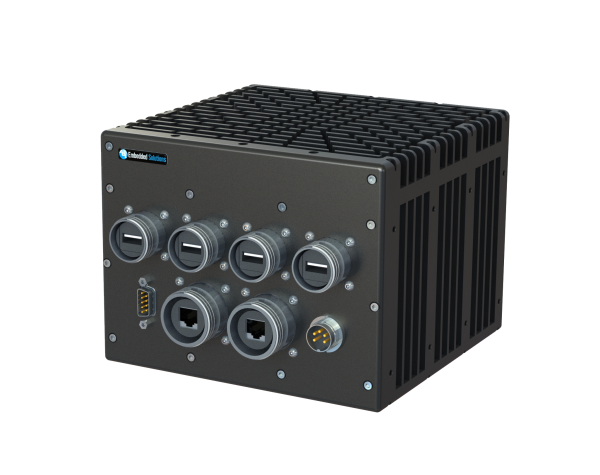

P1P = 4.6”/5.3” x 6.9” x 6.7” (116.84/134.62 x 175.26 x 170.18 mm) (5 Card Capacity)
Empty Weight (Conductive, Flanged) LPPE = 4.3 lbs (1.95 kg)
P1PE = 5.3 lbs (2.4 kg)
EMI Compliance Supports power supply options for MIL-STD 461 Compliance
Power Supports power supply options for MIL-STD 704F/1275D Compliance
Mounting Flanged Plate - M6 Mounting Holes
Additional center holes for conductive pressure

Environmental and physical specifications

Operating Temperature Estimated -40°C to +85°C with ADL Intel Core i7 SBCs with heat spreaders and flanged plate for conduction cooling
Shock and Vibration Designed for MIL-STD 810G shock and vibration profiles
Model Description
ADLMES9200-LPPA Passive Finned with Flanged Base
ADLMES9200-LPPB Passive Finned with Active Fan and Flanged Base
ADLMES9200-LPPC Passive Finned; No Flanged Base
ADLMES9200-LPPD Passive Finned with Active Fan; No Flanged Base
ADLMES9200-LPPE Conduction Cooled with Flanged Base
ADLMES9200-P1PA Passive Finned with Flanged Base
ADLMES9200-P1PB Passive Finned with Active Fan and Flanged Base
ADLMES9200-P1PC Passive Finned; No Flanged Base
ADLMES9200-P1PD Passive Finned with Active Fan; No Flanged Base
ADLMES9200-P1PE Conduction Cooled with Flanged Base
ADLMES9200-IP67-KIT EMC-compliant IP67 Gasket Kit for IP67 Option
