VersaTainer

Rugged PC/104 or EBX Enclosure
  • Details
  • Order information
  • Any length up to 48" available
  • 0.125" thick anodized aluminum side walls with heat dissipating fins
  • Rubber isolating shock mount and internal stack vibration mount
  • Dimensions: 7.10" x 5.70" x length

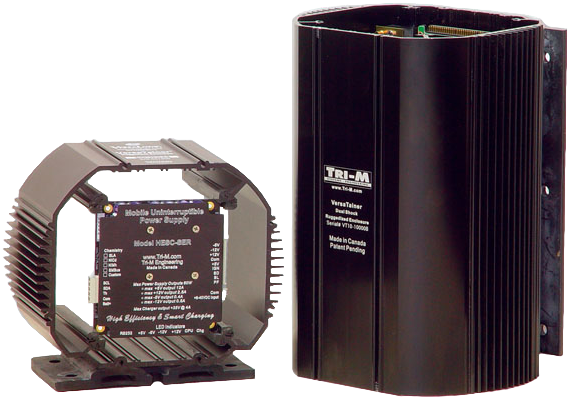

The VersaTainer (VT104) is a rugged EBX and PC/104 enclosure system constructed of .125″ aluminum and designed for hostile and mobile environments. It features a dual system of shock and vibration isolation which comprises of internal rubber corner rails absorb high-frequency vibrations, while the entire enclosure is mounted on the host platform with a thick rubber pad which absorbs low-frequency G-forces. The rubber pad may be removed for optional mounting solutions such as hard mounting, flange endcap, or fluidic mount assembly.

The VersaTainer is capable of housing PC/104 and EBX payloads. For PC/104, the stack mounts axially along the entire length of the enclosure body. For EBX, An optional EBX mounting plate (VT-EBX) is available to mount the SBC to be horizontally with ample room for several PC/104 accessory cards to be installed. Accessory modules such as hard drives larger than 3.550″ x 3.775″ can be mounted to an optional septum plate that installs vertically into rails that run the length of the enclosure. For smaller items, an optional PC/104-size aluminum plate allows for direct mounting in the PC/104 stack.

The VersaTainer enclosure cross section measures 7.10″ wide by 5.70″ high (not including mounting pad) and is available in standard lengths from 4″ to 12″ and custom lengths up to 48″. Each VersaTainer is available as a kit with mounting accessories. Blank and pre-designed endcaps are available from stock, or the customer may design their own cutouts using one of our VersaTainer endcap templates. These rugged enclosures have been protecting PC104 systems all over the world in the harshest environments the mining, transportation, military, and aerospace industries have to offer. The VersaTainer and its standard accessories are RoHS compliant.

Model Description
VT4-NC VersaTainer Kit, Extrusion length 4", rubber shock mount pad, corner guide rails, parts kit, no endcaps
VT6-NC VersaTainer Kit, Extrusion length 6", rubber shock mount pad, corner guide rails, parts kit, no endcaps
VT8-NC VersaTainer Kit, Extrusion length 8", rubber shock mount pad, corner guide rails, parts kit, no endcaps
VT10-NC VersaTainer Kit, Extrusion length 10", rubber shock mount pad, corner guide rails, parts kit, no endcaps
VT12-NC VersaTainer Kit, Extrusion length 12", rubber shock mount pad, corner guide rails, parts kit, no endcaps

Accessories and Options

RUB-CNR-BULK Bulk rubber, corner mount (per foot)
RUB-EBX-1.2 1.2" Mounting Plate Rubber
VT-EBX Optional EBX adaptor for VT8 and larger
VT-EC-Custom Custom punched endcaps with etching - New order (MOQ 10)
VT-EC00 VT Endcap - solid
VT-EC02 Endcap - 4xDB9, 2xDB25
VT-KIT-GSKT Set of two VersaTainer rubber gaskets
VT‑PARTS‑KIT‑4B 4x 5/16 flange nut, 4x 5/16 flange bolt, 8 x rubber corner stops, 16 x endcap screws, 1 x superglue
VT‑PARTS‑KIT‑6B 6x 5/16 flange nut, 6x 5/16 flange bolt, 8 x rubber corner stops, 16 x endcap screws, 1 x superglue
MTG-BRK01-KIT Quick mounting bracket for CanTainer/VersaTainer
