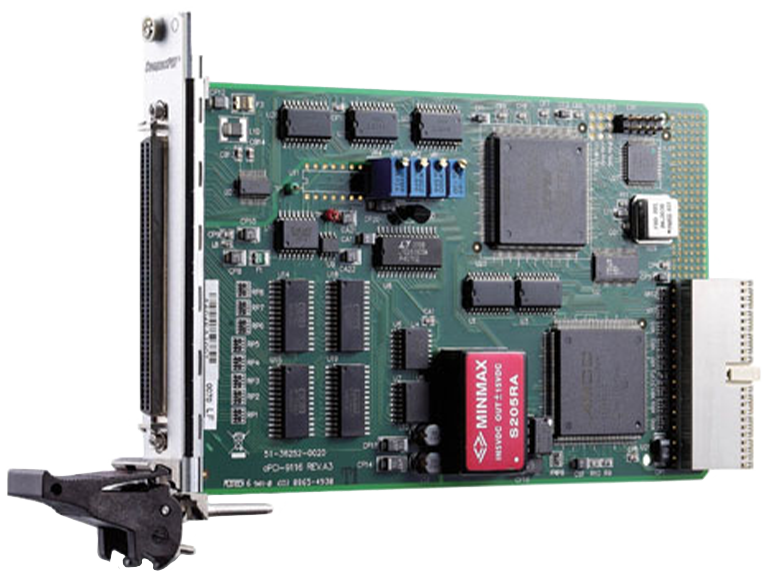

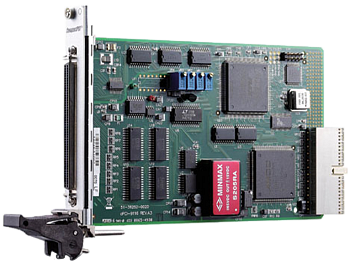

cPCI-9116
64-CH 16-Bit 250kS/s Multi-Function DAQ Card
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- PICMG 2.0 Rev 2.1
- 64-CH single-ended or 32-CH differential input
- 8-CH TTL digital inputs and 8-CH TTL digital outputs
- Operating temperature: 0°C to +55°C (32°F to 131°F)
64-CH 16-Bit 250kS/s Multi-Function DAQ Card.
Features:
- 3U/6U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1)
- 16-Bit A/D resolution, up to 250 kS/s sampling rate
- Up to 250 kS/s sampling rate
- 64-CH single-ended or 32-CH differential inputs
- Onboard 1 k-sample A/D FIFO
- Bipolar or unipolar analog input ranges
- Programmable gains of x1, x2, x4, x8
- 512-configuration channel-gain queue
- Bus-mastering DMA for analog inputs
- 8-CH TTL digital inputs and 8-CH TTL digital outputs
- 1-CH 16-Bit general purpose timer/counter
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Number of channels | 64 single-ended or 32 differential (software selectable per channel) |
| Resolution | 16 Bit |
| Maximum sampling rate | 250 kS/s |
| Input signal ranges (software programmable) |
(Gain 1) Bipolar: ±5 V Unipolar: 0 to 10 V (Gain 2) Bipolar: ±2.5 V Unipolar: 0 to 5 V (Gain 4) Bipolar: ±1.25 V Unipolar: 0 to 2.5 V (Gain 8) Bipolar: ±0.625 V Unipolar: 0 to 1.25 V |
| Accuracy |
(Gain 1) 0.01% of FSR ± 1 LSB (Gain 2, 4) 0.02% of FSR ± 1 LSB (Gain 8) 0.04% of FSR ± 1 LSB |
| Input Coupling | DC |
| Overvoltage protection | Continuous ±35 V |
| Input Impedance | 1 GΩ |
| Trigger modes | Software, pre-trigger, post-trigger, middle trigger, delay trigger, and repeated trigger |
| Channel-gain queue size | 512 configurations |
| FIFO buffer size | 1 k samples |
| Data transfers | polling, interrupt, bus-mastering DMA |
|
Digital I/O |
|
| Number of channels | 8 inputs and 8 outputs |
| Resolution | 16 Bit |
| Compatibility | 5 V/TTL |
| Data transfers | programmed I/O |
|
General-Purpose timer/counter |
|
| Number of channels | 1 |
| Resolution | 16 Bit |
| Compatibility | 5 V/TTL |
| Base clock available | 24 MHz, external clock up to 24 MHz |
|
General Specifications |
|
| I/O connector | 100-pin SCSI-II female |
| Power requirements |
+5 V, 560 mA typical +12 V, 100 mA typical |
| Dimensions (not including connectors) | 160 mm x 100 mm (6.24" x 3.9") (3U) |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 55˚C (32˚F to 131˚F ) |
| Storage temperature | -20˚C to 80˚C (-4˚F to 176˚F) |
| Humidity | 5 to 95%, non-condensing |
| Model | Description |
| cPCI‑9116 | 64-CH 16-Bit 250 kS/s Multi-Function DAQ Module |
| DIN‑100S‑01 | Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included) |
| ACL‑102100‑1 | 100-pin SCSI-II cable (mating AMP-7877082-9), 1M |
