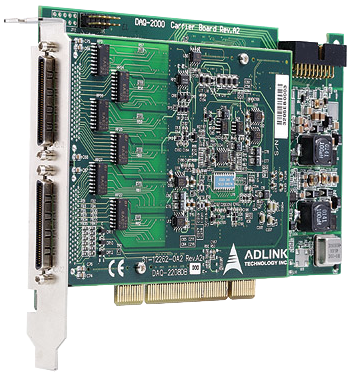

DAQ-2208
96-CH 12-Bit 3 MS/s High-Density Analog Input Card
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 96-CH single-ended or 48-CH differential inputs
- 12-bit A/D and sampling rate up to 3MS/s
- Full auto calibration
- Operating temperature: 0°C to 55°C
The DAQ/DAQe/PXI-2208 card is an advanced data acquisition card based on the 32-bit PCI or PCI Express architecture. High performance designs and state-of-the-art technology make these cards ideal for data logging and signal analysis applications in medical, process control, etc.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Resolution | 12 Bit, no missing codes |
| Number of channels | 96 single-ended or 48 differential |
| Channel gain queue size | 1024 |
| Maximum sampling rate | 3 MS/s |
| Programmable gain | 1, 2, 4, 5, 8, 10, 20, 40, 50, 200 |
| Bipolar input ranges | ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±0.5 V, ±0.25 V, ±0.2 V, ±0.05 V |
| Unipolar input ranges | 0-10 V, 0-5 V, 0-4 V, 0-2.5 V, 0-1 V, 0-0.5 V, 0-0.4 V, 0-0.1 V |
| Offset error | ±2 mV |
| Gain error | ±0.06% of FSR |
| Input coupling | DC |
| Overvoltage protection | Power on: Continuous ±30 V, Power off: Continuous ±15 V |
| Input impedance | 1 GΩ/100 pF |
| Trigger sources | Software, external digital/analog trigger, SSI bus |
| Trigger modes | Pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger |
| FIFO buffer size | 1 k samples |
| Data transfers | Polling, scatter-gather DMA |
|
Digital I/O |
|
| Number of channels | 24-CH 8255 programmable input/output |
| Compatibility | 5 V/TTL |
| Data transfers | Programmed I/O |
|
General Specifications |
|
| Auto Calibration | Yes (+5 V, ±2 ppm/˚C) |
| Dimensions |
160 mm x 100 mm (6.24" x 3.9") (not including connectors) (PXI-2208 series) 175 mm x 107 mm (6.82" x 4.17") (not including connectors) (DAQ-2208 series) 168 mm x 107 mm (6.55" x 4.17") (not including connectors) (DAQe-2208 series) |
| Connector | 68-pin VHDCI female x 2 |
| Power requirements |
+5 V 0.95 A typical (PXI/DAQ-2208) +3.3 V 0.81 A, +12 V 0.568 A typical (DAQe-2208) |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 55˚C (32˚F to 131˚F) |
| Storage temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
| Humidity | 5 to 95%, non-condensing |
| Model | Description |
| DAQ-2208 | 96-CH 12-Bit 3 MS/s High-Density Analog Input Card |
| Accessory | |
| DIN-68S-01 | Termination board with one 68-pin SCSI-II connector with DIN socket |
| ACL‑10568‑1 | 68-pin SCSI-VHDCI cable (mating with AMP-787082-7), 1M |
| ACL-SSI-4 | SSI Bus cable for four devices |
