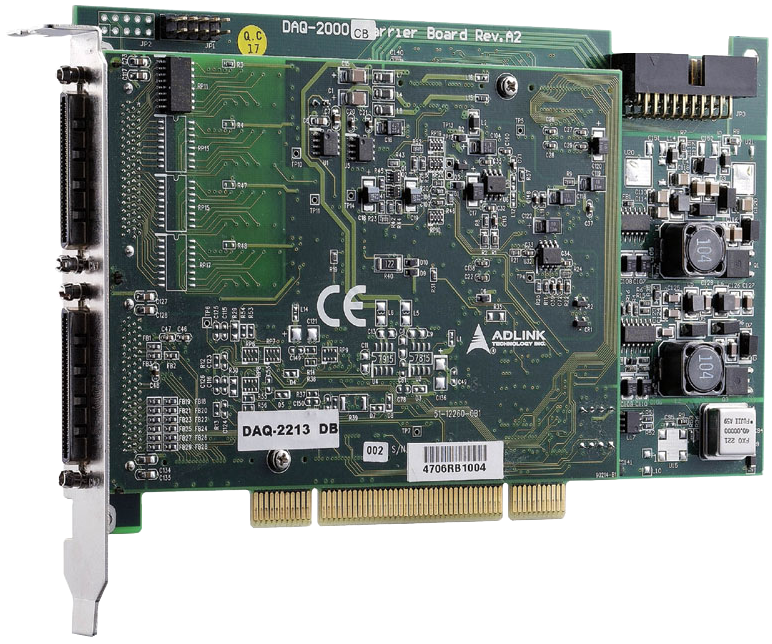

DAQ-2213/2214
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 16-CH single-ended or 8-CH differential inputs
- 16-bit A/D and sampling rate up to 250kS/s
- Full auto calibration
- Operating temperature: 0°C to +55°C (32°F to 131°F)
The ADLINK DAQ/DAQe-221x Series is a 16-ch low cost, high performance multifunction DAQ card that can sample up to 16 analog input channels with different gain settings and scan sequences, making it ideal for dealing with analog signals with various input ranges and sampling speeds.
The ADLINK DAQ/DAQe-221x Series also offers differential modes for 8 AI channels in order to achieve maximum noise elimination.
DAQ/DAQe-221x Series has 2-ch 12-bit analog output with wave form generation capabilities. The DAQ/DAQe-221x Series also features analog and digital triggering, 24-ch programmable digital I/O lines, and 2-ch 16-bit general-purpose timers/counters.
Like all the other members in DAQ/DAQe-2000 family, multiple DAQ/DAQe-221x Series cards can be synchronized through the system synchronization interface (SSI) bus. Auto-calibration adjusts the gain and offset to within specified accuracies eliminate the need to manually adjust trimpots.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Resolution | 16 Bit, no missing codes |
| Number of channels | 16 single-ended or 8 differential (software selectable per channel) |
| Channel gain queue size | 512 |
| Maximum update rate | 250 kS/s |
| Programmable gain | 1, 2, 4, 8 |
| Bipolar input ranges | ±10 V, ±5 V, ±2.5 V, ±1.25 V |
| Unipolar input ranges | 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V |
| Offset error | ±1 mV |
| Gain error | ±0.06% of FSR |
| Input Coupling | DC |
| Overvoltage protection | Power on: Continuous ±30 V, Power off: Continuous ±15 V |
| Input Impedance | 1 GΩ/100 pF |
| Trigger sources | Software, external digital/analog trigger, SSI bus |
| Trigger modes | Pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger |
| FIFO buffer size | 1 k samples |
| Data transfers | Polling, scatter-gather DMA |
|
Analog Output (DAQ/DAQe-2214) |
|
| Resolution | 12 Bit |
| Number of channels | 2 voltage outputs |
| Output ranges | 0-10 V, ±10 V, 0-AOEXTREF, ±AOEXTREF |
| Maximum update rate | 1 μs |
| Slew rate | 20 V/μs |
| Settling time | 3 μs to ±0.5 LSB accuracy |
| Offset error | ±2 mV |
| Gain error | ±0.04% of max. output |
| Driving capacity | ±5 mA |
| Stabililty | Any passive load, up to 1500 pF |
| Trigger sources | Software, external digital/analog trigger, SSI bus |
| Trigger modes | Post-trigger, delay-trigger, and repeated trigger |
| FIFO buffer size | 1 k samples |
| Data transfers | Programmed I/O, scatter-gather DMA |
|
Digital I/O |
|
| Number of channels | 24-CH 8255 programmable input/output |
| Compatibility | 5 V/TTL |
| Data transfers | Programmed I/O |
|
General-Purpose Timer/Counter |
|
| Resolution | 16 Bit |
| Number of channels | 2 |
| Compatibility | 5 V/TTL |
| Base clock available | 40 MHz, external clock up to 10 MHz |
|
General Specifications |
|
| Auto Calibration | Yes (+5 V, ±2 ppm/˚C) |
| Dimensions |
175 mm x 107 mm (not including connectors) (DAQ-2213/2214) 168 mm x 107 mm (not including connectors) (DAQe-2213/2214) |
| Connector | 68-pin VHDCI-type female |
| Power requirements |
+5 V 1.2 A typical (DAQ-2213) +3.3 V 0.84 A, +12 V 0.604 A typical (DAQe-2213) +5 V 1.2 A typical (DAQ-2214) +3.3 V 0.77 A, +12 V 0.572 A typical (DAQe-2214) |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 55˚C (32˚F to 131˚F ) |
| Storage temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
| Humidity | 5 to 95%, non-condensing |
| Model | Description |
| DAQ‑2213 | Low-Cost 16-CH 16-Bit 250 kS/s Multi-Function DAQ Card without Analog Outputs |
| DAQ‑2214 | Low-Cost 16-CH 16-Bit 250 kS/s Multi-Function DAQ Card |
| Accessory | |
| DIN-68S-01 | Termination board with one 68-pin SCSI-II connector with DIN socket |
| ACL‑10568‑1 | 68-pin SCSI-VHDCI cable (mating with AMP-787082-7), 1M |
| ACL-SSI-4 | SSI Bus cable for four devices |
