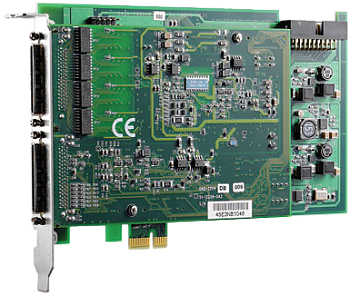

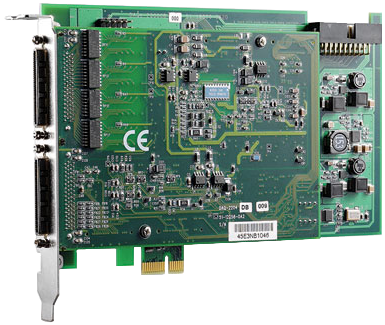

DAQe-2200 Series
64-CH, 12/16-Bit, Up to 3 MS/s Multi-Function DAQ PCI Express Cards
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 64-CH single-ended or 32-CH differential analog inputs
- x1 lane PCI Express Interface
- 2-CH 12-bit multiplying analog outputs with waveform generation
- Operating temperature: 0°C to 55°C
ADLINK DAQe-2200 series are high-density and high-performance multifunction DAQ PCI Express cards.
The devices can sample up to 64 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with high-density analog signals with various input ranges and sampling speeds.
These devices also offer differential mode for 32 AI channels in order to achieve maximum noise elimination.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Resolution |
12 Bit, no missing codes (PXI/DAQ/DAQe-2204) 16 Bit, no missing codes (PXI/DAQ/DAQe-2205, PXI/DAQ/DAQe-2206) |
| Number of channels | 64 single-ended or 32 differential (software selectable per channel) |
| Channel gain queue size | 512 |
| Maximum sampling rate |
3 MS/s (PXI/DAQ/DAQe-2204) 500 kS/s (PXI/DAQ/DAQe-2205) 250 kS/s (PXI/DAQ/DAQe-2206) |
| Programmable gain |
1, 2, 4, 5, 8, 10, 20, 40, 50, 200 (PXI/DAQ/DAQe-2204) 1, 2, 4, 8 (PXI/DAQ/DAQe-2205, PXI/DAQ/DAQe-2206) |
| Bipolar input ranges | Max. : ±10 V, Min. : ±0.05 V±10 V, ±5 V, ±2.5 V, ±1.25 V±10 V, ±5 V, ±2.5 V, ±1.25 V |
| Unipolar input ranges | Max. : 0-10 V, Min. : 0-0.1 V0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V |
| Offset error |
±2 mV (PXI/DAQ/DAQe-2204) ±1 mV (PXI/DAQ/DAQe-2205) ±2 mV (PXI/DAQ/DAQe-2206) |
| Gain error |
±0.06% of FSR (PXI/DAQ/DAQe-2204) ±0.08% of FSR (PXI/DAQ/DAQe-2205) ±0.06% of FSR (PXI/DAQ/DAQe-2206) |
| Input coupling | DC |
| Overvoltage protection | Power on: Continuous ±30 V, Power off: Continuous ±15 V |
| Input impedance | 1 GΩ/100 pF |
| CMRR (gain = 1) |
90 dB (PXI/DAQ/DAQe-2204) 83 dB (PXI/DAQ/DAQe-2205, PXI/DAQ/DAQe-2206) |
| Settling time |
1 μs to 0.1% error (PXI/DAQ/DAQe-2204) 2 μs to 0.1% error (PXI/DAQ/DAQe-2205) 4 μs to 0.01% error (PXI/DAQ/DAQe-2206) |
| -3 dB small signal bandwidth (@Bipolar +/-10V Gain=1) |
2 MHz (PXI/DAQ/DAQe-2204) 850kHz (PXI/DAQ/DAQe-2205) 600kHz (PXI/DAQ/DAQe-2206) |
| Trigger sources | Software, external digital/analog trigger, SSI bus |
| Trigger modes | Pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger |
| FIFO buffer size | 1 k samples |
| Data transfers | Polling, scatter-gather DMA |
|
Analog Output |
|
| Resolution | 12 Bit |
| Number of channels | 2 voltage outputs |
| Output ranges | 0-10 V, ±10 V, 0-AOEXTREF, ±AOEXTREF |
| Maximum update rate | 1 μs |
| Slew rate | 20 V/μs |
| Settling time | 3 μs to ±0.5 LSB accuracy |
| Offset error |
±1 mV (PXI/DAQ/DAQe-2204) ±2 mV (PXI/DAQ/DAQe-2205) ±1 mV (PXI/DAQ/DAQe-2206) |
| Gain error |
±0.02% of FSR (PXI/DAQ/DAQe-2204) ±0.04% of FSR (PXI/DAQ/DAQe-2205) ±0.02% of FSR (PXI/DAQ/DAQe-2206) |
| Driving capacity | ±5 mA |
| Stability | Any passive load, up to 1500 pF |
| Trigger sources | Software, external digital/analog trigger, SSI bus |
| Trigger modes | Post-trigger, delay-trigger, and repeated trigger |
| FIFO buffer size | 1 k samples |
| Data transfers | Programmed I/O, scatter-gather DMA |
|
Digital I/O |
|
| Number of channels | 24-CH 8255 programmable input/output |
| Compatibility | 5 V/TTL |
| Data transfers | Programmed I/O |
|
General-Purpose Timer/Counter |
|
| Number of channels | 2 |
| Resolution | 16-Bit |
| Base clock available | 40 MHz, external clock up to 10 MHz |
|
General Specifications |
|
| Auto Calibration | Yes (+5 V, ±2 ppm/˚C) |
| Dimensions |
160 mm x 100 mm (6.24" x 3.9") (not including connectors) (PXI-2200 series) 175 mm x 107 mm (6.82" x 4.17") (not including connectors) (DAQ-2200 series) 168 mm x 107 mm (6.55" x 4.17") (not including connectors) (DAQe-2200 series) |
| Connector | 68-pin VHDCI female x 2 |
| Power requirements |
+5 V 1.3 A typical (PXI/DAQ-2204) +3.3 V 0.9 A, +12 V 0.564 A typical (DAQe-2204) +5 V 1.2 A typical (PXI/DAQ-2205) +3.3 V 0.81 A, +12 V 0.568 A typical (DAQe-2205) +5 V 1.2 A typical (PXI/DAQ-2206) +3.3 V 0.756 A, +12 V 0.584 A typical (DAQe-2206) |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 55˚C (32˚F to 131˚F) |
| Storage temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
| Humidity | 5 to 95%, non-condensing |
| Model | Description |
| DAQe-2204 | 64-CH 12-Bit 3 MS/s Multi-Function PCI Express DAQ Card |
| DAQe-2205 | 64-CH 16-Bit 500 kS/s Multi-Function PCI Express DAQ Card |
| DAQe-2206 | 64-CH 16-Bit 250 kS/s Multi-Function PCI Express DAQ Card |
| Accessory | |
| DIN-68S-01 | Termination board with one 68-pin SCSI-II connector with DIN socket |
| ACL‑10568‑1 | 68-pin SCSI-VHDCI cable (mating with AMP-787082-7), 1M |
| ACL-SSI-4 | SSI Bus cable for four devices |
