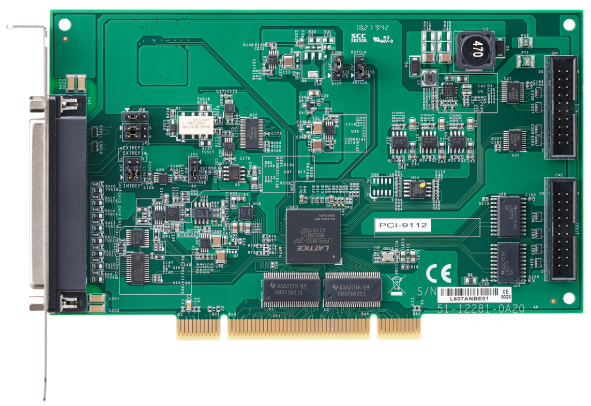

PCI-9112
16-CH 12-Bit 110 kS/s Multi-Function DAQ Card
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 16-CH single-ended or 8-CH differential inputs
- 16-CH TTL DI and 16-CH TTL DO
- Up to 110 kS/s sampling rate
- Operating temperature: 0°C to +60°C
The PCI-9112 is a 12-bit, 110KHz, multifunction DAS data acquisition card. The PCI-9112 DAS card uses state-of-the-art technology, making it ideal for data logging and signal analysis applications in medicine, process control, etc.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Number of channels | 16 single-ended or 8 differential |
| Resolution | 12 bits |
| Conversion time | 8 µs |
| Maximum sampling rate | 110 kS/s |
| Input signal ranges |
(Gain 0.5) bipolar: ±10 V (Gain 1) bipolar: ±5 V unipolar: 0 to 10 V (Gain 2) bipolar: ±2.5 V unipolar: 0 to 5 V (Gain 4) bipolar: ±1.25 V unipolar: 0 to 2.5 V (Gain 8) bipolar: ±0.625 V unipolar: 0 to 1.25 V |
| Accuracy |
(Gain 0.5, 1) 0.01% of FSR ± 1 LSB (Gain 2, 4) 0.02% of FSR ± 1 LSB (Gain 8) 0.04% of FSR ± 1 LSB |
| Input Coupling | DC |
| Overvoltage protection | Continuous ±35 V |
| Input Impedance | 1 GΩ |
| Trigger modes | software |
| Data transfers | programmed I/O, interrupt, bus-mastering DMA |
|
Analog Output |
|
| Number of channels | 2x voltage outputs |
| Resolution | 12 bits |
| Output ranges (software programmable) | Unipolar: 0 to 10 V, 0 to 5 V, 0 to EXTREF |
| Output driving capacity | ±5 mA max |
| Settling time | 30 µs to 0.5 LSB |
| Data transfers | programmed I/O |
|
Digital I/O |
|
| Number of channels | 16 inputs and 16 outputs |
| Compatibility | 5 V/TTL |
| Data transfers | programmed I/O |
|
General-Purpose Timer/Counter |
|
| Number of channels | 1 |
| Resolution | 12 bit |
| Compatibility | 5 V/TTL |
| Base clock available | 2 MHz, external clock to 10 MHz |
|
Calibration |
|
| PCI-9112 | Calibrate Analog Output on 5V |
| PCI-9112A | Calibrate Analog Output on 10V |
|
General Specifications |
|
| I/O connector | 37-pin D-sub female |
| Power requirements |
PCI-9112A: +5 V, 460 mA typical +12 V, 110 mA typical |
| Dimensions (not including connectors) | 175 mm x 107 mm (6.82" x 4.17") |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 60˚C (32˚F to 140˚F) |
| Storage temperature | -20˚C to 80˚C (-4˚F to 176˚F) |
| Humidity | 5 to 95%, non-condensing |
| Model | Description |
| PCI‑9112 | 16-CH 12-Bit 110 kS/s Multi-Function DAQ Card |
| PCI‑9112A | 16-CH 12-Bit 110 kS/s Multi-Function DAQ Card (AO Calibrated on 10V) |
