PCI-9221
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 16-CH single-ended or 8-CH differential analog input
- Up to 250 kS/s sampling rate
- Not recommended to be used in the system with greater than 2GB memory
- Operating temperature: 0°C to +45°C (32°F to 113°F)

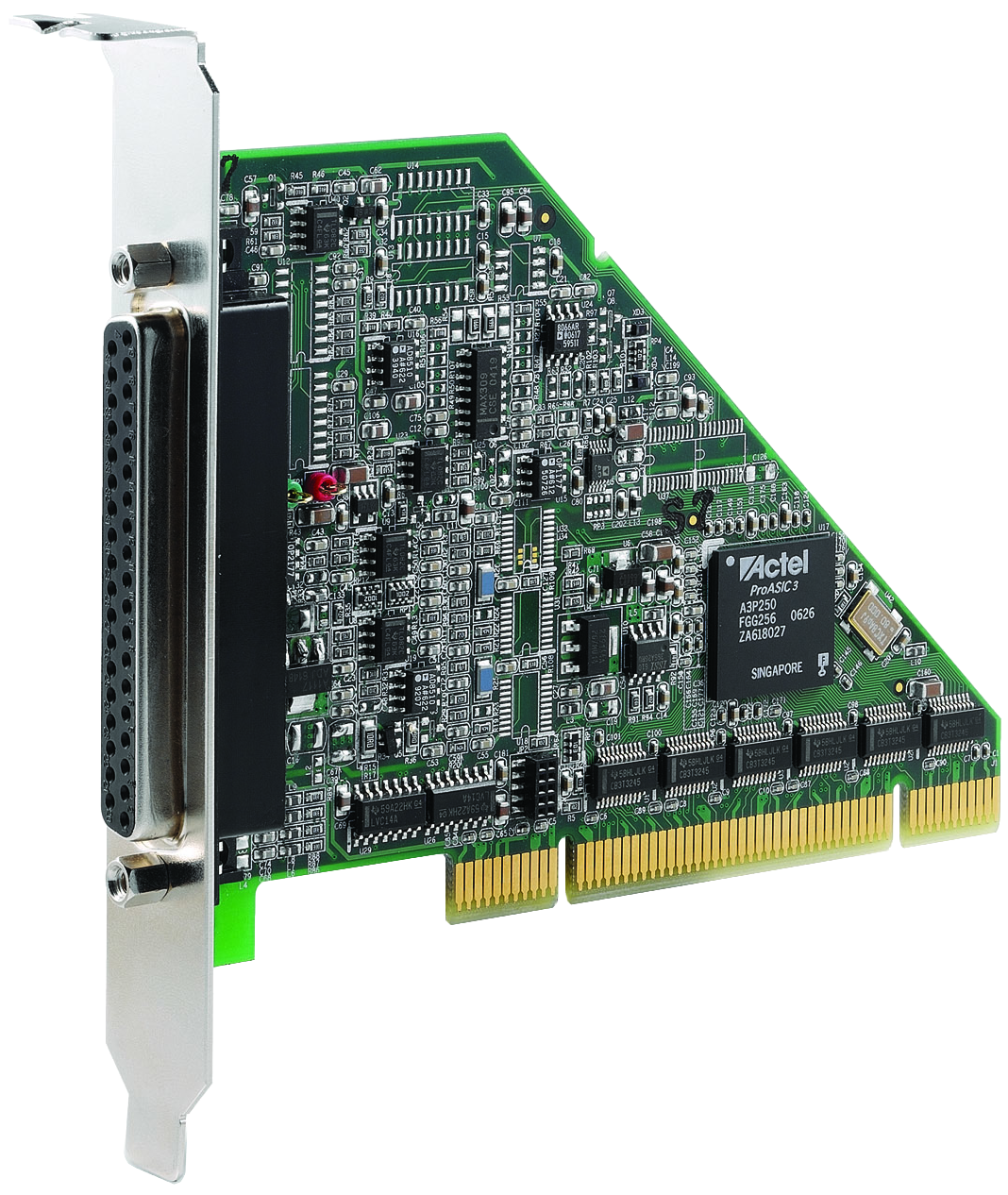

The ADLINK PCI-9221 is a 16-bit high-resolution and low‑cost multi-function DAQ card, with 16-CH single ended or 8-CH differential input capable of up to 250 kS/s sampling rate.
In addition, the PCI-9221 comes with a 2-CH 16-bit static analog output and programmable function I/O. The software-programmable function I/O supports a variety of applications, including TTL digital I/O, general-purpose timer/counter, encoder input, and PWM output.
The flexible function I/O makes the PCI-9221 the best single-board solution for combined data acquisition and simple motion control functionalities. Ideal for manufacturing, laboratory research, and factory automation, the PCI-9221 comes with all the functions you need at an affordable price.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Resolution | 16 Bit |
| Number of channels | 16 single-ended or 8 differential |
| Maximum sampling rate (single channel) | 250 kS/s |
| Programmable gain | 1, 5, 10, 25 |
| Input range | ±5 V, ±1 V, ±500 mV, ±200 mV |
| Offset error | ±0.7 mV typical, after calibration |
| Gain error | ±0.015% of FSR, after calibration |
| FIFO buffer size | 1 k samples |
| Trigger sources | Software, external digital |
| Trigger mode | Post-trigger |
| Input Coupling | DC |
| Overvoltage protection | ±10 V |
| Input Impedance | High impedance > 1 GΩ |
| Data transfers | Polling, scatter-gather DMA |
|
Analog Output |
|
| Resolution | 16 Bit |
| Number of channels | 2 voltage outputs |
| Maximum update rate | 1.25 kS/s (static) |
| Output range | ±5 V |
| Slew rate | 0.014 V/μs |
| Settling time (0.1% of full scale) | 1396 μs |
| Offset error | ±1 mV |
| Gain error | ±0.02% FSR |
| Rising time | 390 μs |
| Falling time | 395 μs |
|
Function I/O |
|
| Mode |
Digital I/O, General Timer/Counter, Pulse Generation The function I/O and encoder inputs share the same I/O pins of the PCI-9221. Only one of these modes can be selected. |
| Digital I/O | 8 DI/4 DO (5 V TTL level) |
| General Timer/Counter | Two 32-Bit, Base clock: 40 MHz, external to 10 MHz |
| Pulse generation | Two PWM outputs (Modulation frequency: 0.005 Hz to 5 MHz; Duty cycle: 1%-99%) |
|
Encoder Input |
|
| Number of channels | 2 (Dedicated) |
| Encoder type | CW/CCW encoder, x 1 AB phase encoder, x 2 AB phase encoder, x 4 AB phase encoder |
|
General Specifications |
|
| PCI Bus | 5 V and 3.3 V universal PCI bus |
| Auto Calibration | Yes |
| I/O Connector | One 37-pin D-Sub connector |
| Power requirements | +5 V 1A typical,+12 V 100mA typical,-12 V 100mA typical |
| Dimensions | 120 mm x 87 mm (4.68" x 3.39") |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 45˚C (32˚F to 113˚F ) |
| Storage temperature | -20˚C to 80˚C (-4˚F to 176˚F) |
| Humidity | 5 to 95%, non-condensing |
| Model | Description |
| PCI‑9221 | Low-Cost 16-CH 16-Bit 250 kS/s Multi-Function DAQ Card without Analog Outputs |
| Accessory | |
| DIN-37D-01 | Terminal Board with One 37-pin D-Sub Connector and Din-Rail Mounting (Cables are not included) |
| ACL‑10137‑1MM | 37-pin D-sub male/male cable, 1M |
