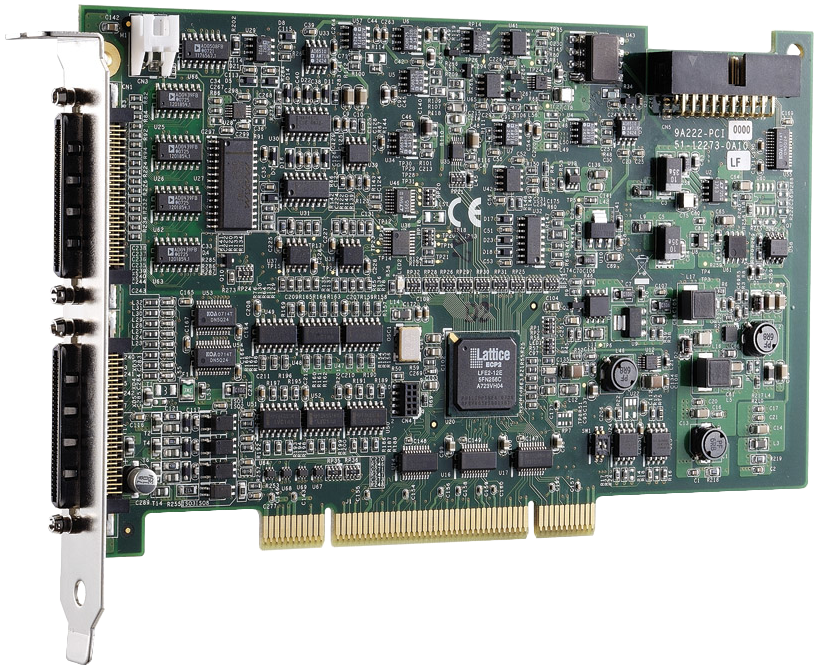

PCI-9222/9223
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Programmable function I/O
- 2-CH 16-bit simultaneous analog outputs
- 2-CH 4 MHz encoder inputs
- Operating temperature: 0°C to +55°C (32°F to 131°F)
The ADLINK PCI-9222/PCI-9223 is a 16-bit, 16/32-CH, 250/500 KS/s high performance DAQ card with 8 different input ranges. It also features 2-CH 16-bit analog outputs capable of a 1 MS/s update rate, 2-CH encoder inputs, and programmable function I/O.
The software-programmable function I/O supports a variety of applications, including TTL digital I/O, high-speed DIO, general-purpose timer/counter, pulse generation, and PWM output. Analog input, analog output, and function I/O at full speed simultaneously, and multiple cards can be synchronized through the SSI (System Synchronization Interface) bus if users need more channels than a single board can provide.
Ideal for mixed-signal tests, laboratory research, and factory automation, PCI-9222/PCI-9223 is the best single-board solution on the market providing the best integration capability of multiple tasks with high performance and an affordable price.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Resolution | 16 Bit |
| Number of channels |
16 single-ended or 8 differential (PCI-9222) 32 single-ended or 16 differential (PCI-9223) |
| Maximum sampling rate (single channel) |
250 kS/s (PCI-9222) 500 kS/s (PCI-9223) |
| Programmable gain | 1, 2, 4, 5, 8, 10, 20, 40 |
| Input range | ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±500 mV, ±250 mV |
| Offset error | ±0.7 mV typical, after calibration |
| Gain error | ±0.015% of FSR, after calibration |
| FIFO buffer size | 1 k samples |
| Trigger sources | Software, external digital, SSI |
| Trigger mode | Post-trigger, retrigger, gate trigger |
| Input Coupling | DC |
| Overvoltage protection | Continuous ±30 V |
| Input Impedance | High impedance > 1 GΩ |
| Data transfers | Polling, scatter-gather DMA |
|
Analog Output |
|
| Resolution | 16 Bit |
| Number of channels | 2 voltage outputs |
| Maximum update rate | 1 MHz (simultaneous update) |
| FIFO | 512 |
| Output range | ±10 V |
| Slew rate | 20 V/μs |
| Settling time (0.1% of full scale) | 2.6 μs |
| Offset error | ±1 mV |
| Gain error | ±0.01% FSR |
| Rising time | 0.67 μs |
| Falling time | 0.705 μs |
|
Function I/O |
|
| Mode | Digital I/O, General Timer/Counter, Pulse Generation |
| Digital I/O | 16 DO (3.3 V TTL Level) / 16 DI (3.3 V or 5 V TTL Level) |
| General Timer/Counter | Four 32-Bit, Base clock: 80 MHz, external to 10 MHz |
| Pulse generation | Four PWM outputs (modulation frequency: 0.01 Hz to 5 MHz; Duty cycle: 1%-99%) |
|
Encoder Input |
|
| Number of channels | 2 (Dedicated) |
| Encoder type | CW/CCW encoder, x 1 AB phase encoder, x 2 AB phase encoder, x 4 AB phase encoder |
|
General Specifications |
|
| PCI Bus | 5 V and 3.3 V universal PCI bus |
| Auto Calibration | Yes |
| I/O Connector | Two 68-pin SCSI-VHDCI female |
| Power requirements | +5 V 1.2 A typical, +12 V 760 mA typical, -12 V 50 mA typical |
| Dimensions | 175 mm x 107 mm (6.82" x 4.17")(not including connectors) |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 55˚C (32˚F to 131˚F ) |
| Storage temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
| Humidity | 5 to 95%, non-condensing |
| Model | Description |
| PCI‑9222 | 16-CH 16-bit 250 KS/s Multi-Function DAQ Card with Encoder Input |
| PCI‑9223 | 32-CH 16-bit 500 KS/s Multi-Function DAQ Card with Encoder Input |
| Accessory | |
| ACL‑10568‑1 | 68-Pin SCSI-VHDCI Cable, 1M |
| ACL-SSI-4 | SSI bus cable for four devices |
| DIN-68S-01 | Termination board with one 68-pin SCSI-II connector with DIN socket |
