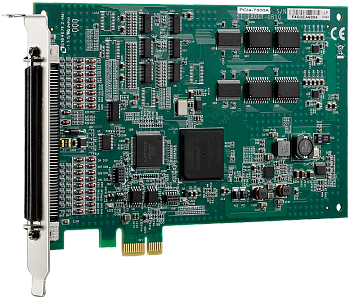

PCIe-7300A
32-CH 80 MB/s High-Speed Digital I/O Card
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Multiple I/O port configurations: 16-CH DI & 16-CH DO, 32-CH DI or 32-CH DO
- Data transfer rate up to 80Mbytes/s
- x1 lane PCI Express interface
- Operating temperature: 0°C to +60°C
ADLINK PCIe-7300A is an ultra-high-speed digital I/O card. It consists of 32 digital input/output channels.
High performance designs and state-of-the-art technology make this card ideal for a wide range of applications, such as high-speed data transfer, digital pattern generation and digital pattern capture applications, and logic analyzer applications. Trigger signals are available to start the data acquisition of pattern generation.
| Technical specifications | |
|
Digital I/O |
|
|---|---|
| Channels (Software configurable) |
16 DI & 16 DO 32 DI 32 DO |
| Compatibility | 5 V/TTL |
| Digital logic levels |
Input high voltage: 2-5.25 V Input low voltage: 0-0.8 V Output high voltage: 2.7 V minimum Output low voltage: 0.5 V maximum |
| Input load |
Terminator OFF: Input high current: 1 mA Input low current: 20 mA Terminator ON: Termination resistor: 111 Ω Termination voltage: 2.9 V Input high current: 1 mA Input low current: 22.4 mA |
| Output driving capacity |
Source current: 8 mA Sink current: 48 mA |
| Data transfers | Bus-mastering DMA with Scatter/Gather |
| Data width | 32/16/8 bits (programmable) |
| Data transfer count |
2 M double words (8 MB) for non-chaining mode DMA No limitation for chaining mode (scatter/gather) DMA |
| Max transfer rate |
DO: 80 MBytes/s, 32-bit output @ 20 MHz DI: 80 MBytes/s, 32-bit input @ 20 MHz |
| Trigger |
ADI_TRG for digital inputs, DO_TRG for digital outputs Compatibility: 5 V/TTL Trigger types: rising or falling edges Minimum pulse width: 32 ns |
| Clocking mode |
Internal clock sources: 20 MHz, 10 MHz, Timer#0 output (digital input pacer) and Timer #1 output (digital output pacer) External clock up to 40 MHz Handshaking Burst handshaking |
| Programmable Counter |
Base clock: 10 MHz Timer 0 as digital input pacer Timer 1 as digital output pacer Timer 2 as interrupt source |
|
Auxiliary digital I/O |
|
| Number of channels |
4-ch digital inputs 4-ch digital outputs |
| Compatibility | 5 V/TTL |
| Data transfers | Programmed I/O |
|
General Specifications |
|
| I/O connector | One 100-pin SCSI-II female |
| Power requirements |
12 V: 119 mA typical (Onboard terminator off) 287 mA typical (Onboard terminator on) 3.3 V: 499 mA typical (Onboard terminator off) 543 mA typical (Onboard terminator on) |
| Dimensions (not including connectors) | 168 mm x 112 mm |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 60˚C |
| Storage temperature | -20˚C to 80˚C |
| Humidity | 5% to 95%, non-condensing |
| Model | Description |
| PCIe-7300A | 80MB/S High Speed 32-CH Digital I/O PCI Express Card |
| Accessory | |
| DIN-100S-01 | Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included) |
| ACL‑102100‑1 | 100-pin SCSI-II cable (mating with AMP-787082-9), 1M |
