PCM-MIO-A-1
PC/104 – 16 ADC, 8 DAC, and 48 Digital I/O
Vendor:WinSystems
- Details
- Specification
- Order information
- 16 ADC, 8 DAC, and 48 Digital I/O
- Channels are independently software programmable
- No calibration required
- Operating temperature: -40°C to +85°C

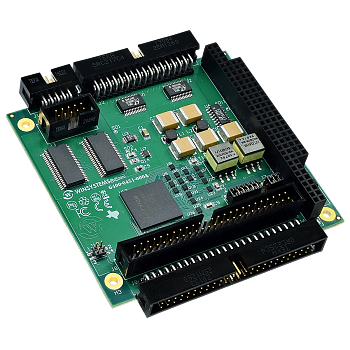

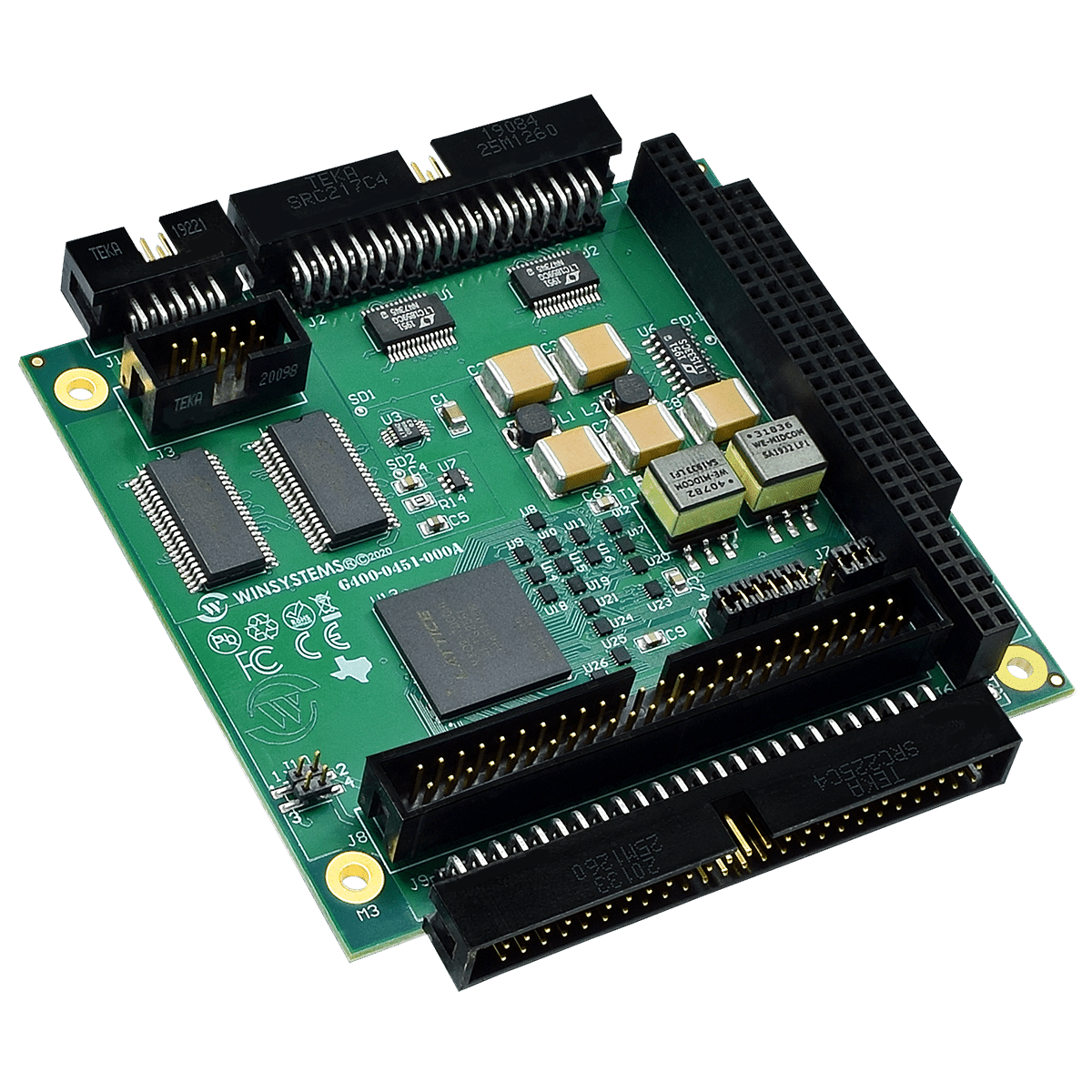

The PCM-MIO-A-1 is a versatile, PC/104-based analog input, analog output, and digital I/O board designed for high-accuracy and high-channel-count analog and digital I/O.
The board is based upon Linear Technology’s precision converters and voltage references which require no external calibration.
The digital I/O utilizes WINSYSTEMS’ versatile WS16C48 Universal I/O controller functionality, also available on many of our SBCs and other I/O products.
| Technical specifications | |
| Analog Inputs |
16-bit Analog-to-Digital Converter (ADC) with sample-and-hold circuit Input ranges: 0-5V, 0-10V, ±5V, and ±10V Any combination up to 16 single-ended or eight differential input channels Each channel independently software programmable for input type and range ±25V input protection on each channel No missing codes over the full range Low-noise DC/DC reference for accuracy Programmable interrupt |
| Analog Outputs |
Eight, 12-bit Digital-to-Analog converters (DAC) Output ranges: 0-5V, 0-10V, ±2.5V, ±5V, ±10V, and -2.5V to 7.5V Channels are independently software programmable Output channels can be updated and cleared individually or simultaneously |
| Digital Inputs/Outputs |
48 Bidirectional lines with Input, Output, or Output with Readback, 24 capable of event-sense interrupt generation 12mA sink current per line |
| General |
No calibration required Standard 0.100” headers for easy cable access +5VDC operation 3.6 x 3.8 Inches (90 x 96mm) Custom OEM configurations available Compatible with industry-standard I/O racks |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | -40˚C to +85˚C |
| RoHS | Сompliant |
| Model | Description |
| PCM‑MIO‑A‑1 | PC/104 – 16 ADC, 8 DAC, and 48 Digital I/O |
