PXI-2000 Series
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 4-CH differential analog inputs
- 2-CH 12-bit multiplying analog outputs with waveform generation
- 24-CH TTL digital input/output
- Operating temperature: 0°C to +55°C (32°F to 131°F)

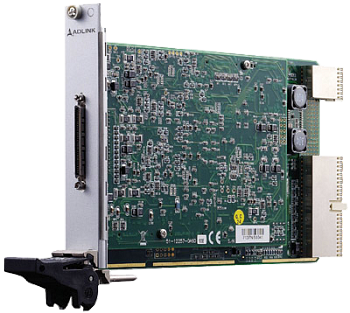

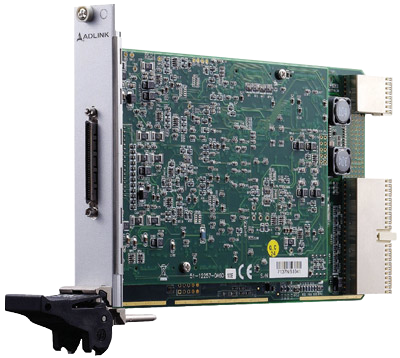

Adlink PXI-2010, PXI-2005 and PXI-2006 are simultaneous-sampling multifunction PXI modules to meet a wide range of application requirements.
These products can simultaneously sample 4 AI channels with differential input configurations to achieve maximum noise elimination. They also provide 2-CH 12-bit analog outputs with waveform generation capabilities, which can be performed together with analog input functions.
If more analog input or output channels are required, multiple modules can be synchronized through the PXI trigger bus. This makes the PXI-2000 series ideal for stimulus/response tests.
The PXI-2000 series also feature analog and digital triggering, 24-CH programmable digital I/O lines, and 2- CH 16-bit general-purpose timer/counters. The auto-calibration feature adjusts the gain and offset to a specified accuracy, eliminating the need to calibrate the modules by adjusting trimpots.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Resolution |
14 Bit (PXI/DAQ/DAQe-2010) 16 Bit, no missing codes (PXI/DAQ/DAQe-2005) 16 Bit, no missing codes (PXI/DAQ/DAQe-2006) |
| Number of channels | 4 simultaneous-sampling channels with differential input |
| Maximum sampling rate |
2 MS/s (PXI/DAQ/DAQe-2010) 500 kS/s (PXI/DAQ/DAQe-2005) 250 kS/s (PXI/DAQ/DAQe-2006) |
| Programmable gain | 1, 2, 4, 8 |
| Bipolar input ranges | ±10 V, ±5 V, ±2.5 V, ±1.25 V |
| Unipolar input ranges | 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V |
| Offset error |
±3 mV (PXI/DAQ/DAQe-2010) 2 mV (PXI/DAQ/DAQe-2005) ±1 mV (PXI/DAQ/DAQe-2006) |
| Gain error |
±0.1% of FSR (PXI/DAQ/DAQe-2010) ±0.04% of FSR (PXI/DAQ/DAQe-2005) ±0.03% of FSR (PXI/DAQ/DAQe-2006) |
| Input Coupling | DC |
| Overvoltage protection | Power on: Continuous ±35 V, Power off: Continuous ±15 V |
| Input Impedance | 1 GΩ/100 pF |
| Trigger sources | Software, external digital/analog trigger, SSI bus |
| Trigger modes | Pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger |
| FIFO buffer size |
8 k samples (PXI/DAQ/DAQe-2010) 512 samples (PXI/DAQ/DAQe-2005) 512 samples (PXI/DAQ/DAQe-2006) |
| Data transfers | Polling, scatter-gather DMA |
|
Analog Output |
|
| Resolution | 12 Bit |
| Number of channels | 2 voltage outputs |
| Output ranges | 0-10 V, ±10 V, 0-AOEXTREF, ±AOEXTREF |
| Maximum update rate | 1 μs |
| Slew rate | 20 V/μs |
| Settling time | 3 μs to ±0.5 LSB accuracy |
| Offset error |
±3 mV (PXI/DAQ/DAQe-2010) ±1 mV (PXI/DAQ/DAQe-2005) ±1 mV (PXI/DAQ/DAQe-2006) |
| Gain error |
±0.05% of max. output (PXI/DAQ/DAQe-2010) ±0.04% of max. output (PXI/DAQ/DAQe-2005) ±0.04% of max. output (PXI/DAQ/DAQe-2006) |
| Driving capacity | 5 mA |
| Stabililty | Any passive load, up to 1500 pF |
| Trigger sources | Software, external digital/analog trigger, SSI bus |
| Trigger modes | Post-trigger, delay-trigger, and repeated trigger |
| FIFO buffer size | 2 k samples |
| Data transfers | Programmed I/O, scatter-gather DMA |
|
Digital I/O |
|
| Resolution | 16 Bit |
| Number of channels | 2 |
| Compatibility | 5 V/TTL |
| Base clock available | 40 MHz, external clock up to 10 MHz |
|
General Specifications |
|
| Auto Calibration | Yes (+5 V, ±2 ppm/˚C) |
| Dimensions |
160 mm x 100 mm (not including connectors) (PXI-2000 series) 175 mm x 107 mm (not including connectors) (DAQ-2000 series) 168 mm x 107 mm (not including connectors) (DAQe-2000 series) |
| Connector | 68-pin VHDCI-type female |
| Power requirements |
+5 V 1.82 A typical +3.3 V 1.246 A, +12 V 0.448 A typical (DAQe-2010) +5 V 2.04 A typical +3.3 V 1.03 A, +12 V 0.75 A typical (DAQe-2005) +5 V 1.82 A typical +3.3 V 1.02 A, +12 V 0.67 A typical (DAQe-2006) |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 55˚C (32˚F to 131˚F ) |
| Storage temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
| Humidity | 5 to 95%, non-condensing |
| Safety Compliance | CE/FCC, Class A |
| Model | Description |
| PXI‑2010 | 4-CH 14-Bit 2 MS/s Simultaneous-Sampling Multi-Function PXI Module |
| PXI‑2005 | 4-CH 16-Bit 500 kS/s Simultaneous-Sampling Multi-Function PXI Module |
| PXI‑2006 | 4-CH 16-Bit 250 kS/s Simultaneous-Sampling Multi-Function PXI Module |
| Accessory | |
| ACL‑10568‑1 | 68-Pin SCSI-VHDCI Cable, 1M |
| ACL-SSI-4 | SSI bus cable for four devices |
| DIN-68S-01 | Termination board with one 68-pin SCSI-II connector with DIN socket |
