USB-1210
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Hi-Speed USB 2.0, and USB bus powered
- Analog and Digital triggering
- 500VDC Isolation & 256M samples FIFO
- Operating temperature: 0°C to 55°C (32°F to 131°F)

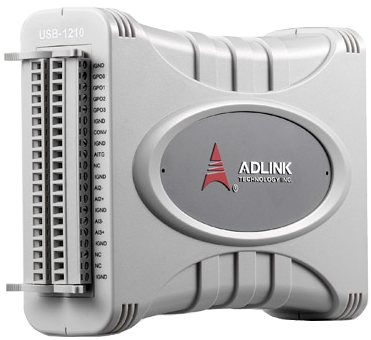

The USB-1210 is a 16-bit high-speed USB 2.0-based DAQ module equipped with 4 analog input channels providing simultaneous sampling at up to 2MS/s per channel.
The USB-1210 delivers high accuracy and excellent dynamic performance at maximum sampling rates, and flexible trigger functions. In addition, onboard 256M samples FIFO ensures no data loss during acquisition even when CPU or system loading is heavy.
The USB-1210 is USB bus-powered and equipped with removable screw-down terminals for easy device connectivity. The attached multifunctional stand can be used for desktop, rail, or wall mounting.
Suitable for high-speed data acquisition, laboratory and medical research, the USB-1210 provides a reliable measurement solution at an affordable price.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Resolution | 16-bit |
| Channels | 4 differential (simultaneous-sampling) |
| Maximum sampling rate | 2MS/s per channel |
| Programmable gain | 1, 5 |
| Input range | ±10V, ± 2 V |
| Offset error |
± 1mV (gain=1) ± 0.2mV (gain=5) |
| Gain error |
Typical: ± 0.01% of FSR (gain=1 & 5) Maximum: ± 0.02% of FSR (gain=1 & 5) |
| -3dB Bandwidth | 600 kHz |
| CMRR (fin=1 kHz) |
80 dB (gain=1) 90 dB (gain=5) |
| SFDR (fin=10 kHz) | 98 dB (gain=1 & 5) |
| SINAD (fin=10 kHz) | 89 dB (gain=1 & 5) |
| THD (fin=10 kHz) | -100 dB (gain=1 & 5) |
| SNR (fin=10 kHz) | 89 dB (gain=1 & 5) |
| ENOB (fin=10 kHz) | 14.3-bit (gain=1 & 5) |
| FIFO buffer size | 256M Samples |
| Trigger sources | Software, external digital, analog trigger ( from one analog input channel) |
| Trigger mode | Post trigger, pre-trigger, delay trigger, middle trigger, gate trigger, post or delay trigger with re-trigger |
| External A/D conversion source | Yes (from CONV) |
| Input coupling | DC |
| Overvoltage protection |
Power on: ± 35 V Power off: ± 15V |
| Input impedance | 1 GΩ |
| Data transfer | Programmed I/O, continuous (USB bulk transfer mode) |
|
Function I/O |
|
| Mode | Digital I/O, general timer/counter, pulse generation (as function I/Os share the same I/O pins, only one of these modes can be selected) |
| Digital I/O | 8 DI / 4 DO (TTLLVTTL level) |
| General timer/counter | Two 32-bit, base clock: 80 MHz, external to 10 MHz |
| Pulse generation | Two PWM outputs (Modulation frequency: 0.01 Hz to 5 MHz; duty cycle: 1%-99%) |
|
General specifications |
|
| Interface | USB 2.0 high speed |
| I/O connector | Two 20-pin removable screw terminals |
| Power requirements | 5V @ 500mA (USB bus powered) |
| Dimensions | 114 mm (H) x 156.5 mm (L) x 41.3 mm (W) (4.5” x 6.16” x 1.63”) (without connector and stand) |
|
Environmental and physical specifications |
|
| Operating Temperature | 0 to 55°C (32 to 131˚F) |
| Storage Temperature | -20 to 70°C (-4 to 158˚F) |
| Relative humidity | 5% to 95%, non-condensing |
| Model | Description |
| USB‑1210 | 4-CH 16-Bit 2MS/s Simultaneous-Sampling Analog Input USB Module |
| Accessory | |
| RST-20P | Removable screw terminal for USB DAQ |
| USB‑2M‑L | 2 M USB Type A to USB Mini-B cable with lockable connector |
