USB-1900 series

8/16-CH 16-Bit 250 kS/s Multi-Function USB DAQ Modules (OEM version available)
  • Details
  • Specification
  • Order information
  • Hi-Speed USB 2.0, and USB bus powered
  • Analog and Digital triggering
  • Lockable USB cable for secure connectivity
  • Operating temperature: 0°C to 55°C (32°F to 131°F)

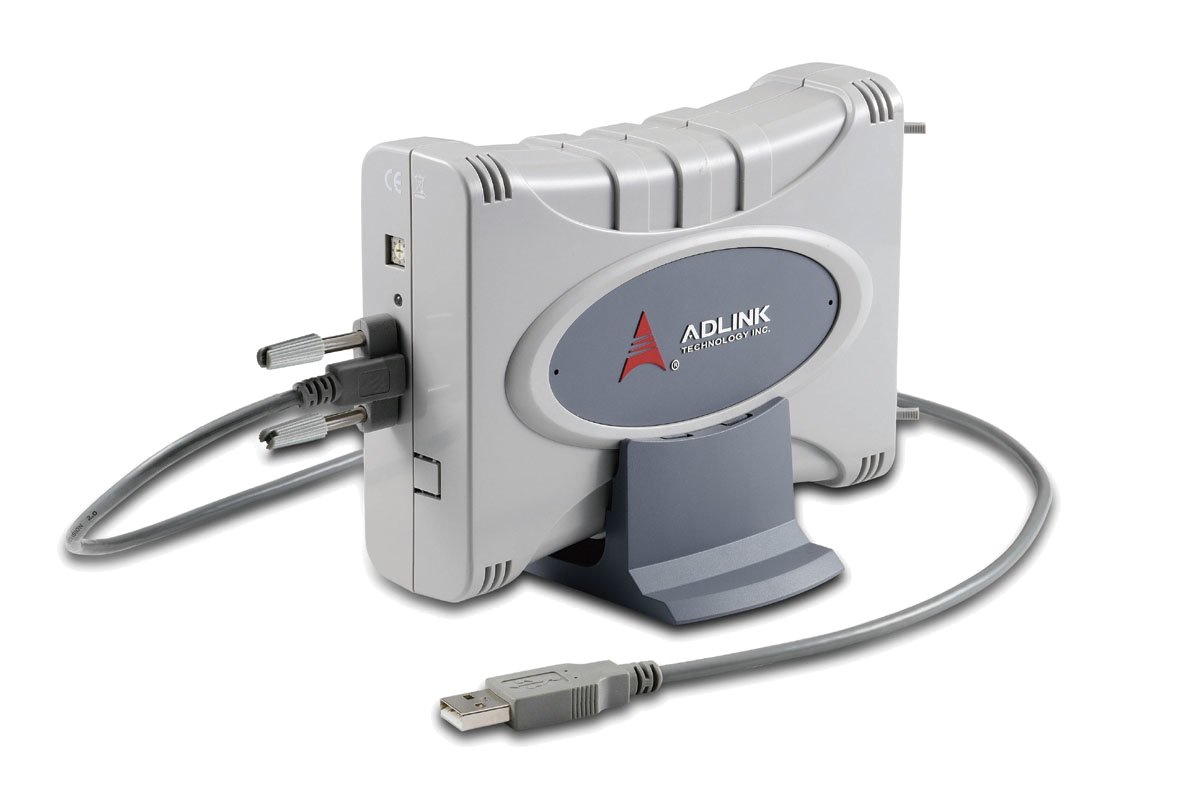

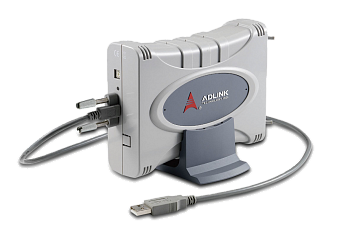

The ADLINK USB-1900 series provides a range of USB 2.0-based multi-functional DAQ modules.

The USB-1901 and USB-1902 16-bit 250 kS/s USB 2.0-based high-performance DAQ modules allow four different voltage input ranges, while the USB-1903 features additional built-in precision current-to-voltage resistors capable of direct measurement of current signal from 0 to 20 mA.

The USB-1900 series is USB bus powered and equipped with removable screw-down terminals for easy device connectivity. The attached multi-functional stand can be used for desktop, rail, or wall mounting.

Suitable for mixed-signal tests, laboratory research, and factory automation, the USB-1900 series provide a simple measurement solution at an affordable price.

Technical specifications

Analog Input

Resolution 16-bit
Channels 16 SE / 8 Pseudo-diff, voltage input (USB-1901, USB-1902)
8 Current inputs (USB-1903)
Maximum sampling rate 250 kS/s(Multiplexing, channel-gain-queue)
Programmable gain 1, 5, 10, 50 (USB-1901, USB-1902)
1 (USB-1903)
Input range ±10V, ± 2 V
Offset error ± 1mV (gain=1)
± 0.2mV (gain=5)
Gain error Typical: ± 0.01% of FSR (gain=1 & 5)
Maximum: ± 0.02% of FSR (gain=1 & 5)
-3dB Bandwidth 600 kHz
CMRR (fin=1 kHz) 80 dB (gain=1)
90 dB (gain=5)
SFDR (fin=10 kHz) 98 dB (gain=1 & 5)
SINAD (fin=10 kHz) 89 dB (gain=1 & 5)
THD (fin=10 kHz) -100 dB (gain=1 & 5)
SNR (fin=10 kHz) 89 dB (gain=1 & 5)
ENOB (fin=10 kHz) 14.3-bit (gain=1 & 5)
FIFO buffer size 256M Samples
Trigger sources Software, external digital, analog trigger ( from one analog input channel)
Trigger mode Post trigger, pre-trigger, delay trigger, middle trigger, gate trigger, post or delay trigger with re-trigger
External A/D conversion source Yes (from CONV)
Input coupling DC
Overvoltage protection Power on: ± 35 V
Power off: ± 15V
Input impedance 1 GΩ
Data transfer Programmed I/O, continuous (USB bulk transfer mode)

Function I/O

Mode Digital I/O, general timer/counter, pulse generation (as function I/Os share the same I/O pins, only one of these modes can be selected)
Digital I/O 8 DI / 4 DO (TTLLVTTL level)
General timer/counter Two 32-bit, base clock: 80 MHz, external to 10 MHz
Pulse generation Two PWM outputs (Modulation frequency: 0.01 Hz to 5 MHz; duty cycle: 1%-99%)

General specifications

Interface USB 2.0 high speed
I/O connector Two 20-pin removable screw terminals
Power requirements 5V @ 500mA (USB bus powered)
Dimensions 114 mm (H) x 156.5 mm (L) x 41.3 mm (W) (4.5” x 6.16” x 1.63”) (without connector and stand)

Environmental and physical specifications

Operating Temperature 0 to 55°C (32 to 131˚F)
Storage Temperature -20 to 70°C (-4 to 158˚F)
Relative humidity 5% to 95%, non-condensing
Model Description
USB‑1901 16-CH 16-Bit 250kS/s Analog Input USB DAQ
USB‑1902 16-CH 16-Bit 250kS/s Multi-Function USB DAQ
USB‑1903 8-CH 16-Bit Current Input Multi-Function USB DAQ
USB‑1901/OEM 16-CH 16-Bit 250kS/s Analog Input USB DAQ, OEM board-level version, no enclosure
USB‑1902/OEM 16-CH 16-Bit 250kS/s Multi-Function USB DAQ, OEM board-level version, no enclosure
USB‑1903/OEM 8-CH 16-Bit Current Input Multi-Function USB DAQ, OEM board-level version, no enclosure
Accessory
RST-20P Removable screw terminal for USB DAQ
USB‑2M‑L 2 M USB Type A to USB Mini-B cable with lockable connector
