USB-2405
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Hi-Speed USB 2.0, and USB bus powered
- Analog and Digital triggering & Full auto-calibration
- Supports 2mA excitation output on each analog input channel for IEPE sensor measurement
- Operating temperature: 0°C to 55°C (32°F to 131°F)

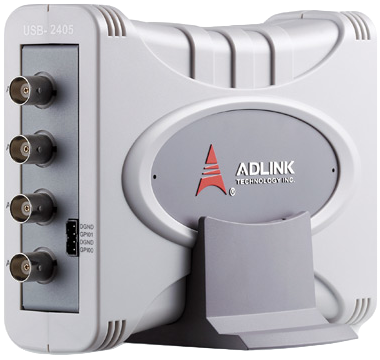

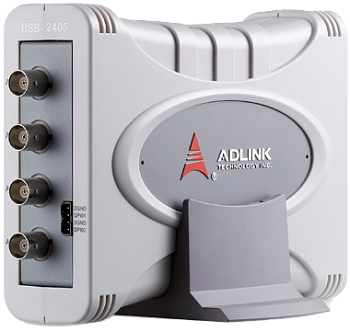

The USB-2405 is a 24-bit high-performance dynamic signal acquisition USB module equipped with 4 analog input channels providing simultaneous-sampling at up to 128 kS/s per channel. The USB-2405 also features software selectable AC or DC coupling input configuration and built-in high precision 2 mA excitation current to measure integrated electronic piezoelectric (IEPE) sensors such as accelerometers and microphones.
The USB-2405 delivers high precision, DC and dynamic measurement performance with very low temperature drift. The onboard 24-bit Sigma-Delta ADC supports anti-aliasing filtering, suppressing modulator and signal out-of-band noise and providing usable signal bandwidth of the Nyquist rate, making it ideal for high dynamic range signal measurement in vibration and acoustic applications.
The USB-2405 supports digital and analog trigger sources and flexible trigger modes, including post, delay, middle, gated, and pre-triggering for efficient data acquisition with no need for post-processing. The USB-2405 is USB bus powered and equipped with BNC connectors and removable spring terminals for easy device connectivity.
| Technical specifications | |
|
Analog Input |
|
|---|---|
| Channels | 2 or 4 (simultaneous sampling) |
| ADC Resolution | 24-bit |
| ADC type | Delta-sigma |
| Sampling rate | 1 kS/s to 128 kS/s |
| Input range | ±10V |
| FIFO buffer size | 8kS across all channel |
| Input Configuration | Differential or pseudo-differential |
| Input impedance | 200 kΩ (between positive input and negative input) 16.93 kΩ (Between negative input and chassis ground) |
| Input coupling | AC or DC, software selectable |
| Integrated Electronic Piezoelectric (IEPE) | Current: 2 mA or 0 mA, software selectable IEPE compliance: 24V |
| Over-voltage protection | ±60V |
| Input common mode range | ±10V |
| Trigger source | Analog or digital, software selectable |
| Trigger mode | Post trigger, delay trigger, middle trigger, gated trigger, pre-trigger, post or delay trigger with re-triggering |
| Data Transfer | Programmed I/O, continuous (bulk transfer mode) |
|
DC accuracy (25°C) |
|
| Offset Error (mV) |
Typical: ±0.15mV Max. ±0.3mV |
| Gain Error (%) |
Typical: ±0.15% Max. ±0.3% |
|
AC Dynamic Performance (typical, 25°C) |
|
| THD, THD+N (Vin = 8.9 Vpk) |
Input configuration: differential Input Signal Frequency (fin): 20 Hz to 20 kHz, THD -94 dB, THD+N -91 dB Input Signal Frequency (fin): 20 Hz to 46.4 kHz, THD -94 dB, THD+N -91 dB Input configuration: Pseudodifferential Input Signal Frequency (fin): 20 Hz to 20 kHz, THD -92 dB, THD+N -88 dB Input Signal Frequency (fin): 20 Hz to 46.4 kHz, THD -85 dB, THD+N -85 dB |
| CMRR | 60 dB (AC 20 Hz to 1 kHz) |
| Bandwidth |
AC cut-off frequency (-3dB): 0.4 Hz AC cut-off frequency (-0.1dB) 2.4 Hz |
| Flatness |
±0.01 dB (Input Signal Frequency: 20 Hz to 20 kHz) ±0.15 dB (Input Signal Frequency: 20 Hz to 46.4 kHz) |
| Crosstalk |
-102 dB (Input Signal Frequency: 1 kHz) -95 dB (Input Signal Frequency: 46.4 kHz) |
| System noise |
50μVrms AI Noise (High-Resolution < 52.734 kHz) 65μVrms AI Noise (High-Speed Mode 52.734 kHz to 128 kHz) |
| SFDR (Vin = -1 dBFS) | 104 dB (Input Signal Frequency: 1 kHz) |
| Dynamic Range (Vin = -60 dBFS, fs=102.4kS/s) | 100 dB (Input Signal Frequency: 1 kHz) |
|
Digital Input / Output |
|
| Channels | 2 programmable function I/O |
| Compatibility | 3.3V / TTL (single-ended) |
| Initial status | Input (pull low) |
| Input voltage |
Logic low: VIL = 0.8 V max; IIL = 0.2 mA max. Logic high: VIH = 2.0 V min.; IIH = 0.2 mA max. |
| Output voltage |
Logic low: VOL = 0.8 V max; IIL = 0.2 mA max. Logic high: VOH = 2.0 V min.; IIH = 24 mA max. |
| Over-voltage protection | -2V ~ +7V |
| Supporting modes |
Static digital input/output Pulse output, max. frequency:4 MHz Event counter, max. frequency: 4MHz Digital trigger IN Synchronization sample clock IN |
| Data Transfer | Programmed I/O |
|
General specifications |
|
| I/O connector | Two or four BNC connectors and 4-pin removable spring terminals |
| Power requirements | 5V @ 400mA (USB bus powered) |
| Dimensions (not including stand) | 114 mm (W) x 167.5 mm (D) x 41.3 mm (H) (4.5” x 6.6” x 1.63”) |
|
Environmental and physical specifications |
|
| Operating Temperature | 0 to 55°C (32 to 131˚F) |
| Storage Temperature | -20 to 70°C (-4 to 158˚F) |
| Relative humidity | 5% to 95%, non-condensing |
| Model | Description |
| USB-2405 | 4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module |
| USB‑2405/OEM | 4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module, , OEM board-level version, no enclosure |
| USB-2405/S | 4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module, w/o AnCAD Visual Signal |
| USB‑2405/2AI | 2-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module |
| Accessory | |
| RST-20P | Removable screw terminal for USB DAQ |
| USB‑2M‑L | 2 M USB Type A to USB Mini-B cable with lockable connector |
