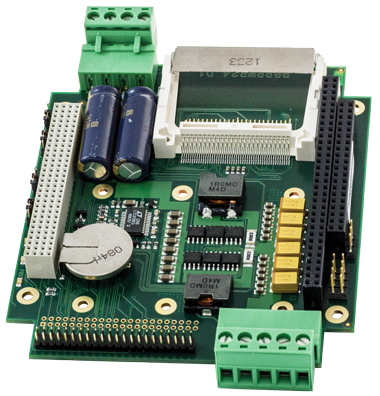

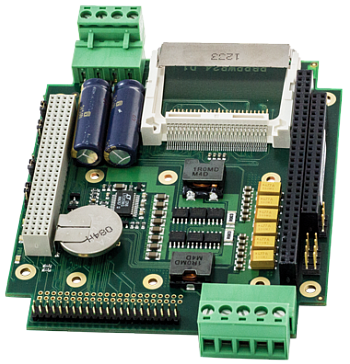

The ADLPS104CF power supply is designed specifically with the ADL855PC product in mind. You can also use the power supply for other CPU’s as well.
The ADLPS104CF has a direct connection to a modified ADL Embedded Solutions CPU board on the ID port to allow for direct connection to the CF without cables.
The ADLPS104CF can supply 15A @ 5VDC (output) at room temperature without needing cooling. If additional cooling is a necessary it will be easy to place a heat sink on the board. Standard temperature range (ambient) of up to -40°C to +85°C.
Please contact us for more options.
Technical specifications | |
Function | Power supply & CF board |
Input Voltage | From 8V up to 28V over 4 pin |
Input Connector | MSTBA2.5/4-G-5.08 |
Output voltage |
5V up to 10 amp without cooling 5V up to 20 amps with additional cooling |
PGood | TTL compatible |
Output connector |
MSTBA2.5/4-G-5.08 (5pin) PC/104 PC/104+ |
MTBF | 300,000h |
Environmental and physical specifications |
|
---|---|
Extended operating temperature | -40°C to +85°C |
Model | Description |
ADLPS104CF-1 | ADLPS104CF, Power Supply (CF socket not operable) |
ADLPS104CF-2 | ADLPS104CF, Power Supply with CF option for ADL855PC / ADL945PC |
ADLPS104CF‑HS | Heatsink for -40°C to +85°C or 20A Operation |
MILCOTS-FILTER | MIL-STD 704/1275/461 Input Filter; 120W max. |
