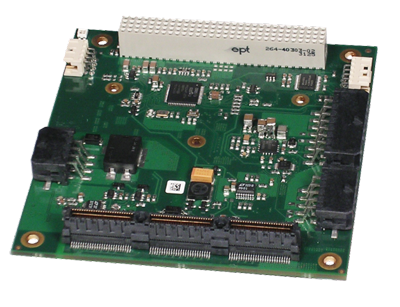

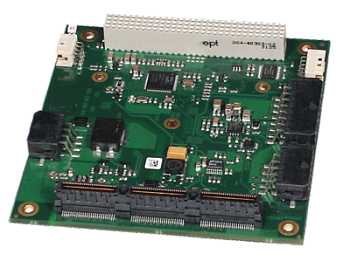

ADLPS104ISO-150

150W PSU with Galvanic Isolation
  • Details
  • Specification
  • Order information
  • PCI/104-Express Form Factor (90mm x 96mm)
  • Two Variants Available
  • MTBF: 600,000h
  • Extended operating temperature: -40°C to +85°C

The ADLPS104ISO-150 power supply board is designed to meet the needs of high-powered Intel Core industrial and embedded motherboards by providing robust ATX voltages (5V, 5VS, 3.3V, 12V) in a stackable PCI/104-Express form factor designed for operation at 150W. Its small (90mm x 96mm) footprint allows it to fit in many space limited applications. As well, the ADLPS104ISO-150 provides up to 500V of galvanic isolation from dirty power and unwanted transients. The ADLPS104ISO-150 features ATX compliant signaling to allow ACPI/APM power management from within compliant operating systems.

The ADLPS104ISO-150 boasts an MTBF >600,000 hrs and is tailored for long-life embedded applications with more than enough headroom for inrush startup currents, and quiescent operation with our wide range of high‑performance SBCs and multiple peripheral cards.

A small, 1"x2″ MIL-STD 704-1275/461 MILCOTS input filter option enables use on military avionics, ground vehicles and EMI-sensitive applications.

The board is protected against many types of input power anomalies, such as over-currents, voltage deviations and voltage surge. Short bursts of over-current are simply filtered out. Should overvoltage or under voltage situation persist too long, the power supply shuts off. Noise interference is dampened by up to 35dB. The output is protected against reverse voltage and short-circuit.

Technical specifications
Two variants available ADLPS104ISO-150-5: Input: 7-30V, Output: 5V, 5VS, 3.3V
ADLPS104ISO-150-12: Input: 15-36V, Output: 5V, 5VS, 3.3V, 12V
Voltage and current specifications (common all variants) Maximum Input Current = 15A
Maximum Power = 150W Combined
Available Output Current: 5VS/5A, 5V/20A, 3.3V/5A, 12V/10A
Input protection Overcurrent
Overvoltage / Undervoltage / Surge
Reverse voltage
Output protection Voltage out of range (monitored via PWRGD)
Short-circuit
Galvanic Isolation 500V (Generalized)
Dimensions PCI/104-Express form factor (90mm x 96mm)
MTBF 600,000h
Input filter option MIL-STD 704/1275/461 MILCOTS Filter Option; 120W max.; 1” x 2” x .4” Including Mounting Plate

Environmental and physical specifications

Operating temperature -25°C to +70°C (150W max. with Thermal Solution)
-40°C to +85°C (Derated to 120W max. with Thermal Solution)
Model Description
ADLPS104ISO-150-5 ADLPS104ISO-150-5, 5V, 5VS, 3.3V, Isolated 150W VIN 7-30V, Extended Temp w/ Heat Spreader
ADLPS104ISO‑150‑12 ADLPS104ISO-150-12, 5V, 5VS, 12V, 3,3V, Isolated, 150W, VIN 15-36, Extended Temp w/ Heat Spreader
MILCOTS-FILTER MIL-STD 704/1275/461 Input Filter; 120W max.
