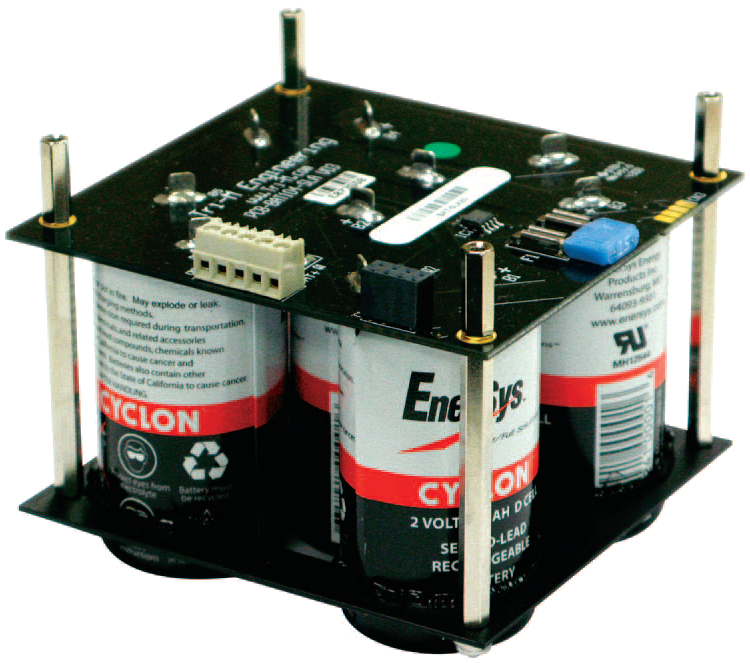

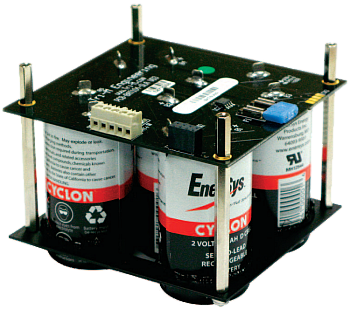

BAT-SLA25

• Sealed Lead Acid batteries
• 5D x 2.5A Hr. with digital temp. sensor
• Size: 3.78" x 3.50" x 2.80" (96.01 x 88.9 x 71.12 mm)
• Weight: 40.77oz / 1155.75g
• Operating temperature: -40°C to +80°C

The BAT-SLA series includes the BAT-SLA25 and the BAT-SLA45. The BAT-SLA battery backup units have PC/104 footprint and create a complete UPS system by plugging directly into the bottom of the HESC (including the V5SC-SER) Vehicle Power Supplies. Each BAT-SLA includes five SLA batteries for a nominal backup voltage of 10 volts. The BAT-SLA25 utilizes 2.5Ahr batteries for a total of 25 watt-hrs backup. Therefore a BAT-SLA25 can supply backup power for up to sixty minutes for a 25 watt load.

The BAT-SLA includes Mosfet transistors for preventing deep discharge occurrences during extended power outages. The Mosfet transistors electrically isolate the BAT-SLA from the HESC whenever the BE output of the HESC is de-asserted (pulled to 5V)

The BAT-SLA has a current activated fuse for protection against shorts on the battery output.

A digital I2C temperature sensor provides temperature feedback for ambient temperature measurement which can be read by the HESC.
