HE104-75W
Vendor:Tri-M Technologies Inc.
- Details
- Specification
- Order information
- 75 Watt output
- +5V, +12V, -12V outputs
- PC/104 compliant
- Extended temperature: -40°C to +85°C

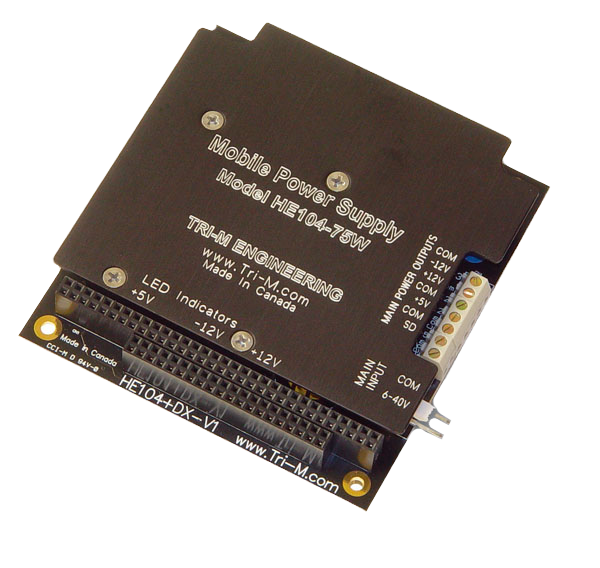

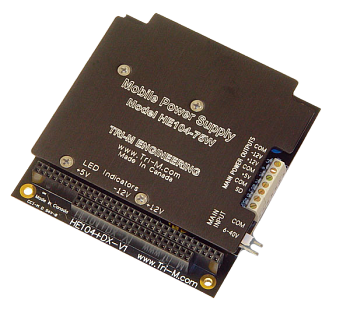

For applications requiring a DC-DC PC104 power converter that supplies up to 75W of power, Tri-M offers the HE104‑75W. It is ideal for use on 12VDC and 24VDC mobile applications where power from a DC source (input) needs to be converted (output) to match the applications power requirements - generally an embedded computer.
Efficiency of the HE is over 90% - the higher efficiency means less heat is generated - and it is designed to operate in extended temperature applications where temperatures can be between -40°C and +85°C.
Input voltage spikes that go beyond the input voltage window (9VDC to 40VDC) are managed through transient suppressors that restrict the input voltage, while maintaining normal output power operation.
The HE104-75W is designed to minimize any generated noise or interference, allowing it to be used for airborne or ground vehicles that encounter EMI or RFI.
| Technical specifications | |
| Input Voltage Range: | +6V to +40V DC |
| Output Voltages: |
+5V @ 12A +12V @ 3A -12V @ 0,5A |
| Output power: | Up to 75W |
| Load Regulation (5V output): | < 60mV |
| Line Regulation (5V output): | < 40mV |
| Output temp. drift (5V output): | < 40mV |
| Switching Frequency: | 312kHz |
| Output Ripple (5V output): | < 20mV |
| Conducted Susceptibility (5V output): | > 57db |
| Efficiency: | Up to 90% |
| Form Factor: | PC/104 |
| Dimensions (excluding PC/104 pins): | 90mm x 95,25mm x 15mm (3.55”W x 3.75”L x 0.6”H) |
| Weight: | 6.08oz / 172.37g |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature: | -40°C to +85°C (-40°F to 185°F) |
| Model | Description |
| HE104-75W-PBF | PC/104, In 6-40VDC, Out 75 Watt, +5V@15A, +12V@3A, -12V@500mA, (-40 to +85°C), ISA Bus |
| HE104-75W-N-PBF | PC/104, In 6-40VDC, Out 75 Watt, +5V@15A, +12V@3A, -12V@500mA, (-40 to +85°C), No Bus |
| HE104+75W-PBF | PC/104, In 6-40VDC, Out 75 Watt, +5V@15A, +12V@3A, -12V@500mA, (-40 to +85°C), ISA Bus,PCI BUS |
| HE104+75W-N-PBF | PC/104, In 6-40VDC, Out 75 Watt, +5V@15A, +12V@3A, -12V@500mA, (-40 to +85°C),No ISA Bus, PCI Bus |
| HE104+75W‑N‑N‑PBF | PC/104, In 6-40VDC, Out 75 Watt, +5V@15A, +12V@3A, -12V@500mA, (-40 to +85°C),No ISA Bus, PCI Bus |
| CON‑HE104‑75W‑KIT | Replacement Connector Kit for HE104-75W power supplies |
