IPWR104HR

• 100 W output power, 12/20A at 5V
• +5V, +-12V output
• -5V on PC/104 bus
• Input voltages 18 - 36V and 33 - 75V

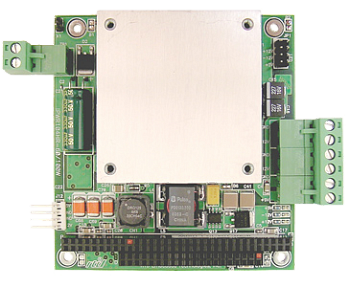

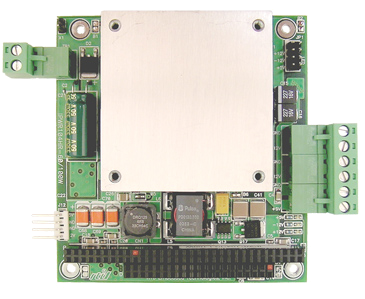

The RTD IPWR104HR embedded power supply module provides an elegant solution for PC/104 systems requiring an isolated reliable power supply. The two available wide input voltage ranges of 18 - 36V and 33 - 75V will suit applications ranging from communications to aviation.
The IPWR104HR is available with a wide operating temperature range of -40 to +85 C. Power from the module is delivered to the PC/104 bus as well as to the card edge terminal blocks. Output voltages include +5 at 12A/20A, +12V at 2.0A and -12V at 500mA (100 Watt maximum combined output). These outputs are connected to the PC/104 bus as well as terminal blocks.
