High Powered PC/104 Form Factor Power Supply
Vendor:Connect Tech
- Details
- Specification
- Order information
- Power requirements: +6V to +36V
- Output voltages: +5V, +12V, -12V, +3.3V, and +5V standby
- Total output power: 154W
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

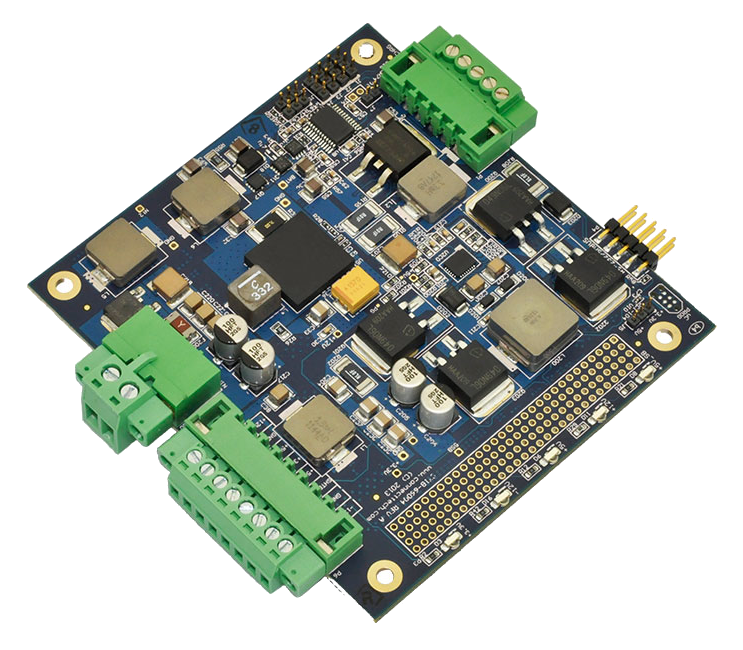

Connect Tech’s Xtreme/PSU-UPS is a high efficiency, high powered PC/104 form factor power supply featuring a wide input voltage range that accepts +6V to +36V DC, and provides 154W of total output power with +5V, +12V, −12V, +3.3V and +5 standby output voltages
Xtreme/PSU-UPS features SMART battery charging for uninterrupted power supply and battery backup functionality, along with extended temperature capabilities. Use this with Connect Tech’s Smart Battery Adapter ADG061.
Xtreme/PSU-UPS can be used in combination with Connect Tech’s stackable CPU and expansion boards for a total design solution, and is ideal for use in a broad range of rugged military and industrial applications.
| Technical specifications | |
| Bus | Embedded (No Bus Connectors) option, PCI-104 (PCI) option |
| Power Requirements | +6V to +36V DC Input |
| Input Protection | Reverse polarity protection, transient voltage suppression and series fuse |
| Power Consumption | 154W |
| +3.3V Output | 10A maximum continuous for full -40°C to +85°C range |
| +5V Output | 10A maximum continuous for full -40°C to +85°C range |
| -12V Output | 0.5A maximum continuous for full -40°C to +85°C range |
| +5V Standby | 1A maximum continuous for full -40°C to +85°C range |
| Output Regulation | Less than 1% |
| Output Protection | Overload protection and transient voltage suppression |
| Output Efficiency | Up to 93% |
| Battery | Fully compatible with all SMART external batteries, Supporting charging up to 16V, 4A |
| Monitor/Control | On-board USB, RS-232 and SMbus interfaces for battery monitoring and power on/off control |
| Connectors | Input: 5mm pitch standard terminal block header and mating plug, Output: 3.5mm pitch standard terminal block header and mating plug |
| Dimensions | PC/104 Compliant |
|
Environmental and physical specifications |
|
|---|---|
| Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| SCG001 | Xtreme/PSU-UPS Power Supply – (PCI-104 Build) |
| SCG002 | Xtreme/PSU-UPS Power Supply – (Embedded Build) |
