PC/104 Compliant Isolated Power Supply
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • Power requirements: +9V to +36V
  • Output voltage rails: +3.3V, +5V and +12V
  • Total output power: up to 195W
  • Operating temperature: -40°C to +85°C

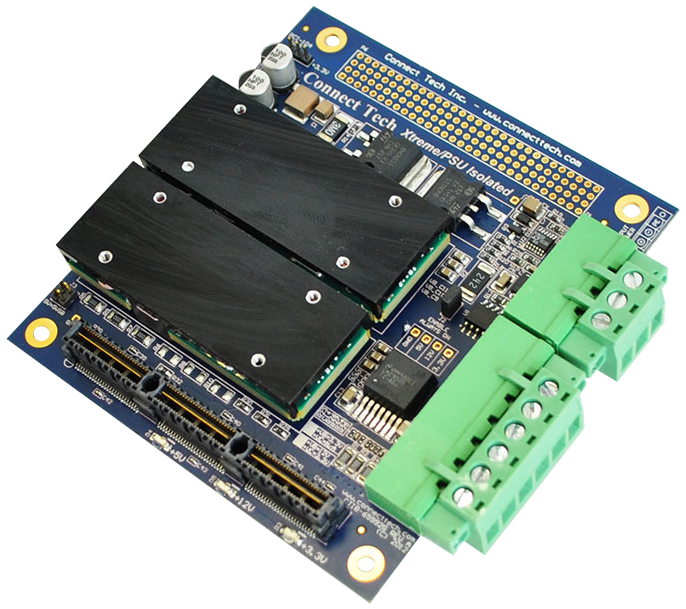

Connect Tech’s Xtreme/PSU Isolated power supply is a high efficiency, high powered Isolated PC/104 form factor power supply with extended temperature capabilities. Xtreme/PSU Isolated provides isolated power to on-board terminal block connectors and also directly powers all of the PC/104 family expansion buses such as PC/104, PC/104-Plus, PCI-104, PCI/104-Express and PCIe/104.

Xtreme/PSU Isolated is a highly reliable power supply which provides up to 195W of total output power with +3.3V, +5V, and +12V output voltages. It can be used as a stand-alone power supply to power any other embedded system, or used directly to power any PC/104 stack or single board computer (SBC).

Xtreme/PSU Isolated power supply has a wide input voltage range that accepts +9V to +36V DC and is specifically designed for use in a broad range of rugged applications including military, industrial, and air and ground vehicles. Xtreme/PSU Isolated power supply can be used in combination with Connect Tech’s stackable CPU and expansion boards for a total design solution.

Technical specifications
Power Requirements +9V to +36V
Power Consumption 2250V Max
Output Voltage Rails +3.3V, +5V and +12V
Total Output Power Up to 195W
Dimensions PC/104 Compliant
Bus Expansion Options PC/104-Plus (PCI & ISA), PC/104 (ISA Only), PCI-104 (PCI Only), PCIe/104 (PCI Express Only), PCI/104-Express (PCI Express & PCI), Embedded (No Bus Connectors)
Input Protection Reverse polarity protection, transient voltage suppression and series fuse
Efficiency Maximum 92%
Output Ripple/Noise Less than 100mV p-p
Output Protection Overload protection and transient voltage suppression
Control Remote ON/OFF functionality

Environmental and physical specifications

Temperature Range -40°C to +85°C
Model Description
PXG101 Xtreme/PSU Isolated Power Supply – SP (PC/104-Plus)
PXG102 Xtreme/PSU Isolated Power Supply – SP (PC/104)
PXG103 Xtreme/PSU Isolated Power Supply – SP (PCI-104)
PXG104 Xtreme/PSU Isolated Power Supply – SP (PCIe/104)
PXG105 Xtreme/PSU Isolated Power Supply – SP (PCI/104-Express)
PXG106 Xtreme/PSU Isolated Power Supply – SP (Embedded)
PXG107 Xtreme/PSU Isolated Power Supply – SP (PC/104-Plus)
PXG108 Xtreme/PSU Isolated Power Supply – SP (PC/104)
PXG109 Xtreme/PSU Isolated Power Supply – SP (PC/104)
PXG110 Xtreme/PSU Isolated Power Supply – SP (PCIe/104)
PXG111 Xtreme/PSU Isolated Power Supply – SP (PCI/104-Express)
PXG112 Xtreme/PSU Isolated Power Supply – SP (Embedded)
PXG201 Xtreme/PSU Isolated Power Supply – LP (PC/104-Plus)
PXG202 Xtreme/PSU Isolated Power Supply – LP (PC/104)
PXG203 Xtreme/PSU Isolated Power Supply – LP (PCI-104)
PXG204 Xtreme/PSU Isolated Power Supply – LP (PCIe/104)
PXG205 Xtreme/PSU Isolated Power Supply – LP (PCI/104-Express)
PXG206 Xtreme/PSU Isolated Power Supply – LP (Embedded)
PXG301 Xtreme/PSU Isolated Power Supply – HP (PC/104-Plus)
PXG302 Xtreme/PSU Isolated Power Supply – HP (PC/104)
PXG303 Xtreme/PSU Isolated Power Supply – HP (PCI-104)
PXG304 Xtreme/PSU Isolated Power Supply – HP (PCIe/104)
PXG305 Xtreme/PSU Isolated Power Supply – HP (PCI/104-Express)
PXG306 Xtreme/PSU Isolated Power Supply – HP (Embedded)
PXG307 Xtreme/PSU Isolated Power Supply – HP (PC/104-Plus)
PXG308 Xtreme/PSU Isolated Power Supply – HP (PC/104)
PXG309 Xtreme/PSU Isolated Power Supply – HP (PC/104)
PXG310 Xtreme/PSU Isolated Power Supply – HP (PCIe/104)
PXG311 Xtreme/PSU Isolated Power Supply – HP (PCI/104-Express)
PXG312 Xtreme/PSU Isolated Power Supply – HP (Embedded)
