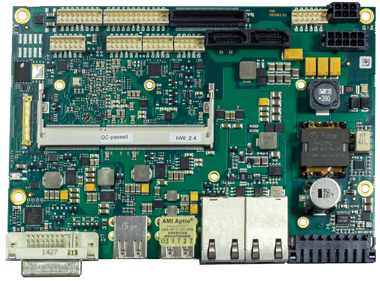

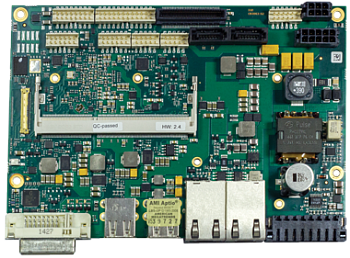

ADLE3800HD

Intel Atom Dual/Quadcore 4th Generation SoC/Bay Trail 3.5"-SBC Express Form Factor
  • Details
  • Specification
  • Order information
  • Intel E3800 Series SoC Processors
  • Up to 8 GB DDR3L-1333
  • Compact 102mm x 147mm footprint
  • Extended operating temperature: -40°C to +85°C

The ADLE3800HD is based on Intel’s first System-on-Chip (SoC) E3800 Atom product family which is built using Intel’s 22nm 3D Tri-gate process. It offers vastly superior compute performance and energy efficiency and Intel’s 7th generation graphics engine for stunning graphics performance. Improved power management capabilities result in standby power measured in milliwatts with days of standby time.

The ADLE3800HD graphics engine is capable of decoding 10 or more streams of 1080p video, has integrated hardware acceleration for video decode of H.264, MVC, VPG8, VC1/WMV9 and others standards. It also supports DirectX 11, Open GL 4.0, full HD video playback, and a maximum resolution of 2560×1600 @ 60Hz and dual-display support.

The ADLE3800HD is ideal for rugged, extended temperature embedded systems with a thermal junction temperature (Tj) ranging from —40°C to +85°C. It’s well suited for extreme environments such as industrial control and automation and in-vehicle communication and infotainment systems for commercial transportation systems. It’s superior graphics also make it ideal for rugged mobile computing, digital signage with secure content delivery, portable medical devices and interactive kiosks, vending, ATM and point-of-sale (POS) terminals.

Technical specifications
Processors Intel® E3800 Series SoC Processors; DC/Quad
Memory Up to 8 GB DDR3L-1333; 1.35V SoDIMM204 Socket
CPU TDP 8W to 10W
SATA 2x SATA 3 Gb/s
LAN 3x 10/100/1000 Mbit Ethernet LAN Port; Intel i210; 2x RJ45, 1x Pin Connector
USB 8x USB 2.0 Total: 4x Standard USB Connector, 4x pin Connector
I-PEX I-PEX Connector for Custom DVI/HDMI/DP or 1x USB 3.0 Cabling
DVI DVI Connector with Analog VGA
RS232 1x RS232 Pin Connector; SCH3114 Controller
GPIO 8 bit GPIO; PCA9535BS
Controller via Intel SoC SMBus
PCIe PCIe x1 lane via 2x40pin Connector
Operating System Windows 7, Windows 8, Windows 10, Linux Compatible
Input Power 24VDC (Range 21V-30V)
Dimensions 4.0” x 5.8” (102mm 147mm)
3.5” SBC Format

Environmental and physical specifications

Operating Temperature -40°C to +85°C (optional)
Model Description
ADLE3800HD-E3845 Intel E3845; QC, 1.91 GHz, 2MB, 10W TDP
ADLE3800HD-E3827 Intel E3827; DC, 1.75 GHz, 1MB, 8W TDP
4GB DDR3L-1600 DDR3L-1600MHz 4GB Standard Temperature
8GB DDR3L-1600 DDR3L-1600MHz 8GB Standard Temperature
4GB DDR3L‑1600‑EX DDR3L-1600MHz 4GB Extended Temperature
8GB DDR3L-1600-EX DDR3L-1600MHz 8GB Extended Temperature
ADL-ET Extended Temperature Screening (-40C to 85C)
ADLE3800HD-CK Standard Cable Kit for ADLE3800HD
ADLE3800-SPREADER Chassis / Bulkhead mount heat spreader for ADLE3800HD
ADL35-BBHS Large Heatsink for Bench Testing
ADL35-SOSET Benchtop Stand-Off Set for ADL35-BBHS, M3, 6mm, 37mm
