ADLE3800HDC
Vendor:ADL Embedded Solutions
- Details
- Specification
- Order information
- Intel Atom E3800-3845 Quad, Intel Atom E3800-3827 Dual
- Up to 8 GB DDR3L-1333
- Optional UPS (call for details)
- Extended operating temperature: -40°C to +85°C

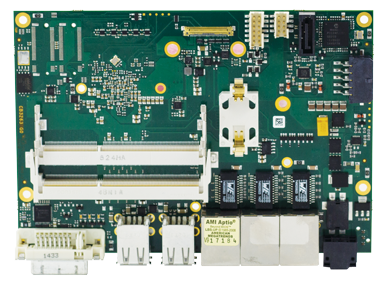

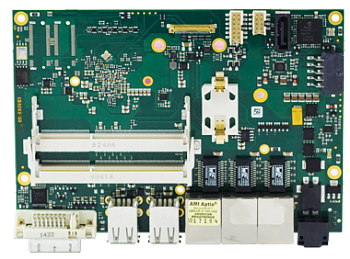

The ADLE3800HDC is based on Intel’s first System-on-Chip (SoC) E3800-series Atom processors which use Intel’s 22nm 3D Tri-gate process. It offers vastly superior compute performance and energy efficiency and Intel’s 7th generation graphics engine for stunning graphics performance.
Improved power management capabilities result in standby power measured in milliwatts with days of standby time. The ADLE3800HDC is a lower I/O, lower cost version of the ADLE3800HD offering M.2 (Type B) 2242 SATA storage and M.2 (Type B) 2280 PCIex1 expansion.
Its high-performance graphics engine is capable of decoding 10 or more streams of 1080p video, has integrated hardware acceleration for video decode of H.264, MVC, VPG8, VC1/WMV9 and others standards.
Display capabilities include: VGA/CRT = 2560×1600@60Hz 24bpp (via DVI conn), DVI/HDMI/DP (via I-PEX conn), DVI = 1920×1080@60Hz 24bpp, DirectX 11, Open GL 4.0, Full HD Video Playback, and DualDisplay Support.
The ADLE3800HDC features a thermal junction temperature (Tj) of −40°C to +85°C and is ideal for a variety of intelligent controller or gateway applications in harsh extended temperature environments.
| Technical specifications | |
| Processors |
Intel® Atom E3800-3845 Quad, Intel Atom E3800-3827 Dual |
| Memory | Up to 8GB DDR3L 1333MHz; 2x 204 SODIMM Sockets |
| SATA | 1x SATA (3Gbit/s) |
| LAN | 3x 10/100/1000 Mbit Ethernet LAN Port; Intel i210; 2x RJ45, 1x Pin Connector |
| USB | USB2.0, 1x USB 3.0 via I-PEX conn |
| I-PEX | I-PEX shared connector for 1x USB3.0, 1x DVI, 1x HDMI or 1x DP |
| M.2 Key-B |
1x M.2 Key-B 2242 SATA; Up 64GB 1x M.2 Key-B 2280 with 1x PCIex1 |
| Fans | 12V Conn Available for up to 3 Fans |
| Microsoft Azure | Microsoft Azure Certified for IoT |
| Voltage Input |
20V - 30V; Optional UPS (call for details) |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature |
-20°C to +70°C (standard) -40°C to +85°C (optional) |
| Model | Description |
| ADLE3800HDC-E3845 | Intel E3845; QC, 1.91 GHz, 2MB, 10W TDP |
| ADLE3800HDC-E3827 | Intel E3827; DC, 1.75 GHz, 1MB, 8W TDP |
| 4GB DDR3L-1333/1600 | DDR3L-1333/1600MHz 4GB Standard Temperature |
| 8GB DDR3L-1333/1600 | DDR3L-1333/1600MHz 8GB Standard Temperature |
| 4GB DDR3L-1333/1600-EX | DDR3L-1333/1600MHz 4GB Extended Temperature |
| 8GB DDR3L‑1333/1600‑EX | DDR3L-1333/1600MHz 8GB Extended Temperature |
| M.2-mPCIe | M.2 Key-B 2280 miniPCIe Adapter |
| M.2 SATA | M.2 Key-B 2242 SATA up to 128GB |
| ADLE3800HDC‑SPREADER | Chassis / Bulkhead mount heat spreader for ADLE3800HDC |
| ADL35-BBHS | Large Heatsink for Bench Testing |
| ADL35-SOSET | Benchtop Stand-Off Set for ADL35-BBHS, M3, 6mm, 37mm |
