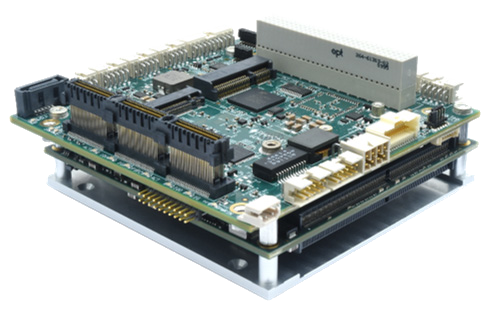

GEMINI is a COM Express Compact type 6 carrier board and SBC with PCI/104-Express I/O expansion. Feature-rich GEMINI offers the highest performance in a compact 4.0×4.0′ / 102×102mm size, with its combination of COM Express CPU module and full support for PCIe/104 type 1 connectivity (PCI-104 up to 4 modules, PCIe-104×1 up to 4 modules, and PCIe/104×16). Gemini is designed to support a variety of COM Express modules including Bay Trail, Apollo Lake to Core i7 8th generation and Xeon.
Gemini as a complete SBC features the 11th Generation Intel Core i7 1185G7E / 1185GRE "Tiger Lake" processors with with up to 64GB SODIMM memory and −40 to +85°C operation.
GEMINI as a carrier board provides flexibility in choosing your preferred COM from among dozens of manufacturers around the world. The Gemini carrier offers early access to the latest generation of x86 processors as well as longer product lifecycles by virtue of processor independence.
The COM Express module mounts on the bottom side of the board, with a heat spreader below it serving as a mounting platform and thermal solution. The PCI/104-Express, minicard, and M.2 expansion sockets are on the top side.
The board size maximizes PCB coastline for I/O connectors in the smallest feasible size for the feature set. The combination of latching I/O connectors and a thicker PCB offers superior resistance to shock and vibration.
Gemini offers several options for mass storage. An M.2 2242 socket supports SSD up to 512GB using SLC, MLC, and TLC technology. A SATA connector can be used to connect to an external SSD.
Windows 10 64-bit and Ubuntu Linux 64-bit OS support is available.
Technical specifications | |
Processor | Intel Core i7 11th Generation 1185G7E / 1185GRE "Tiger Lake" |
Chipset | Integrated onto processor package |
Memory | Up to 64GB DDR4 SODIMM |
Graphics |
3 independent displays: 2x HDMI, max resolution 4096 x 2304 @ 60Hz, 24bpp 1x LVDS, max resolution 1920 x 1200 @ 60Hz, 24bpp |
Ethernet | 2 Gigabit ports: 1 10/100/1000Mbps from COM module and 1 10/100/1000Mbps via I210 Ethernet controller on carrier |
USB | 4x USB 2.0 and 2x USB 3.0, optional USB support via PCIe Minicard |
Serial | 4x multiprotocol RS-232/422/485 through SP336 |
Audio | HDA audio to analog audio converter |
Digital I/O | 8 programmable direction digital I/O, 3.3V logic compatible |
Mass storage | Standard SATA, m.2 2242 socket, PCIe / USB MiniCard socket |
Security | TPM module Infineon SLB 9670XQ2.0 on carrier (installed COM may also have TPM) |
Expansion | PC/104-EXPRESS: 4 PCIe x1 ports, 1x PCIe x16, 1x USB2.0, and 4-slot PCI support |
Form factor | 101.6mm x 101.6 mm / 4.000" x 4.000" |
Weight | 281g / 9.9oz (complete assembly with WL COM and heat spreader) |
Cooling | Conduction cooling heat spreader on bottom |
Input voltage | 16V-34VDC |
Power consumption |
Carrier board alone: 2.4W Carrier board + WL COM + 16GB RAM: 10.2W Vin = 28VDC |
Environmental and physical specifications |
|
---|---|
Operating Temperature | -40° to +85°C (carrier board and WL COM; final system capability depends on the installed COM) |
Model | Description |
GEM-BB01 | Gemini carrier board, 8 x1 + 1 x16 PCIe configuration, 22mm PCI/104-Express |
GEM-BB02 | Gemini carrier board, 5 x1 + 1:4 PCIe switch + 1 x16 PCIe configuration, 22mm PCI/104-Express |
GEM-1185G7E-32G | Gemini SBC, 11th Gen Core i7 1185G7E, 32GB RAM, Extended Temp |
GEM-1185G7E-64G | Gemini SBC, 11th Gen Core i7 1185G7E, 64GB, Extended Temp |
GEM-1185GRE-32G | Gemini SBC, 11th Gen Core i7 1185GRE, 32GB RAM Soldered, -40/+85C |
DK-GEM-1185G7E-LNX64 | Development Kit, Gemini SBC, 1185G7E CPU, Linux 64-Bit OS |
DK-GEM-1185G7E-WE1064 | Development Kit, Gemini SBC, 1185G7E CPU, Windows 10 64-Bit OS |
DK-GEM-1185GRE-LNX64 | Development Kit, Gemini SBC, 1185GRE CPU, Linux 64-Bit OS |
DK-GEM-1185GRE-WE1064 | Development Kit, Gemini SBC, 1185GRE CPU, Windows 10 64-Bit OS |
SDK-GEM-1185G7E-LNX64 | Software Dev Kit, Gemini SBC, 1185G7E CPU, Linux 64-Bit OS |
SDK‑GEM‑1185G7E‑WE1064 | Software Dev Kit, Gemini SBC, 1185G7E CPU, Windows 10 64-Bit OS |
SDK-GEM-1185GRE-LNX64 | Software Dev Kit, Gemini SBC, 1185GRE Processor, Linux 64-Bit OS |
SDK‑GEM‑1185GRE‑WE1064 | Software Dev Kit, Gemini SBC, 1185GRE Processor, Windows 10 64-Bit OS |
GEM-WL8665UE-16G | Gemini SBC, i7-8665U 2133MHz CPU, 16GB RAM, Heat Spreader |
GEM-WL8665UE-32G | Gemini SBC, i7-8665U 2133MHz CPU, 32GB RAM, Heat Spreader |
Cables and accessories | |
CK-GEM-01 | CK-GEM-01 cable kit |
6980512 | Cable Power, 2x4 0.1" Latching |
6980524 | Cable, External Battery, Molex Spox |
6980601 | Dual serial, latching, 2x DB9M |
6980602 | Cable, Dual USB 2.0, FCI 98414 to D |
6980603 | Cable, USB 3.0, Latching, FCI 98414 |
6980604 | Cable, RJ-45 socket, panel mount |
6980605 | HDMI Cable |
6980608 | Audio cable 2mm to 3x3.5mm |
6980609 | FCI latching 2x5 2mm to IC 2x5 2mm, 12" |
6989101 | SATA Cable, 7-Pin Data, Straight to Right Angle, 500mm |
C-20MM-18 | 2x10 2mm IDC ribbon, 18" |
