Zeta Miniature COM-Based SBC

Ultra-Small Solution with Integrated DAQ using COM Express Mini Type 10 CPU Modules
  • Details
  • Specification
  • Order information
  • Intel Bay Trail E3825 / Apollo Lake E3940 / Apollo Lake N4200
  • 2-8 GB RAM
  • Cooling: heat spreader standard, no fan
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)

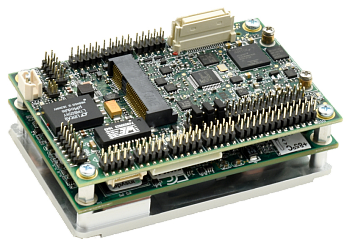

The Zeta COM Express SBC family of ultra-small embedded computer boards combines a COM Express Mini CPU module mounted on a same-size carrier board to create a complete embedded PC. Designed in the COM Express Mini Type 10 form factor (84×55mm/ 3.3×2.2 in), Zeta provides an ultra-compact, industry-standard form factor solution.

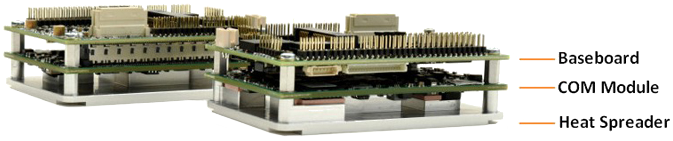

3 key components pre-assembled:

  • A Computer on Module (COM) providing the core CPU functionality

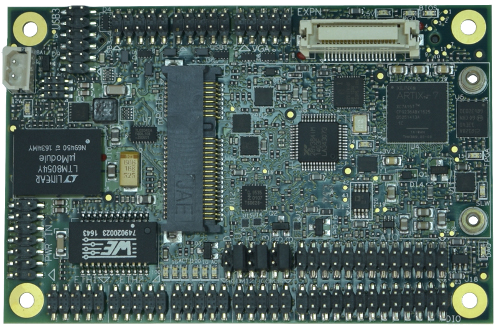

  • A carrier board providing the I/O transceivers and connectors, power supplies, and expansion sockets
  • A heat spreader with a flat exterior surface for direct mounting and heat transfer to the system enclosure

This layered architecture offers the highest functional density for any given footprint. As a comparison, Zeta offers functionality and performance equivalent to Diamond’s top-selling Aries SBC at just 40% of the size.

Zeta currently supports three processor options:
  • Intel Bay Trail E3825 1.33GHz Dual Core CPU with 2GB RAM
  • Apollo Lake E3940 1.6GHz quad core CPU with 4GB RAM
  • Apollo Lake N4200 1.1GHz (burstable to 2.5GHz) Quad Core CPU with 8GB RAM

Zeta’s small size and high feature density make it an ideal choice for mobile applications. It stands ready to meet the challenges of these environments with a wide range 6-36VDC input voltage, a −40 to +85°C operating temperature range, and fanless heat spreader cooling (heat sink options are available).

Benefits of COM-based SBCs

The use of interchangeable industry-standard CPU modules on Zeta offers two important system designer benefits:
  • Performance scalability: One can design multiple applications based on a consistent hardware platform and select the CPU that best fits the price / performance / power requirements of each one. In addition, as time goes on and your application needs more horsepower to support increased functionality, you can simply upgrade to a newer CPU with minimal to no redesign effort.
  • Long product life: The majority of today’s x86 embedded processors offer limited lifecycles of 5-7 years, so any long-life product dependent on an x86 single-board computer (SBC) is likely to require redesign sometime during its lifecycle. Using industry-standard COMs lets you easily migrate to a new generation CPU module in the exact same form factor and containing the same feature set, with virtually no hardware or physical redesign efforts. Zeta is ideal for long-life applications such as Military, Medical, and Transportation.

Technical specifications

Core CPU Features

Processor/memory options Intel Bay Trail E3825 1.33GHz Dual Core CPU with 2GB RAM
Apollo Lake E3940 1.6GHz quad core CPU with 4GB RAM
Apollo Lake N4200 1.1GHz (burstable to 2.5GHz) Quad Core CPU with 8GB RAM

System I/O Interfaces

Serial Ports 4 RS-232/422/485 ports
USB 1x USB 3.0; 4 x USB 2.0
Networking 2 Gigabit Ethernet ports
Keyboard/Mouse USB keyboard/mouse
Display VGA and LVDS
Audio HDA audio on expansion connector
Watchdog timer Reset mode; Programmable interval 0-255 seconds
Mass Storage 1 Mini PCIe /mSATA socket; 1 Micro-SD socket

Data Acquisition Features

Analog Inputs 16 Single-Ended / 8 Differential voltage inputs
Input ranges +/-10V, +/-5V, 0-10V, 0-5V
Maximum Sample Rate 100,000 samples/sec aggregate
On-board FIFO 2048 samples, programmable threshold
DAQ Calibration No calibration required
Analog Outputs 4 16-bit voltage outputs
Output ranges 0-5V, 0-2.5V programmable
A Model Digital I/O 27 lines independently programmable
D Model Digital I/O 16 lines independently programmable for input/output
PWM 4 24-bit pulse width modulators
Counter / timers 8 32-bit counter/timers
Logic signal voltage levels 3.3V/5V logic levels jumper-selectable

Expansion Buses

MiniCard 1 socket combining PCIe x1, mSATA, and USB 2.0 interfaces
SATA 1 port on expansion connector
PCIe 2x PCIe x1 links on expansion connector
USB 1 USB 2.0 port on expansion connector

Physical and Mechanical

Power input 6V to 36V option
Cooling Heat spreader standard, no fan
Form Factor COM Express Mini Type 10
Dimensions 84 x 55mm / 3.3 x 2.2in
Weight 1.30 oz baseboard; TBD COM module; TBD SBC complete

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F)
RoHS Compliant
Model Description
ZETA-E3825-2GA E3825 1.33GHz CPU, 2GB RAM Data acquisition circuit
ZETA-E3825-2GD E3825 1.33GHz CPU, 2GB RAM Digital I/O circuit
ZETA-E3940-4GA E3940 1.6GHz CPU, 4GB RAM Data acquisition circuit
ZETA-E3940-4GD E3940 1.6GHz CPU, 4GB RAM Digital I/O circuit
ZETA-N4200-8GA N4200 1.1GHz CPU, 8GB RAM Data acquisition circuit
ZETA-N4200-8GD N4200 1.1GHz CPU, 8GB RAM Digital I/O circuit
