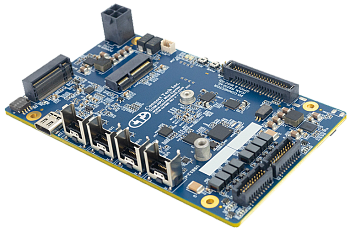

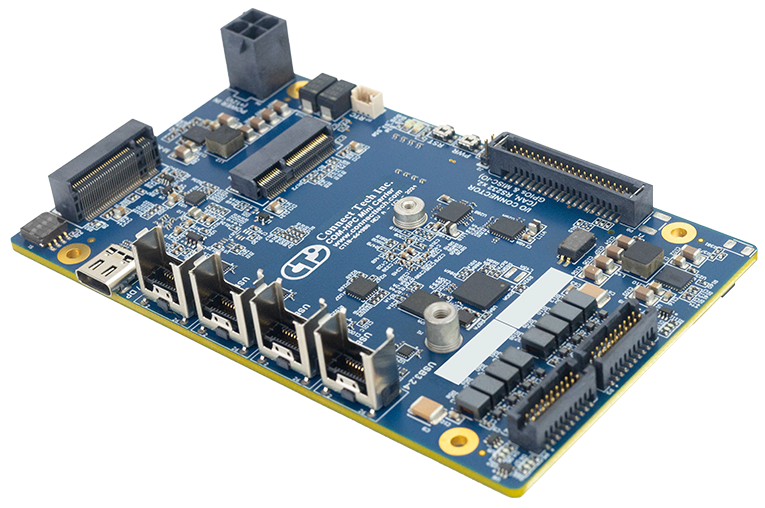

COM-HPC
Mini Carrier Board
Vendor:Connect Tech
- Details
- Specification
- Order information
- Secure rugged locking/latching connectors on all I/O ports
- 1x 2280 M.2 M-Key (PCIe x4, NVMe), 1x 2230 M.2 E-Key (WiFi/BT)
- 2x UART, 2x RS-232/RS-485, 1x I2C, 1x SPI, 1x CAN 2.0B
- 4x 2.5Gb Ethernet; 4x USB 3.2 Ports
The COM-HPC Mini Carrier Board features extensive connectivity options combined with high speed and ruggedized locking connectors.
Designed to support the latest COM-HPC Mini specification, the mini carrier board is a compact and versatile platform for high-performance computing applications. Optimize power management, minimize space and energy usage, and reduce development time with this scalable mini carrier board.
Enables seamless integration into edge computing, AI, and IoT environments. Commercial off-the-shelf solution that accelerates your time to market.
| Technical specifications | |
| Module Compatibility | COM-HPC Mini Compliant |
| USB |
4x USB 3.2 Ports (10Gbps Capable) Rugged Locking High-Speed Samtec ARF6 Connector |
| M.2 Expansion |
1x 2280 M.2 M-Key (PCIe x4, NVMe) 1x 2230 M.2 E-Key (WiFi/BT) |
| GPIO |
GPIOs 3.3V Input/Output Capable pins 1x 3.3V Power Pin at 1A |
| RTC | Implemented via 3-pin picoblade |
| Ethernet Connectivity | 4x 2.5 Gb Ethernet Ports |
| Display Output/USB4 |
1x DP/USB4 Port USB Type-C Connector |
| Serial Interfaces |
2x UART/CONSOLE 3.3V TTL 2x RS-232/RS-485 1x I2C Channel @ 3.3V IO 1x SPI Channel @ 3.3V IO 1x CAN 2.0B (non-isolated) |
| Input Power | +12V Only |
| Mechanical Details | 115mm x 70mm (4.528” x 2.756”) |
| Model | Description |
| HPC002 | COM-HPC Mini Carrier Board |
