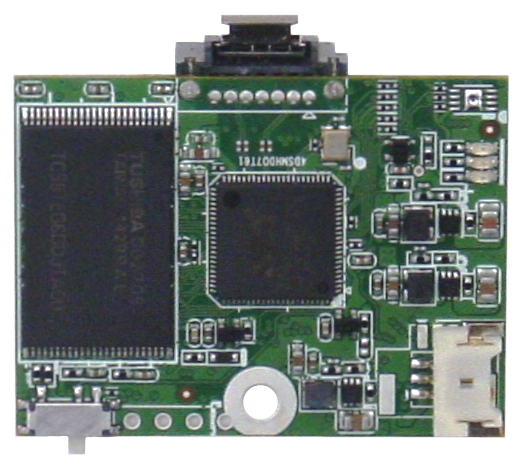

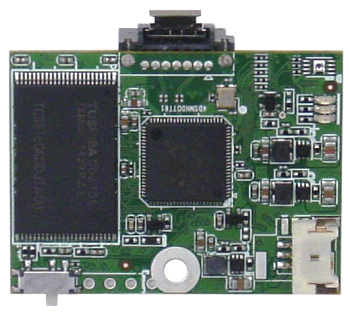

SATADOM Flashdisks

SATA Disk-on-Module Flashdisk Solid-State Storage - up to 256GB capacity!
  • Details
  • Order information
  • 32GB - 256GB
  • MLC and SLC versions
  • Rugged, vibration-proof design
  • Operating temperature: -40°C to +85°C

Install an MLC or SLC SATADOM Flashdisk module onto any of our Aries or Helix single board computers for rugged, lightweight, solid-state mass storage. The flashdisk module works just like a SATA disk drive and requires no drivers. It provides high-speed nonvolatile mass storage in capacities of 32GB to 256GB. The flashdisk mounts on a SATA disk-on-module connector and is held in place with two spacers and screws (included). It operates over −40ºC to +85ºC.

SATADOM flashdisk features:

  • SATA compatible interface
  • Single-level cell (SLC) flash modules for faster transfer speeds, lower power consumption, and higher cell endurance
  • Multi-level cell (MLC) flash modules for lower cost and higher storage density
  • Burst read/write of 300MB/s
  • Sustained read performance of up to 165MB/s (SLC), 155MB/s (MLC)
  • Sustained write performance of up to 150MB/s (SLC), 80MB/s (MLC)
  • Static wear-leveling scheme with dynamic block allocation increases life and optimizes performance
  • Built-in hardware ECC enables up to 16/24 bit correction per 1K bytes
  • Flash bad-block management
  • Self-Monitoring, Analysis and Reporting Technology (SMART)
  • Power failure management
  • ATA secure erase
  • TRIM enabled for improved performance
  • Supports boot function for Windows Embedded Standard 7, Windows Embedded CE, and Linux
  • Low power consumption:
    • MLC typical 475mA when active and 135mA in sleep mode
    • SLC typical 330mA when active and 95mA in sleep mode
  • Dimensions: 40.0×30.0×9.0mm
  • -40ºC to +85ºC operation
  • RoHS compliant

Model Description
FDSM-32G-XT 32GB SATA DOM MLC Flashdisk, Wide Temp
FDSM-64G-XT 64GB SATA DOM MLC Flashdisk, Wide Temp
FDSM-128G-XT Flashdisk, SATA DOM, 128GB, MLC, Pin 7 Vcc, Wide Temp
FDSM‑256G‑XT Flashdisk, SATA DOM, 256GB, MLC, Pin 7 Vcc, Wide Temp
FDSS-32G-XT 32GB SATA DOM SLC Flashdisk, Wide Temp
FDSS-64G-XT 64GB SATA DOM SLC Flashdisk, Wide Temp
