SabreNet
SabreNet Switches
Vendor:Diamond Systems Corporation
- Details
- Specification
- Order information
- Up to 24x 10/100/1000Mbps copper ports
- Up to 2x 10G Fiber ports
- Dust/moisture: IP67
- Operating temperature: -40°C to +85°C

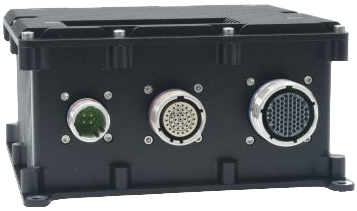

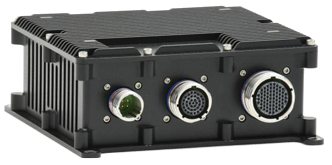

The SabreNet series of rugged Ethernet switches features multiple port counts and both copper and fiber technologies. Copper ports are triple speed 10/100/100 with auto-negotiation, auto MDI/MDIX, auto power-down of unused ports, jumbo frame capability, non-blocking wire speed performance, and a wide range of other important embedded features. Built-in configuration and control software provides Layer 2+ switch functionality. Standard connectivity is via MIL-DTL-38999 connectors with stainless steel finish (type 20K).
Customization capabilities include connector type and pinout, paint type and color, and compliance to MIL-STD-461, MIL-STD-704, and/or MIL-STD-1275.
| Technical specifications | |||
| Product | SabreNet 12000 | SabreNet 24000 | SabreNet 24G2X |
| 10/100/1000Mbps copper ports | 12 | 24 | 24 |
| 10G Fiber ports | 0 | 0 | 2 |
| Vin | 6-33VDC | 5-33VDC | 5-33VDC |
| Size | 6.4"W x 5.4"D x 2.6"H | 7.8"W x 6.9"D x 2.6"H | 7.8"W x 6.9"D x 2.6"H |
| Ethernet ports | Non-blocking wire-speed performance on all ports | ||
| Frame Buffer | Jumbo frame support at all speeds | ||
| VLAN | 8K MAC addresses and 4K VLANs (IEEE 802.1Q), as well as 8K IPv4 and IPv6 multicast group support | ||
| Link Aggregation | Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad) | ||
| Storm control | Multicast and broadcast storm control, as well as flooding control | ||
| RSTP | Rapid Spanning Tree protocol (RSTP) and MSTP | ||
| Remarking | Dual leaky bucket policers with remarking and statistics | ||
| Classifier |
8 priorities and 8 QoS queues per port with scheduling Shaping/policing per queue and per port |
||
| Protocols | Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X | ||
| Microcontroller | Built-in MIPS microcontroller for configuration and management | ||
| Serial | RS-232 serial port provides out-of-band management interface | ||
| Input voltage | Wide input voltage range: 6-33VDC | ||
| MIL standards compliance | MIL-STD-461, MIL-STD-1275, and MIL-STD-704 compatibility | ||
| Connectors | MIL-DTL-38999 Series III connectors | ||
|
Environmental and physical specifications |
|||
|---|---|---|---|
| Operating temperature | -40°C to +85°C | ||
| Shock and vibration | MIL-STD-810 shock and vibration rating | ||
| Dust/moisture | IP67 | ||
| Model | Description |
| SABRENET-12000-001 | Sabre Rugged Ethernet Switch, 12x 10/100/1000 Copper Ethernet Ports, Standard Config |
| SABRENET‑24000‑001 | Sabre Rugged Ethernet Switch, 24x 10/100/1000 Copper Ethernet Ports, Standard Config |
| SabreNet 24G2X | Sabre Rugged Ethernet Switch, 24x 10/100/1000 Copper Ethernet Ports, 2x 10G Fiber ports, Standard Config |
