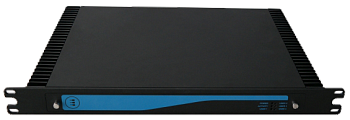

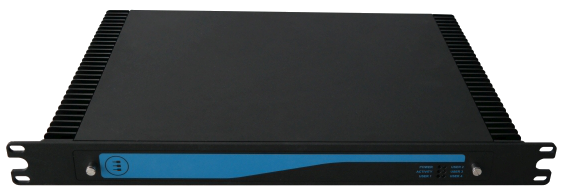

The BoltCOR 30-17 is a fanless EN50155 certified server that is designed to exceed the requirements of rolling stock applications in the Tx temperature class; it is extremely rugged and suitable for any project where consistent performance and reliability are a must.
With up to 32GB of ECC DDR4, soldered down CPUs, mSATA storage and an S2 class power supply, the BoltCOR 30-17 is extremely reliable; conformal coating, a vent-free design and a sturdy build add extra protection to a compact, 295mm deep, 1U rack-mount chassis.
Based on standard COM Express, it is available in a range of high performance configurations, including Intel 6th Gen Core i7, i5, Celeron and Xeon D 15xx CPUs, with a selection of cores (2 to 8) and frequencies (up to 2.8Ghz).
Expandability options include two HDD/SSD drives, key-locked swappable storage bays, internal mSATA, a user-accessible SD slot and RAID levels 0, 1, 10 and 5; additional peripherals can be added via 3 miniPCIe and one x16PCIe slot.
The BoltCOR 30-17 features a wide range of radio and wireless capabilities, including cellular carrier pre-certified system configurations. Customization options include internal and external global cellular modems, dual modem/dual SIM configurations, MIMO Wi-Fi, Bluetooth Low Energy, and a GPS with Dead Reckoning.
The BoltCOR 30-17 affords unprecedented system configurability: off-the-shelf configurations and build-to-order variants out of a palette of CPU, power supply, memory, storage and I/O subsystems options.
Designed for rolling stock applications, the BoltCOR 30-17 offers long term availability and support programs that ensure continuity of supply and customer service.
Technical specifications | |
Processor |
|
---|---|
Entry level | Celeron 3955U, 2.3GHz, Dual Core |
Standard | Core i7-6600U, 2.6GHz Core i5-6300U, 2.4GHz |
High End | Core i7-6822EQ, 2.0GHz Core i5-6442EQ, 1.9GHz |
Headless Server | Intel Xeon D-1519 1.5 GHz, Quad Core |
Memory |
|
Entry level | up to 16GB DDR3L 1600MHz |
Standard | up to 16GB DDR3L 1600MHz |
High End | up to 32GB DDR4 2133MHz |
Headless Server | 8GB DDR4 ECC down, up to 16GB DDR4 2400MHz |
Storage |
|
Embedded | up to 32GB SATA SSD (Factory Option) |
Default Population |
1x mSATA SSD 16GB, 1x SSD 256GB 2.5 (Entry level, Standard) 1x mSATA SSD 16GB, 1x SSD 256GB 2.5, 2x HDD 1TB 2.5 (High End) 1x mSATA SSD 16GB, 2x SSD 512GB 2.5 (Headless Server) |
SATA |
2x SATA III (Entry level) 3x SATA III (Standard) 4x SATA III (High End, Headless Server) |
Raid Support |
No (Entry level, Standard) Raid 0,1 (High End, Headless Server) |
Removable Bays |
No (Entry level, Standard) 2x 2.5" Tray with Key Lock (High End, Headless Server) |
Other | 1x SDHC/SDXC Card Slot UHS-1 50MB/s max |
I/O interfaces |
|
Ethernet | 2x 10/100/1000Gbps, X-coded Connector - Auto Sensing, IEEE 1588 |
USB | 2x USB 2.0 Host - Noise and Surge Protected |
Serial | 1x Serial Console TTL |
Video | 1x Mini Display Port |
SIM slot | 2x 2FF (mini) dual-SIM Slot for up to two Modems |
MiniPCIe Slots | 4x MiniPCIe Full/Half-Size |
Radio interfaces |
|
Cellular | Eurotech ReliaCELL 10-20 (carrier pre-certified) |
GPS | Eurotech ReliaCELL 10-20 (carrier pre-certified) |
Wi-Fi / BT | 802.11b/g/n + 4.0 BLE (Standard only) |
Antennas Diversity | 2X (Standard only) |
Other |
|
RTC | Yes, with SuperCAP (3 Months Retain) |
Ext. Watchdog | Yes |
EEPROM | 32KB |
TPM | 2.0 (Factory Option) |
Sensors | Temperature |
LEDs | 3x System (Power,SATA Activity, User Config.) |
Power |
|
Input | 24VDC or 110VDC isolated EN50155 S2 |
Software |
|
OS | Fedora Linux - Ubuntu Server - RHEL Server - Windows 10 |
IoT Framework | ESF Ready |
Environmental and physical specifications |
|
Operating Temperature | EN50155 Tx class (Entry level, Standard, High End) EN50155 T3 class (Headless Server) |
Storage Temperature | -40 to + 85°C |
Weight | <7Kg |
Certifications |
|
Regulatory | EN50155 - CE - FCC - EN45545 (Fire and Smoke) |
Safety | UL 60950 |
Environmental | RoHS2 - REACH |
Wi-Fi / BT Radio | RED |
Enclosure Protection | IP40 |
