ADLEPC-1600
Vendor:ADL Embedded Solutions
- Details
- Specification
- Order information
- Intel Atom E3800-3845 Quad, Intel Atom E3800-3827 Dual
- Up to 8GB DDR3L 1333MHz
- Dimensions: 1.6” x 6.4” x 4.8” (41mm x 162mm x 122mm)
- Extended operating temperature: -40°C to +70°C

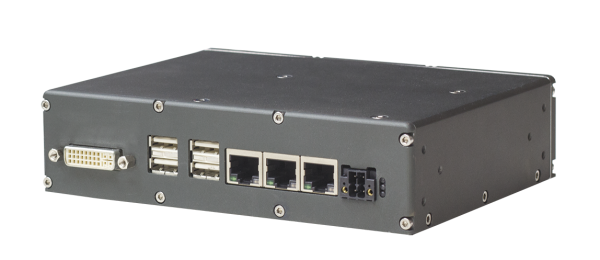

The ADLEPC-1600 is an IloT-Ready compact, fanless rugged embedded PC based on Intel’s E3800-series Atom processors with greatly improved performance-per-watt featuring Intel’s 7th generation graphics engine for stunning graphics performance. It features durable milled aluminum construction and targets rugged IoT applications in a variety of environments where high mechanical stress or temperature extremes (up to −40°C to +70°C) are needed.
The ADLEPC-1600 features LAN and 802.11 WiFi cloud connectivity and USB 2.0 and three Gb/s LAN ports making it ideal for deployment in rugged IoT applications such as network routing, IoT gateways, network appliances, and many other industrial computing needs. The ADLEPC-1600 can be readily configured by the customer with Windows, Linux or other operating systems as well as application—specific software for gateways, routers, or other IoT applications.
The ADLEPC-1600 brings the benefits of Industrial IoT (increased productivity, energy efficiencies and predictive failure analysis) to many rugged uses previously neglected. Targeted vertical markets include factory automation, transportation, alternative energy, oil and gas, and any demanding mobile computing applications in harsh environments.
| Technical specifications | |
| Processors |
Intel® Atom E3800-3845 Quad Intel Atom E3800-3827 Dual |
| Memory | Up to 8GB DDR3L 1333MHz |
| Video | DVI 1920x1080 @ 60Hz 24bpp; Supports VGA/CRT |
| Input / Output | 3x Gbit LAN Intel i210; 4x USB 2.0 |
| Expansion | 1x M.2 Key-B 2280 with 1x PCIex1 |
| On-board CMOS battery | Standard Temperature Only |
| Voltage Input | 20V - 30V |
| Dimensions | 1.6” x 6.4” x 4.8” (41mm x 162mm x 122mm) |
| Mounting | Din Rail; VESA 75x75 & 100x100; Bottom Mount |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | Standard: -20°C to +50°C; Optional -40°C to +70°C |
| Certification |
CE/FCC EMC Compliant; Safety by CB Scheme Microsoft Azure Certified for IoT |
| Model | Description |
| ADLEPC-1600-E3845 | Intel E3845; Quad-Core, 1.91 GHz, 2MB, - 20°C to 50°C; 4G DDR3-1333 |
| ADLEPC-1600-E3827 | Intel E3827; Dual-Core, 1.75 GHz, 1MB, -20°C to 50°C; 4GB DDR3-1333 |
| ADLEPC-1600-E3845EXT | Intel E3845; Quad-Core, 1.91 GHz, 2MB, - 40°C to 70°C; 4GB DDR3-1333** |
| ADLEPC‑1600‑E3827EXT | Intel E3827; Dual-Core, 1.75 GHz, 1MB, -40°C to 70°C; 4GB DDR3-1333 Ext.**Include: chamber screening, BGA underfill and extended temp memory |
| DDR3-DRAM4096 | 4GB DDR3-1333 |
| DDR3‑DRAM4096‑EX | 4GB DDR3-1333; Ext.Temp |
| M.2-mPCIe | 2280 Key B M.2 to mPCIe Adapter |
| ADLEPC-1600-PWR | 150W, 24V AC/DC Wall Adapter; Std Temperature |
| ADLEPC-1600-DIN | ADLEPC-1600 DIN Rail Mounting Kit |
| 802.11 WiFi | 802.11ac WiFi with external Antennas |
| M.2 SATA | M.2 Key-B 2242 SATA; MLC/SLC |
| 2.5” SATA | 2.5” SATA SSD (3Gbit/sec) |
